Symptom Chart

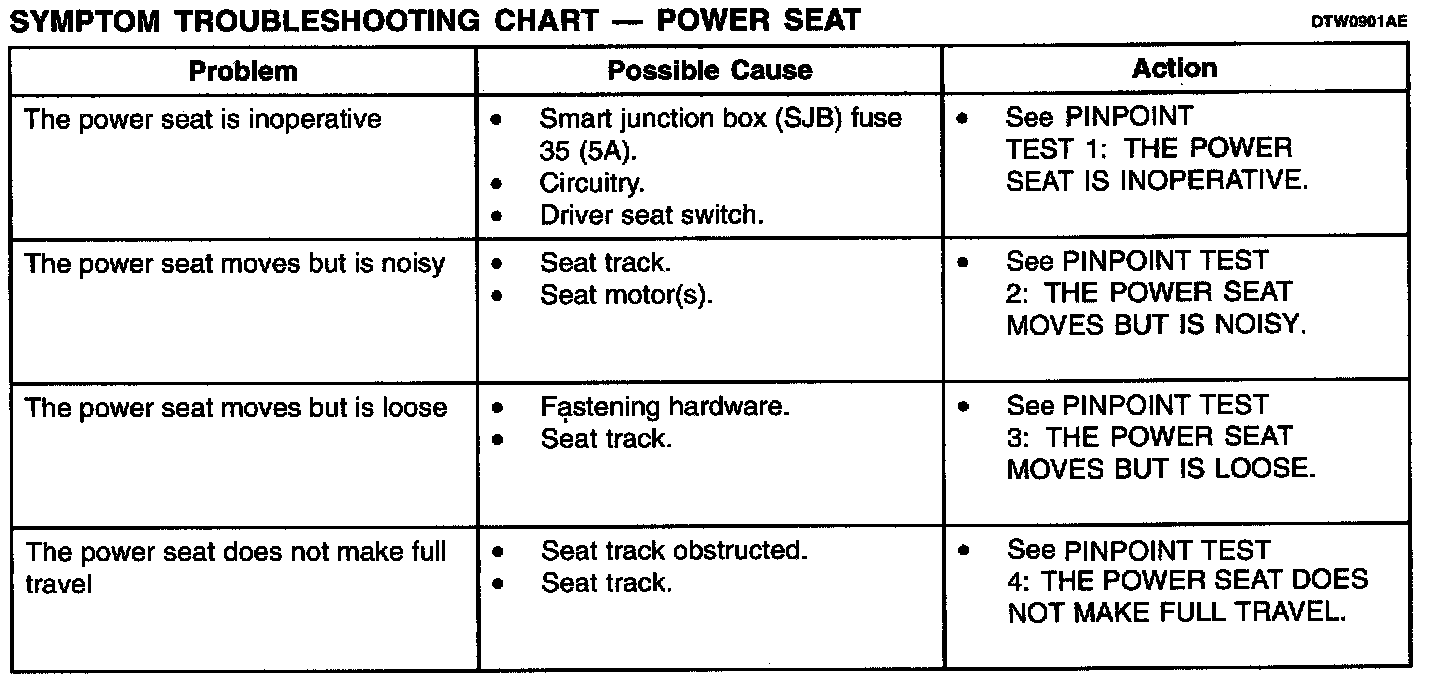

Symptom Troubleshooting Chart - Power Seat Part 1:

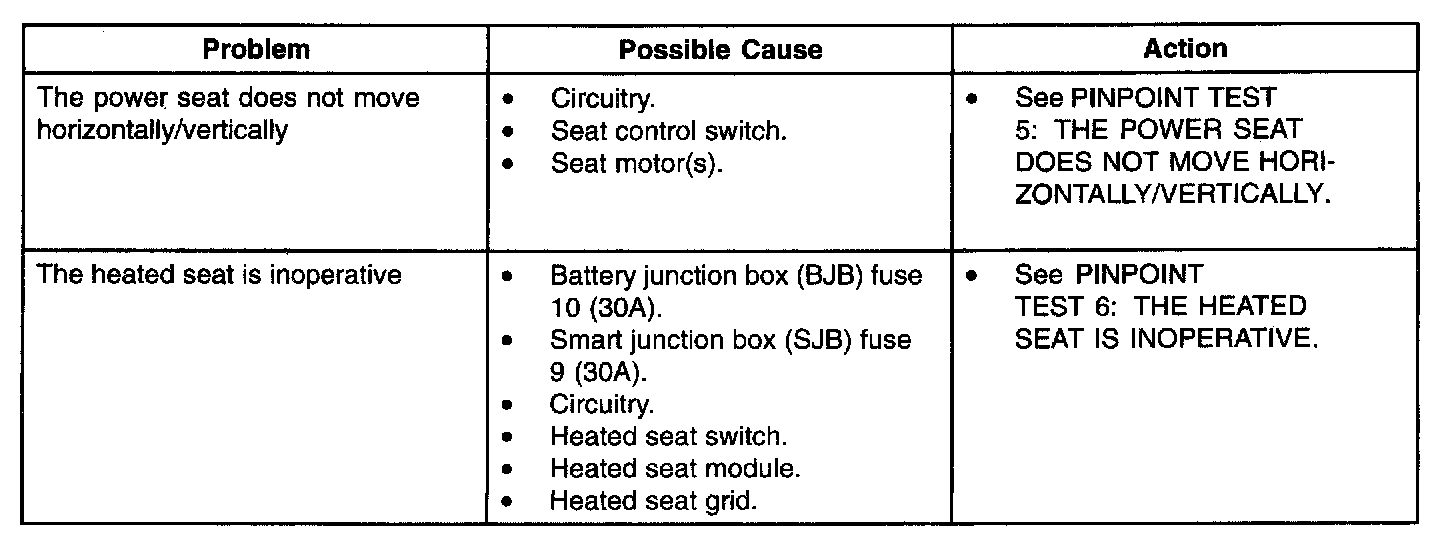

Symptom Troubleshooting Chart - Power Seat Part 2:
