Brake Caliper Anchor Plate

BRAKE CALIPER ANCHOR PLATE

Removal and Installation
1. Remove the front brake pads.

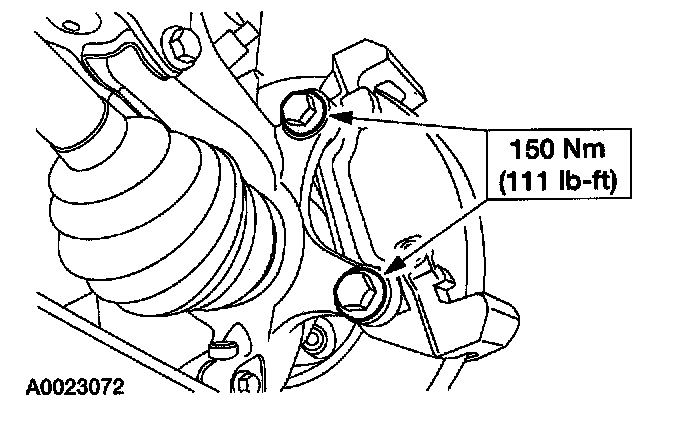

2. Remove the bolts and brake caliper anchor plate.
3. To install, reverse the removal procedure.
