Home
>>
Mazda
>>
2006
>>
Tribute 4WD L4-2.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Brake Fluid Level Sensor/Switch
>>
Locations
Brake Fluid Level Sensor/Switch: Locations

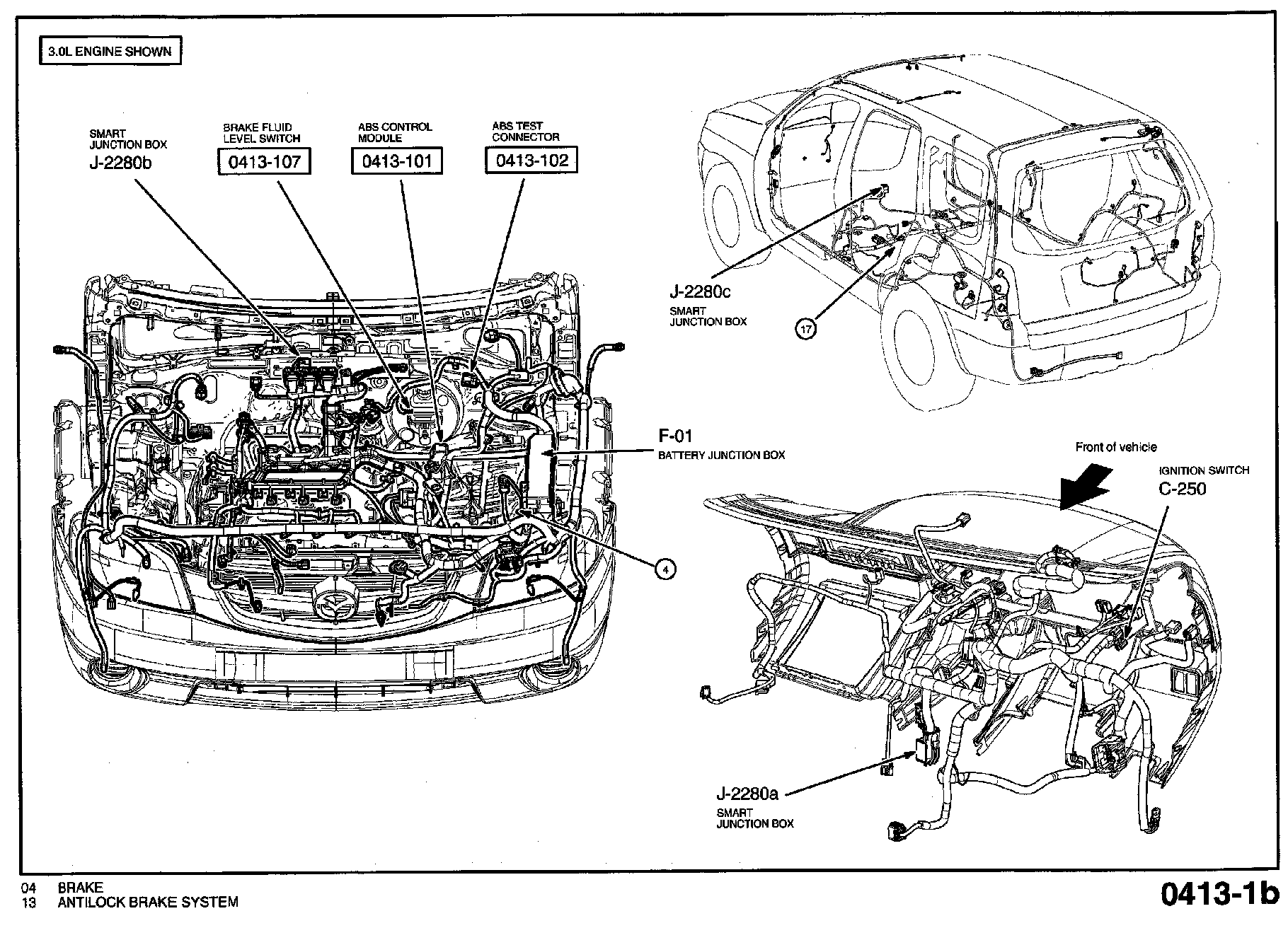

Routing View 0413-1b:

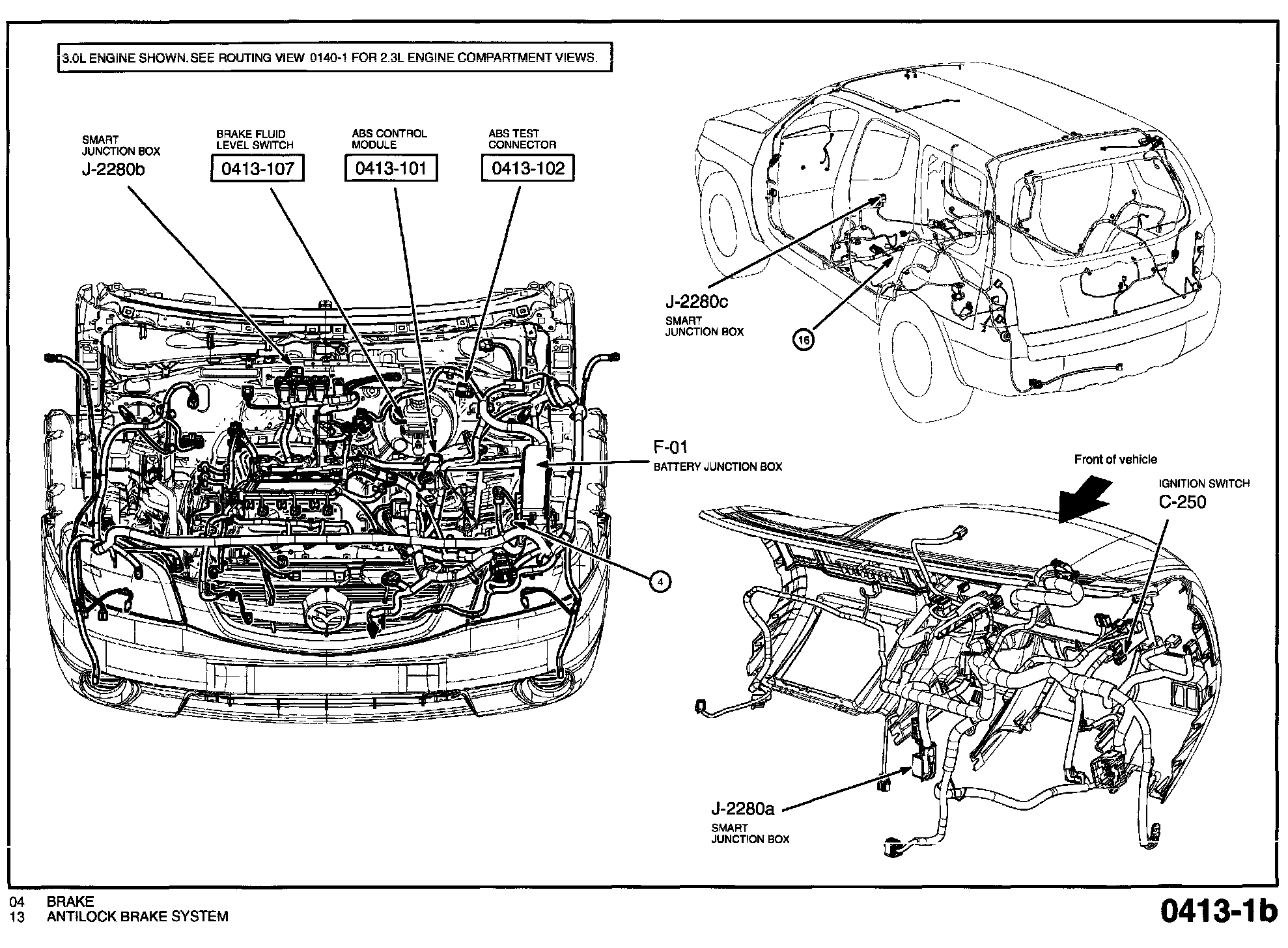

Routing View 01413-1b:
