Component Tests and General Diagnostics

BRAKE SYSTEM LEAK CHECK

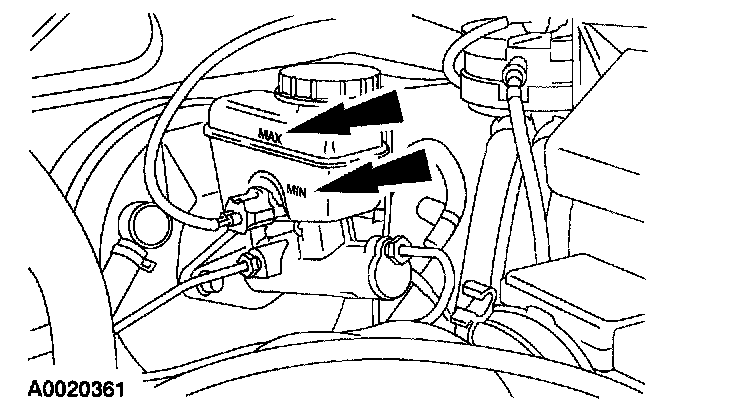

1. Check the brake fluid level. If the fluid level is below the MIN line on the brake master cylinder reservoir add the necessary amount of DOT 3 brake fluid.

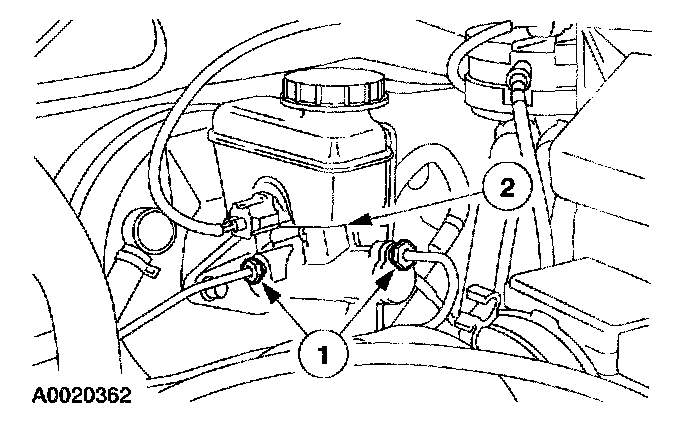

2. Inspect the (1) brake line nuts and the (2) brake master cylinder reservoir for fluid leaks.
3. Inspect the brake lines and hoses for fluid leaks.
4. Inspect the rear wheel cylinders for leaks.
5. Inspect the front disc brake calipers for leaks.
6. If a hydraulic leak is detected, repair or install a new component.
