Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2006
>>
Tribute 4WD L4-2.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Troubleshooting Chart
Symptom Troubleshooting Chart

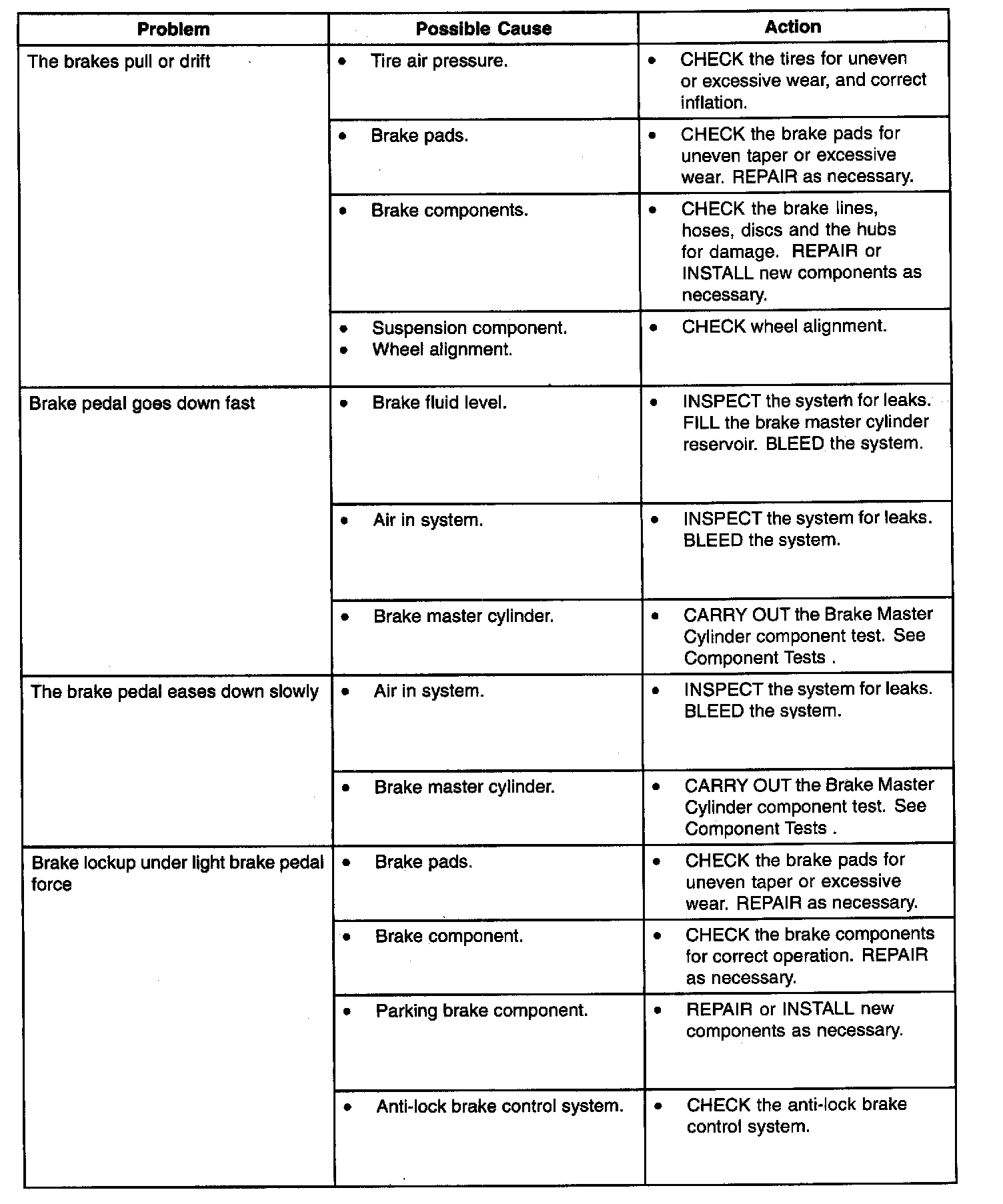

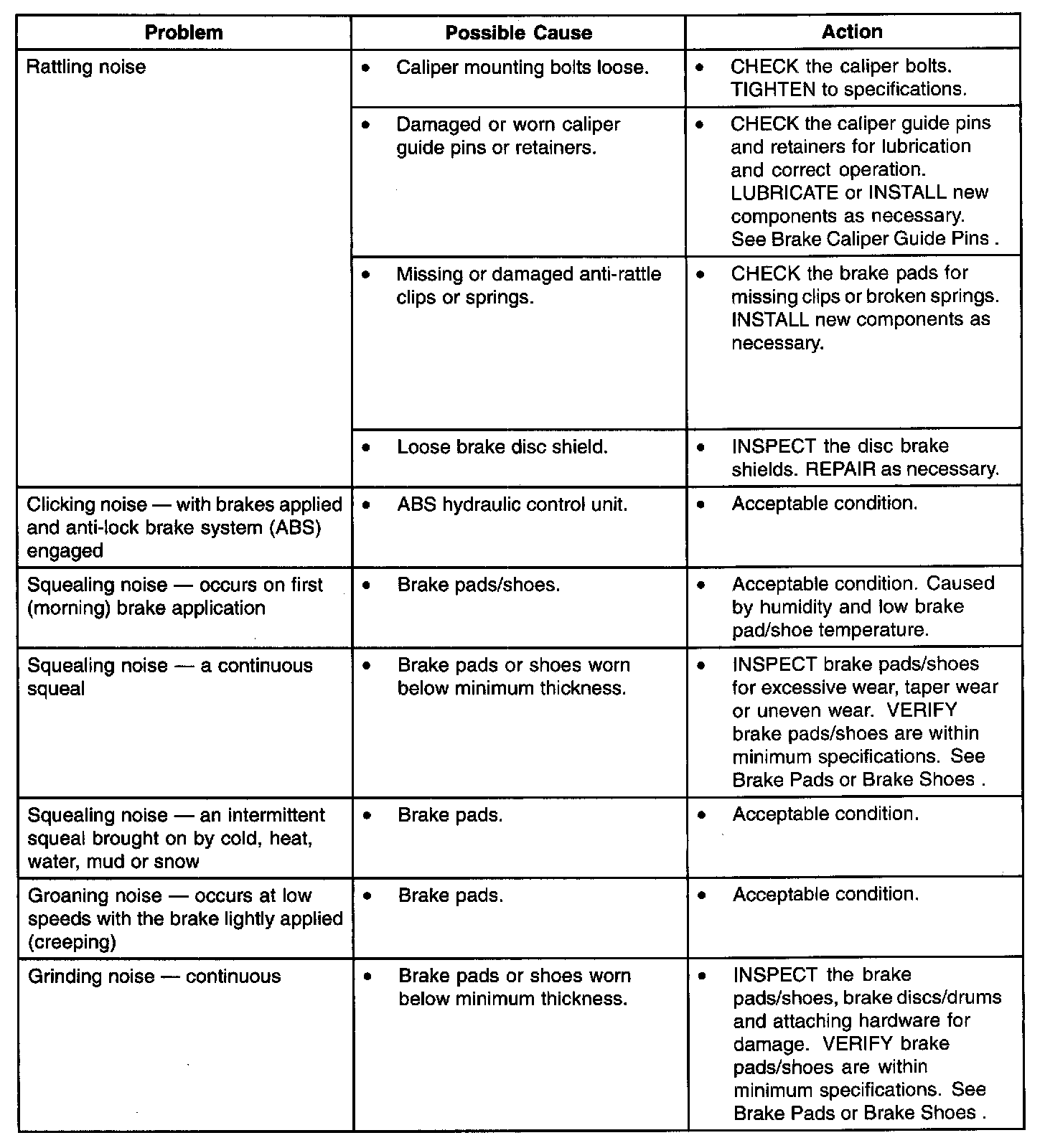

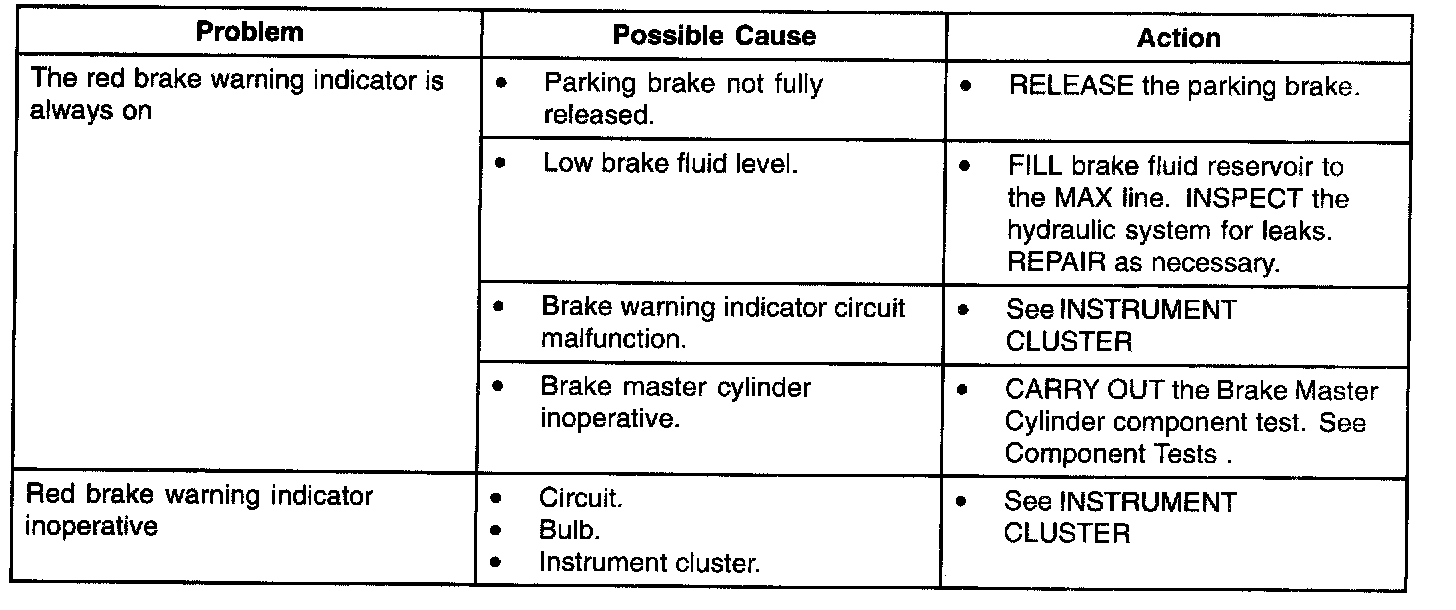

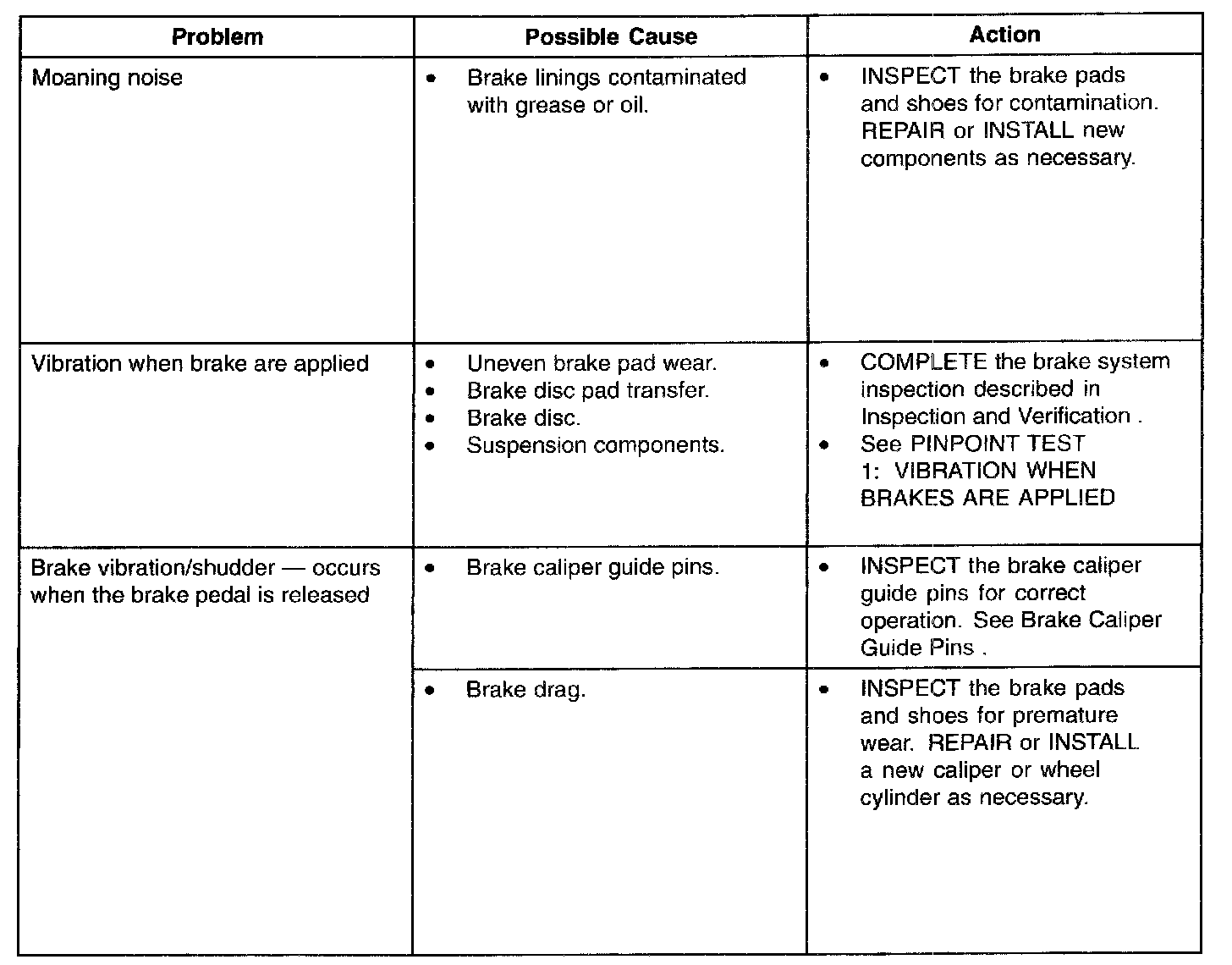

SYMPTOM TROUBLESHOOTING CHART
