Home >> Mazda >> 2006 >> Tribute 4WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C339 to C340

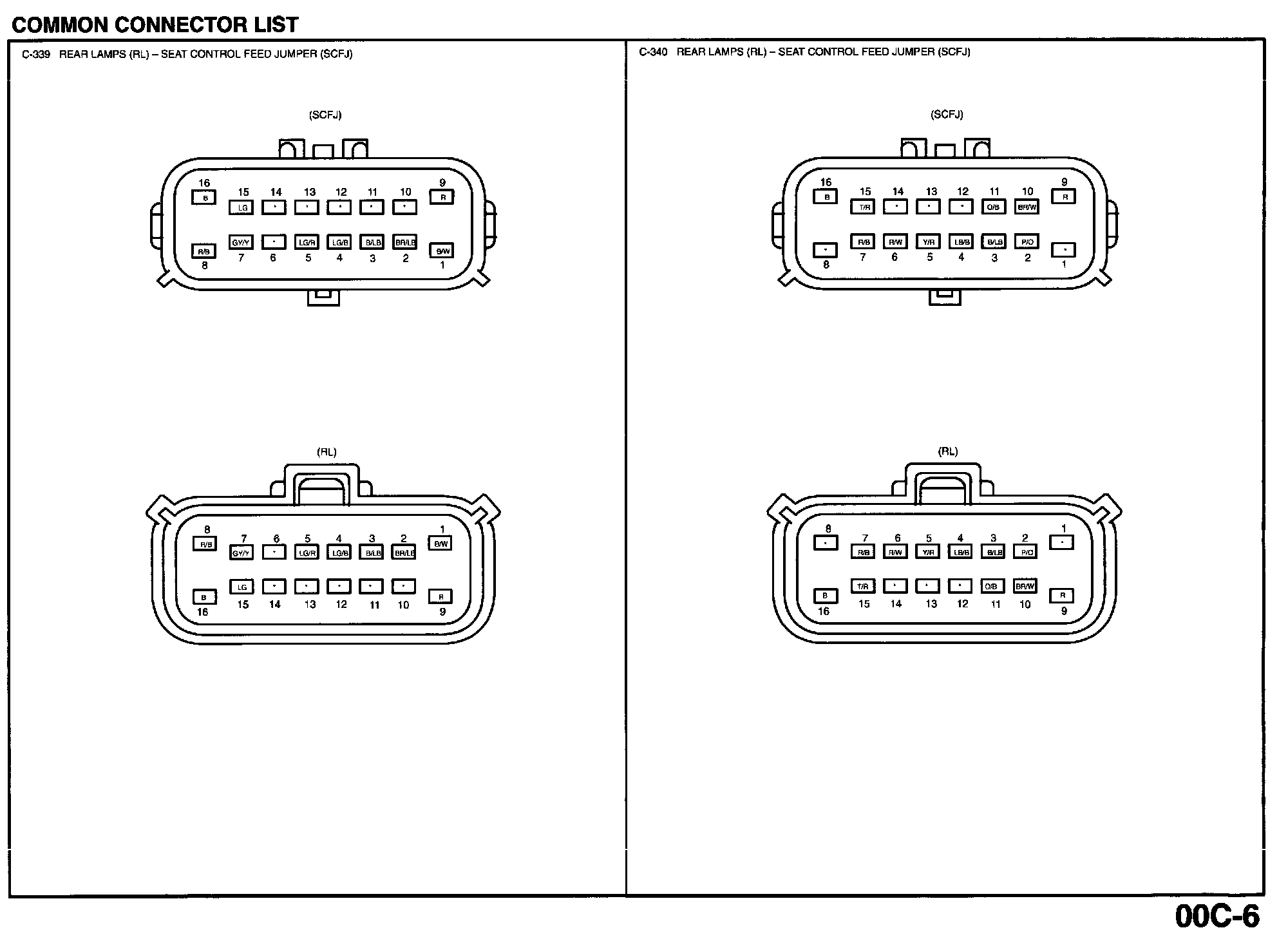

C339 to C340

C339 To C340:
