Radiator: Service and Repair

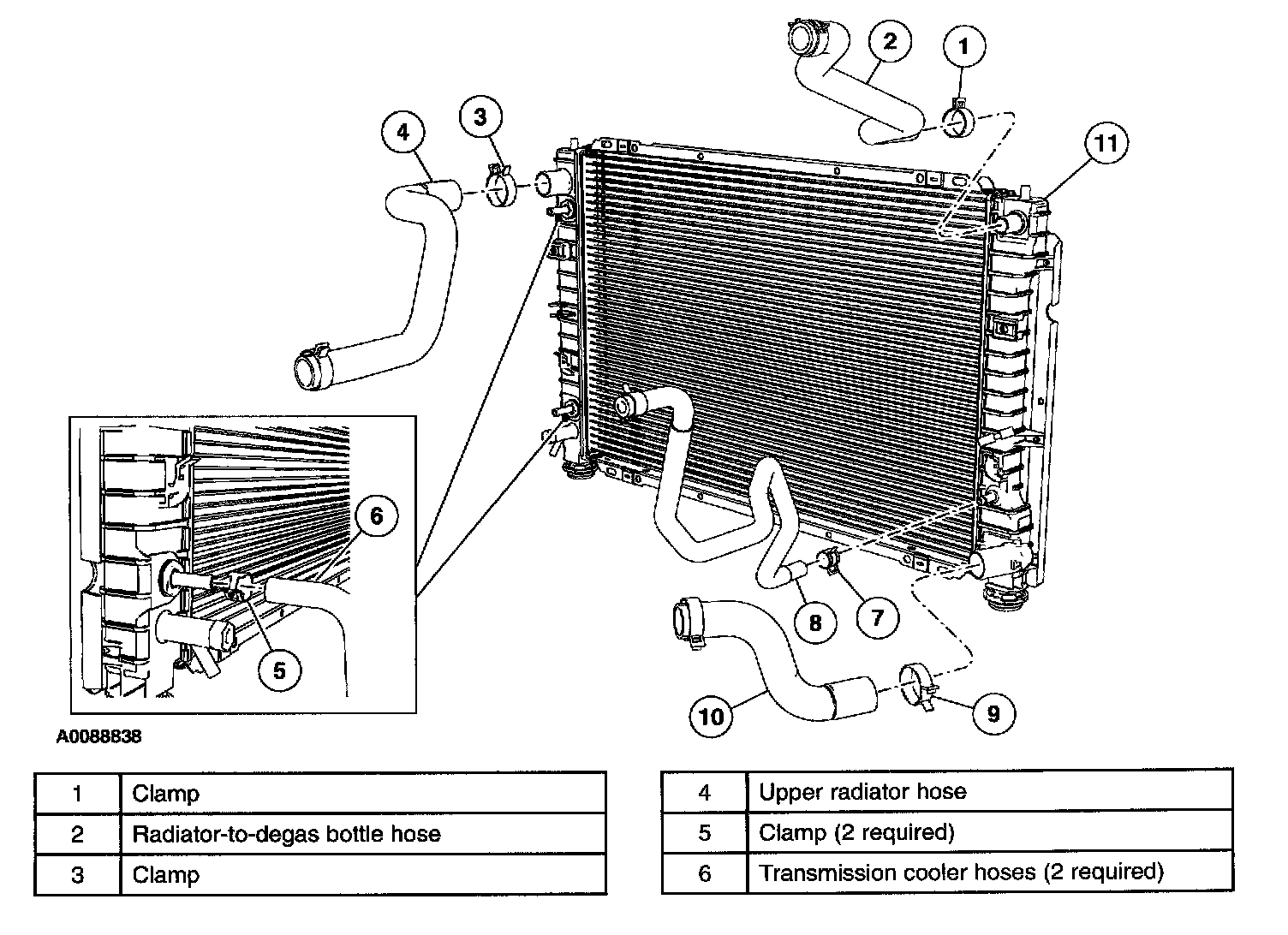

RADIATOR








Removal and Installation
1. Drain the engine cooling system.
2. Remove the cooling fans.
3. Remove the radiator.
^ Loosen the hose clamps, disconnect the hoses and position aside.
^ Remove the radiator.
4. To install, reverse the removal procedure.
