Home >> Mazda >> 2006 >> Tribute 4WD L4-2.3L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Intake Manifold >> Locations

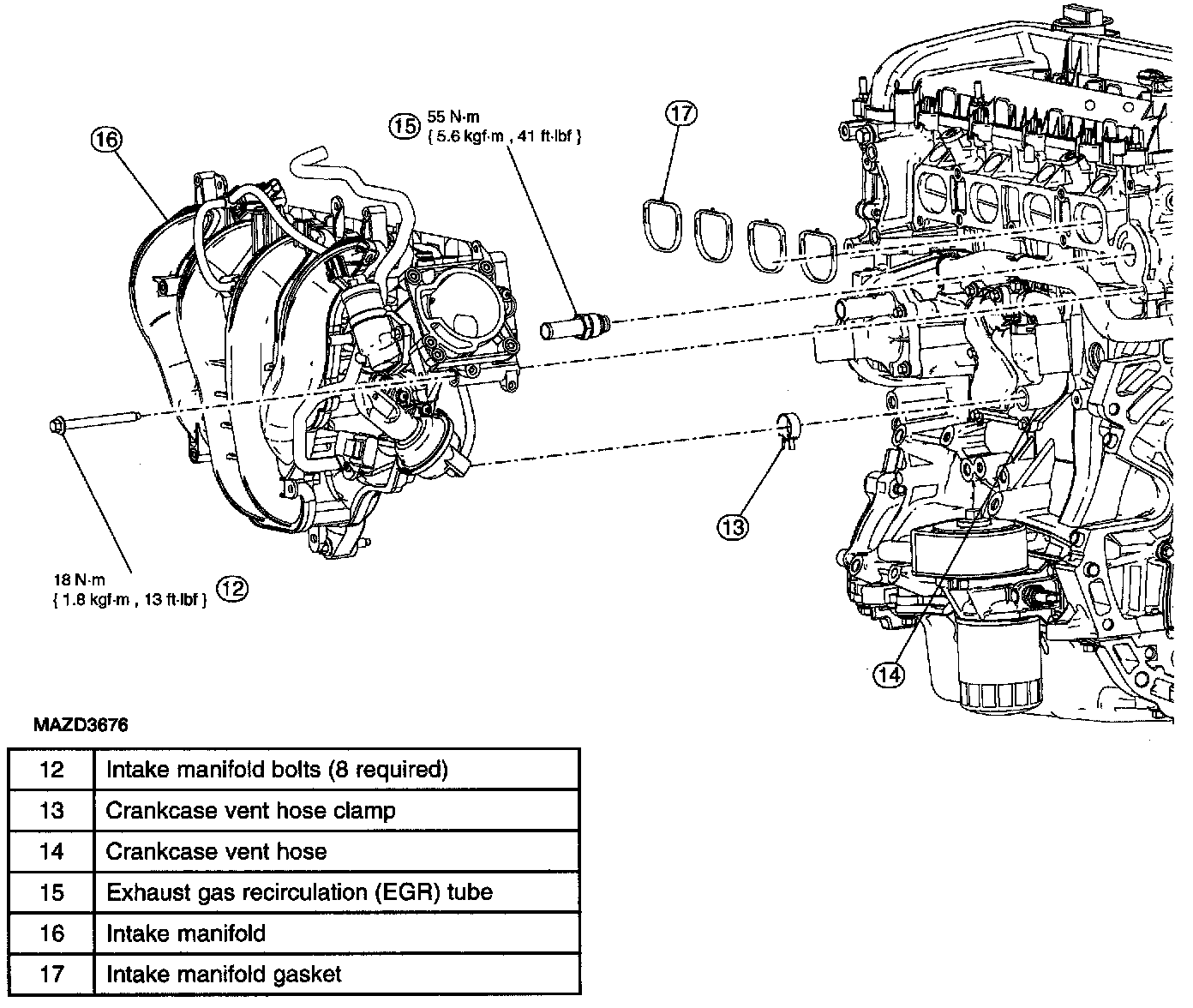

Intake Manifold: Locations

Intake Manifold Part 1:



Intake Manifold Part 2:
