Part 1

ENGINE

Caution:
^ During engine repair procedures, cleanliness is extremely important. Any foreign material, Including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

Caution:
^ The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if you loosen the pulley. Therefore, the engine must be retimed each time the damper is removed. Otherwise severe engine damage can occur.

Caution:
^ Due to the precision fit and timing of the balancer shaft assembly, it cannot be removed from the engine block.

Note:
^ See the exploded views under Description and Operation.

Vehicles with manual transaxle





Warning:
^ The clutch disc and clutch pressure plate are heavy and may fall if not held when the bolts are removed. Failure to follow these instructions may result in personal injury.

Caution:
^ Loosen the bolts evenly to prevent pressure plate damage.

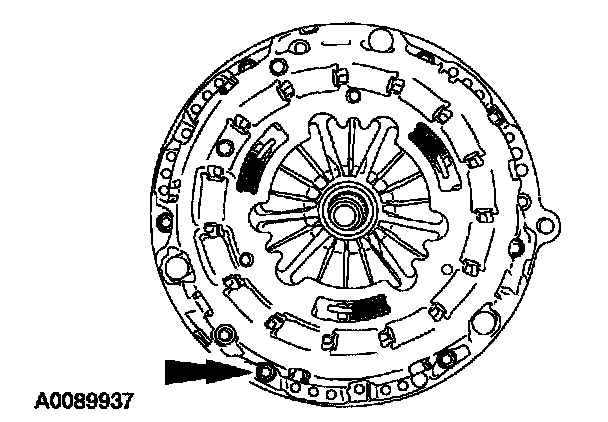

1. Remove the bolts, clutch pressure plate and clutch disc.





2. Remove the starter motor isolator.

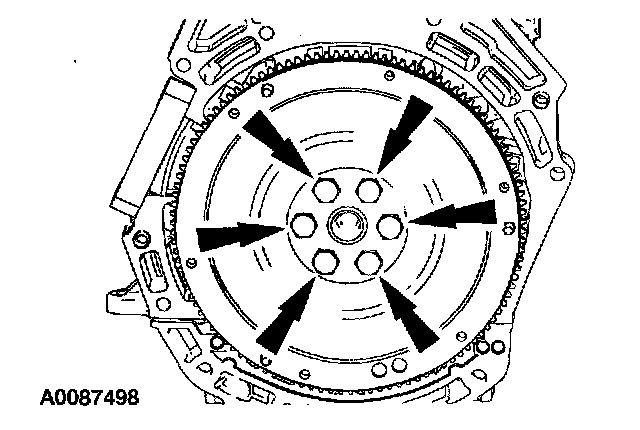

3. Remove the bolts and the flywheel.

Vehicles with automatic transaxle





1. Remove the bolts and the flexplate.

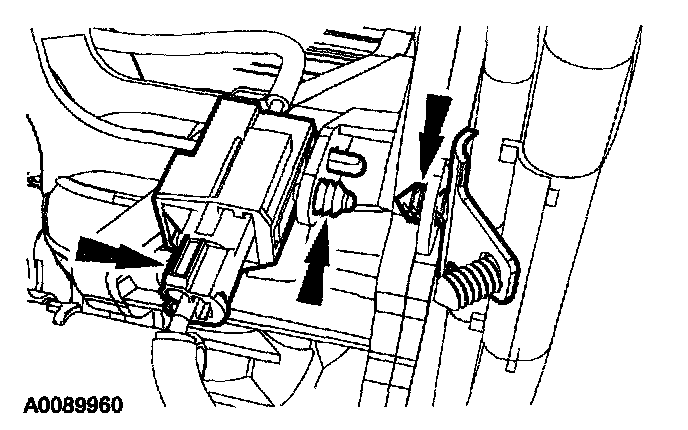

All vehicles
1. Mount the engine on a suitable stand.

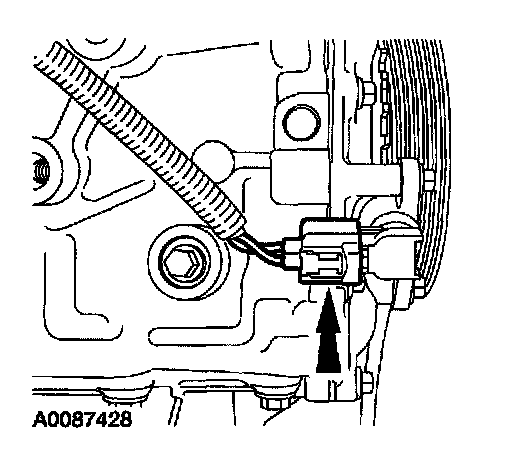

2. Disconnect the crankshaft position (CKP) sensor electrical connector.

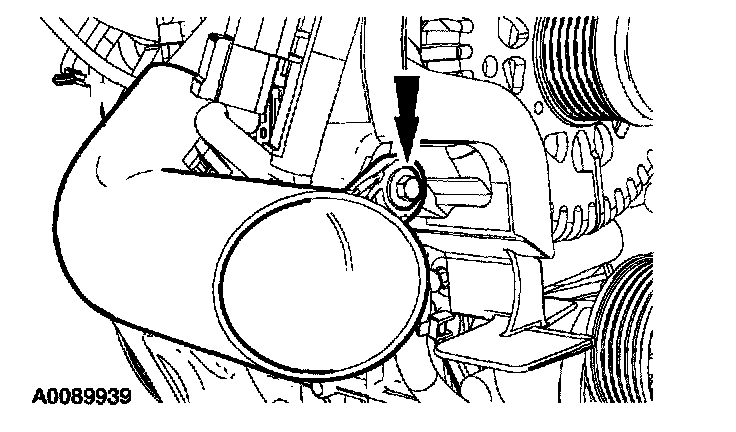

3. Remove the bolt and the generator cooling duct.





4. Remove the nut and disconnect the generator electrical connections.

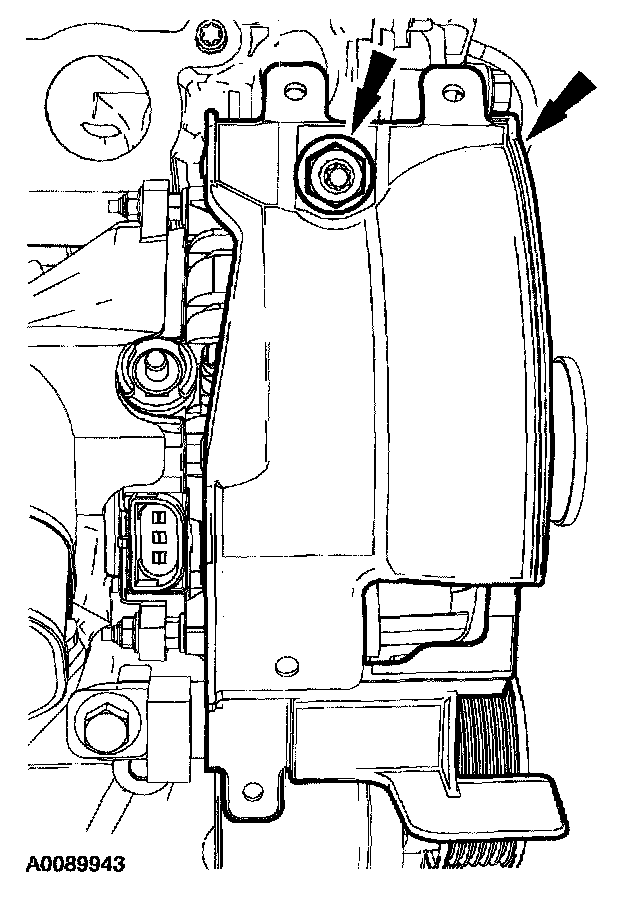

5. Remove the bolt and the generator cover.

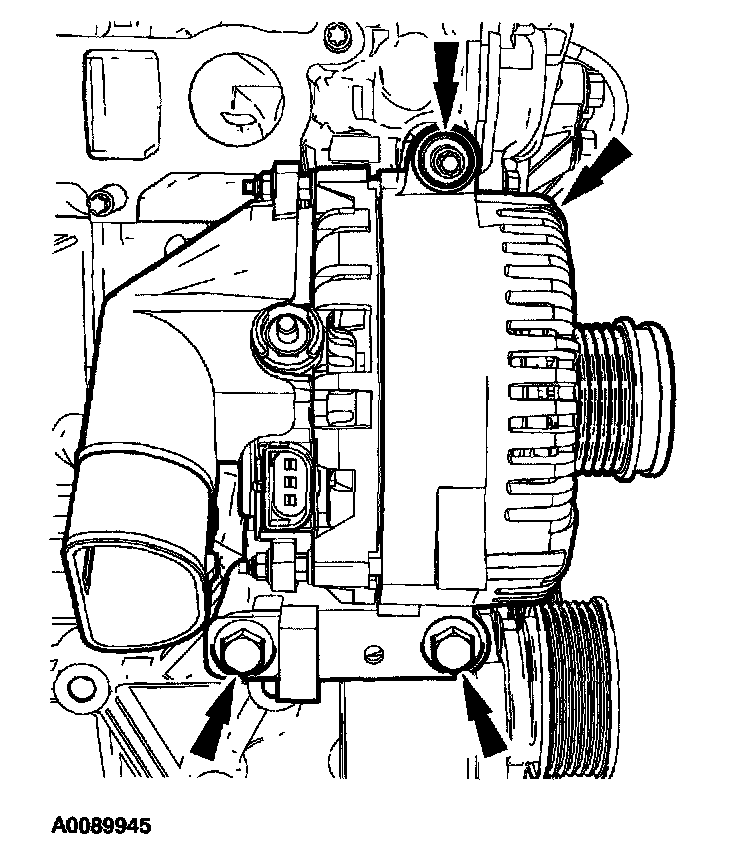

6. Remove the bolts and the generator.





7. Remove the bolts and the accessory drive belt tensioner.

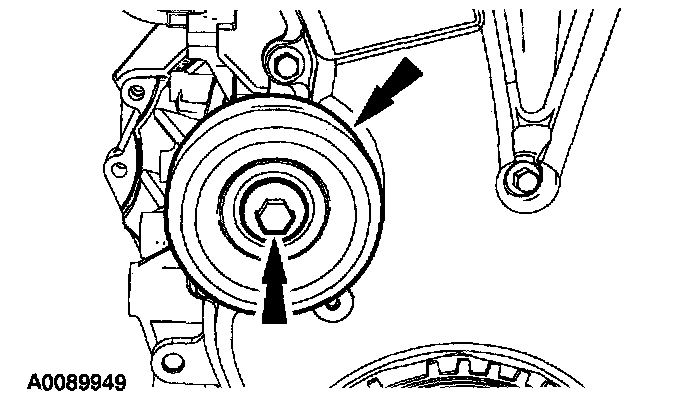

8. Loosen the bolt and remove the accessory drive belt idler pulley.

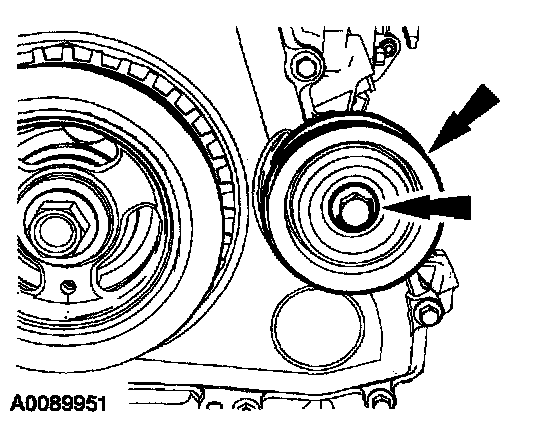

9. If equipped, loosen the bolt and remove the accessory drive belt idler pulley.

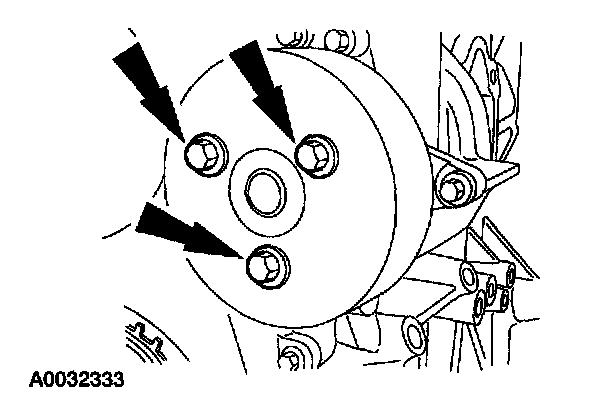

10. Remove the bolts and the coolant pump pulley.

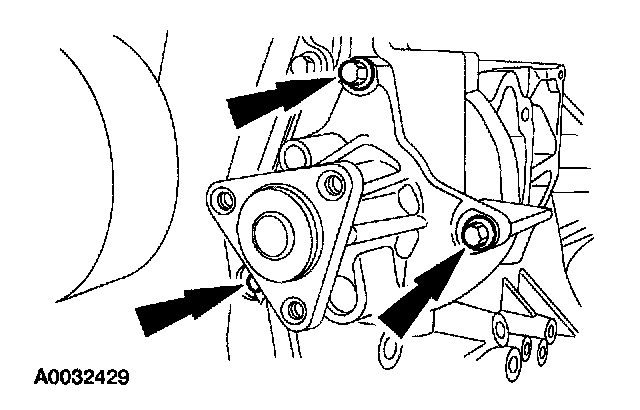

11. Remove the bolts and the coolant pump.

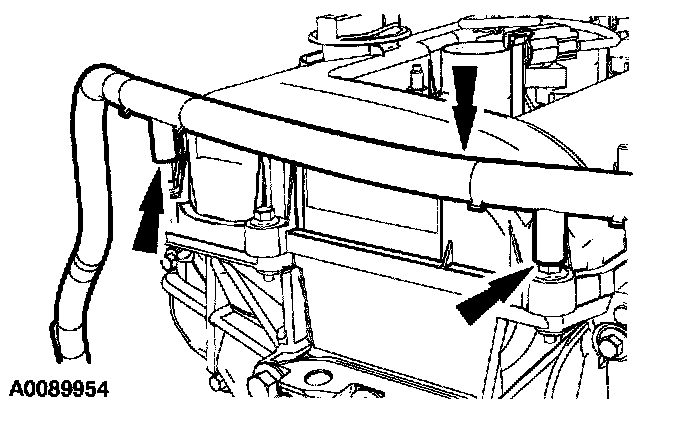

12. Remove the engine vacuum tube.
^ Detach the two engine vacuum tube retainers.
^ Disconnect and remove the engine vacuum tube.





13. Detach the two wiring harness retainers and position the harness aside.

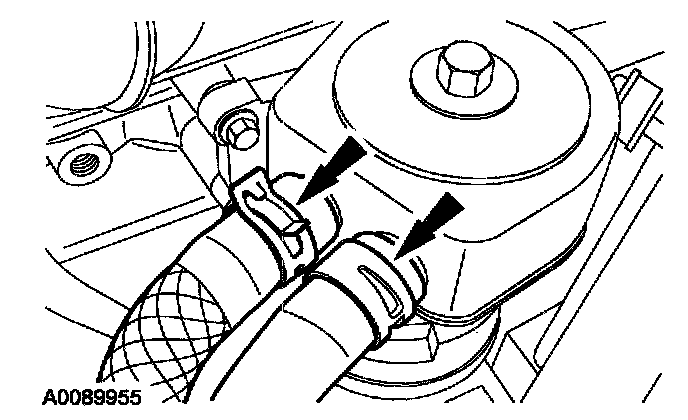

14. Disconnect the oil cooler hoses.

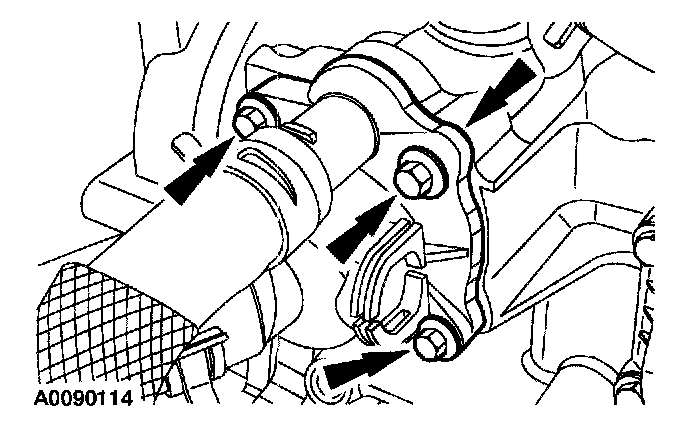

15. Remove the bolts and the thermostat housing assembly.

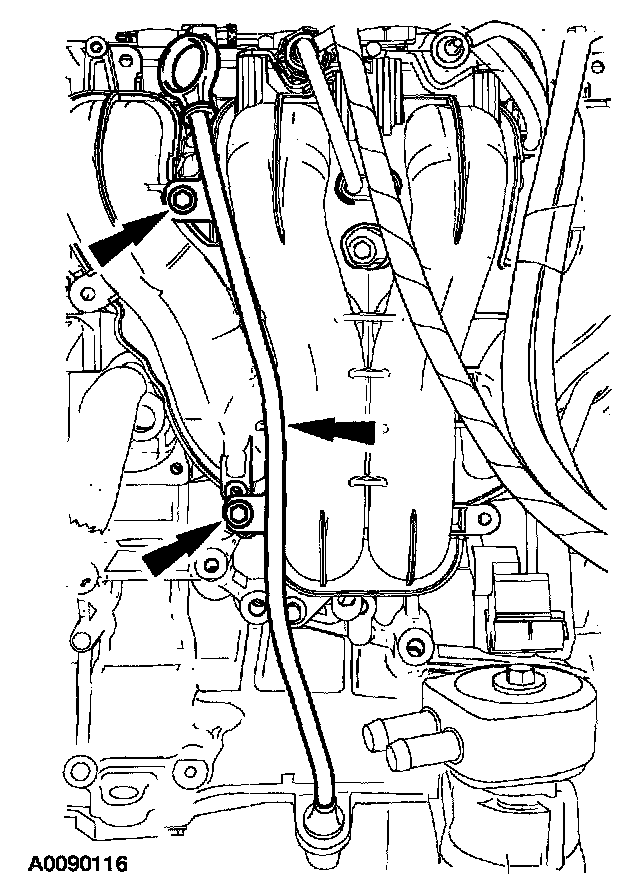

16. Remove the bolts and the oil level indicator.

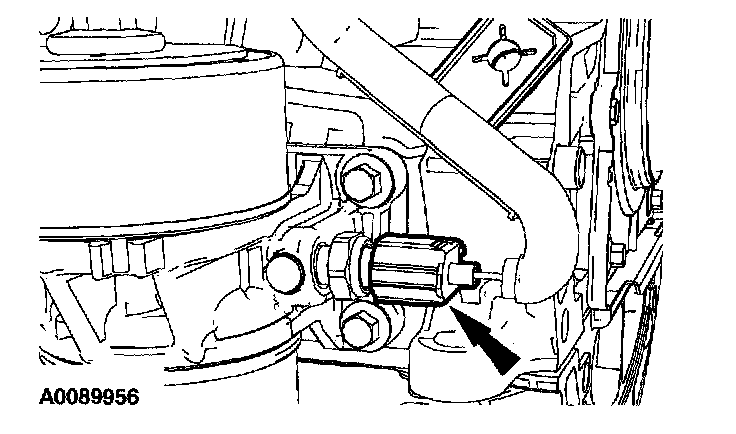

17. Disconnect the oil pressure sensor electrical connector.





18. Remove the bolts and the oil filter adapter.
^ Discard the gasket.

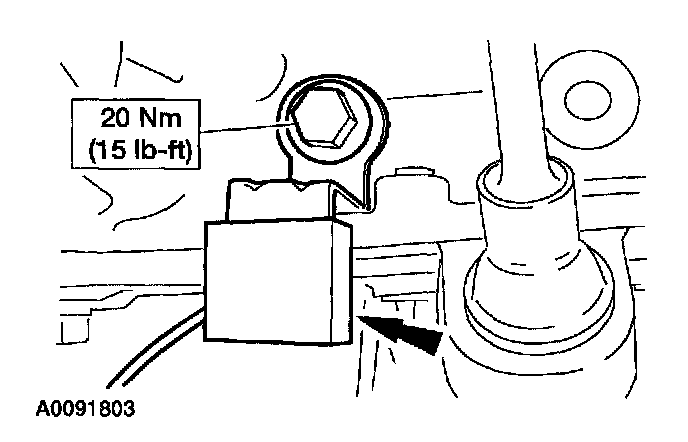

19. It equipped, remove the bolt and capacitor.





20. Detach the two wiring harness retainers.





21. Disconnect the knock sensor (KS) and detach the two wiring harness retainers.

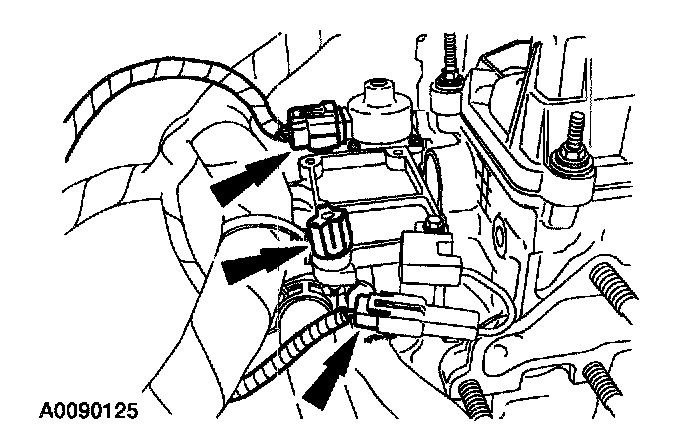

22. Disconnect the temperature manifold absolute pressure (TMAP) electrical connector.





23. Disconnect the idle air control (IAC) motor electrical connector.





24. Disconnect the swirl control valve electrical connector.

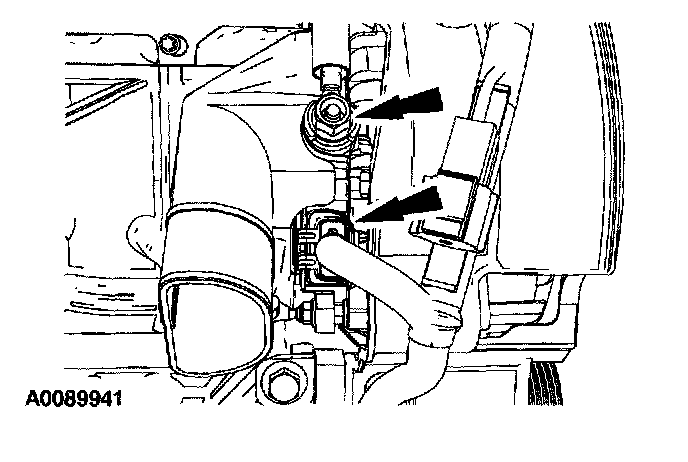

25. Disconnect the fuel rail pressure and temperature sensor electrical connector and vacuum tube.

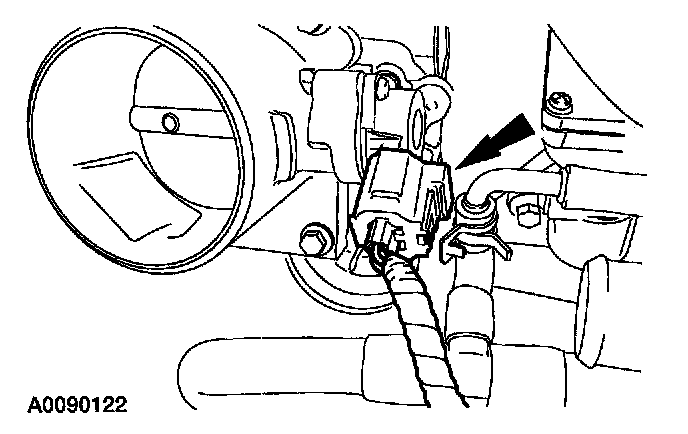

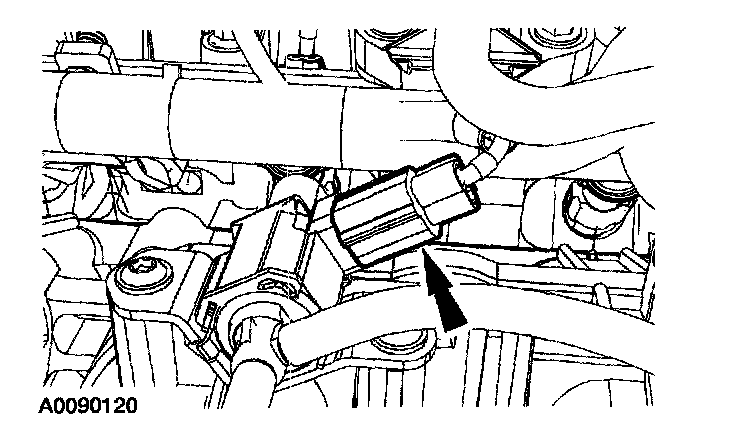

26. Disconnect the throttle position (TP) sensor electrical connector.





Note:
^ There are three different size bolts used. Mark the location of the bolts to ensure installation in the correct locations.

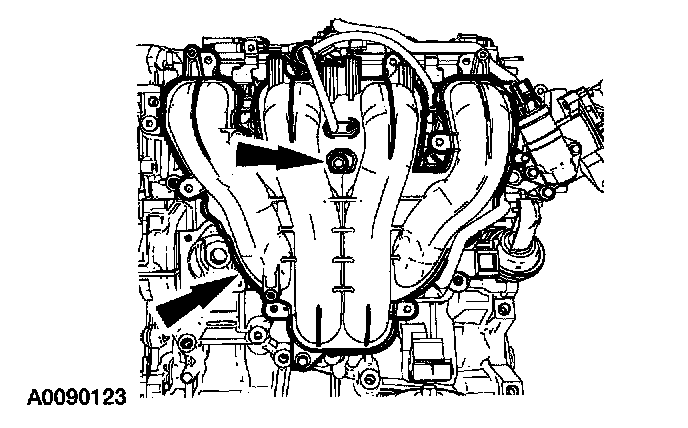

27. Remove the bolts and position the intake manifold aside.





28. Disconnect the positive crankcase ventilation (PCV) hose and remove the intake manifold.

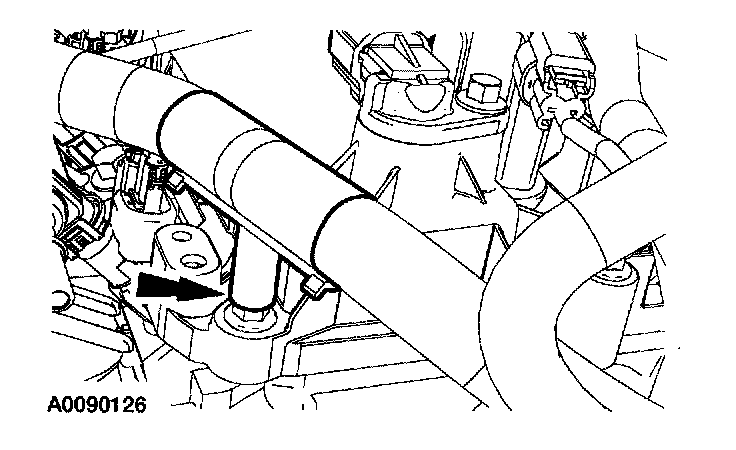

29. Remove the exhaust gas recirculation (EGR) tube.

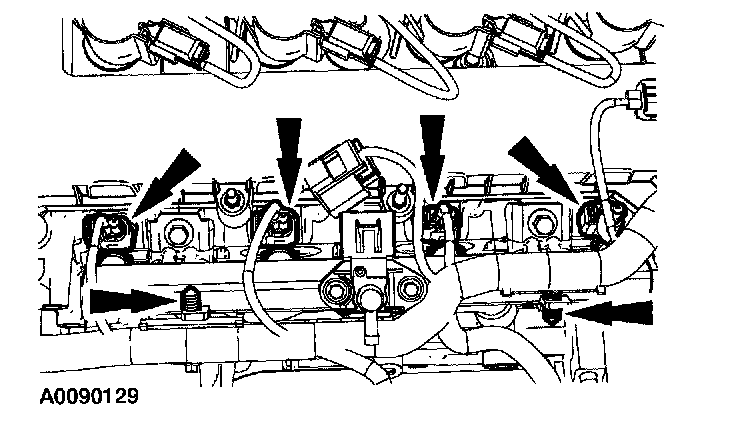

30. Disconnect the four fuel injector electrical connectors. Detach the two wiring harness retainers.

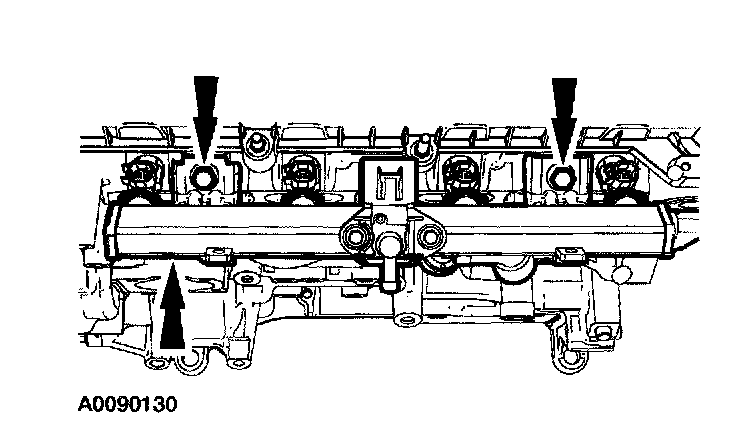

31. Remove the bolts and the fuel rail with the fuel injectors.

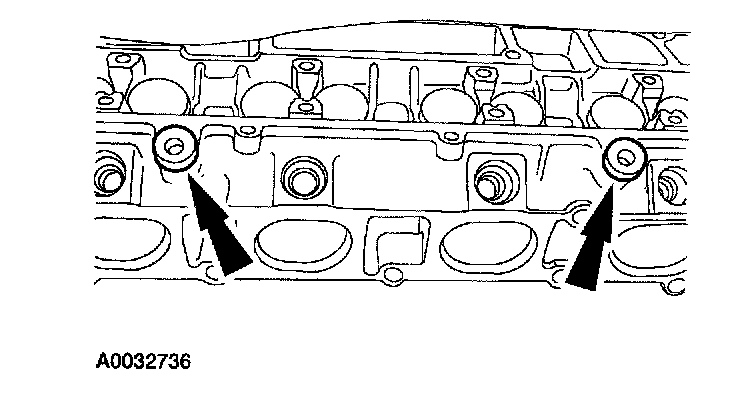

32. Remove the fuel rail spacers.





33. Detach the wiring harness retainer.

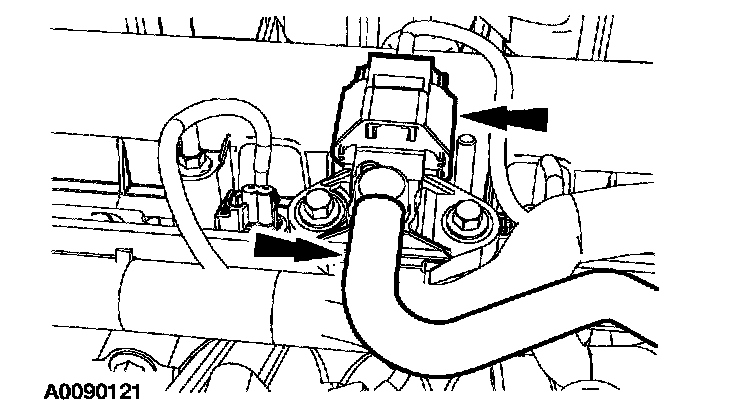

34. Disconnect the EGR valve and radio interference capacitor electrical connectors. Detach the wiring harness retainer.





35. Disconnect the coil-on-plug and camshaft position (CMP) sensor electrical connectors.





36. Detach the wiring harness retainer.

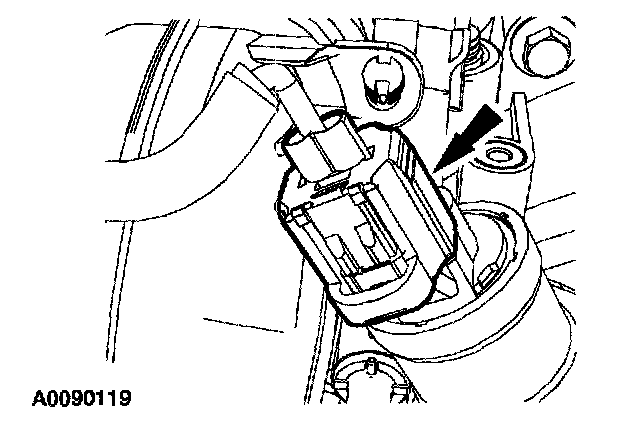

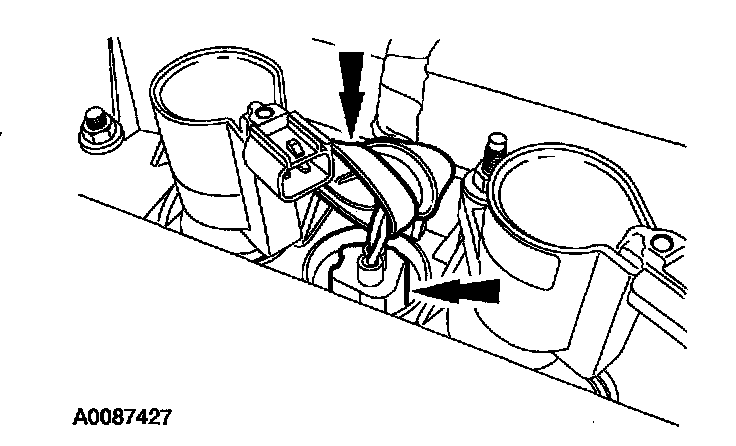

37. Position the rubber boot aside and disconnect the cylinder head temperature (CHT) sensor electrical connector. Remove the wiring harness from the engine.

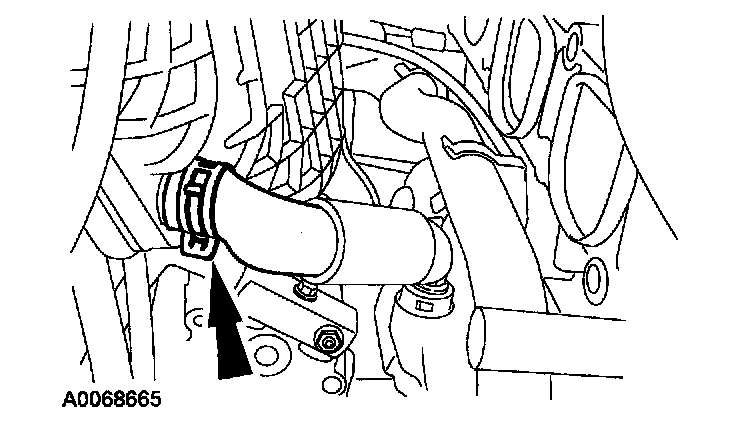

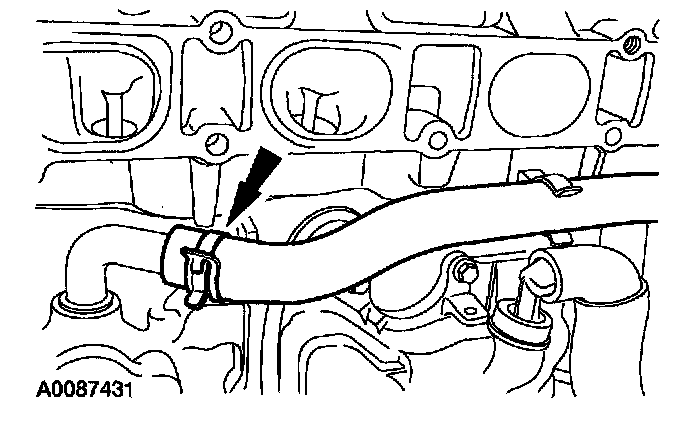

38. Disconnect the coolant hose.





39. Disconnect and remove the coolant hose.





40. Disconnect and remove the coolant hoses.

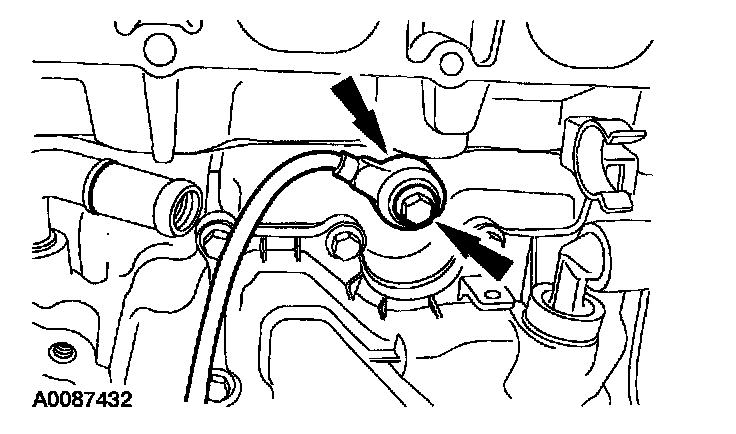

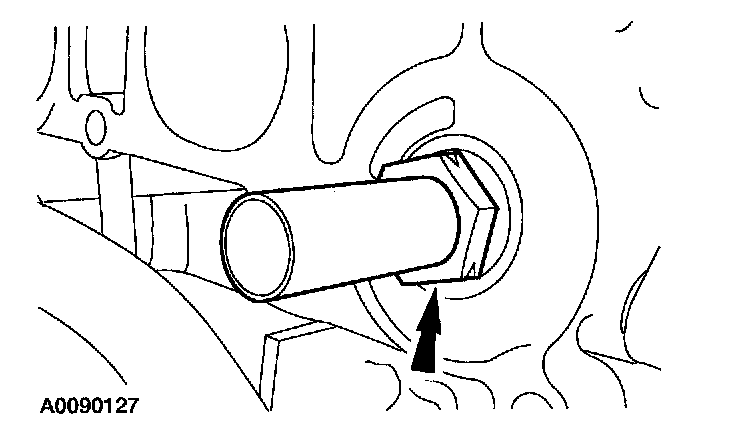

41. Remove the bolt and the KS.
