Center Register Duct

CENTER REGISTER DUCT

Removal and Installation

1. Remove the defroster duct.

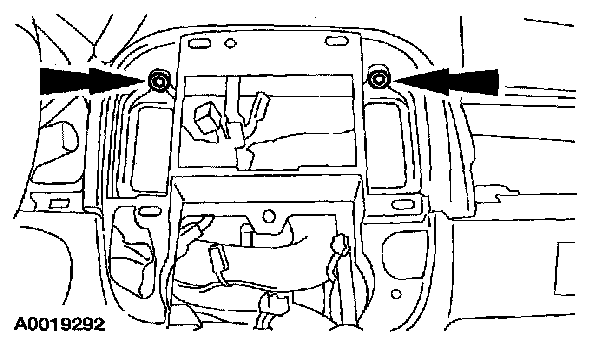

2. Remove the screws from the front side of the instrument panel.

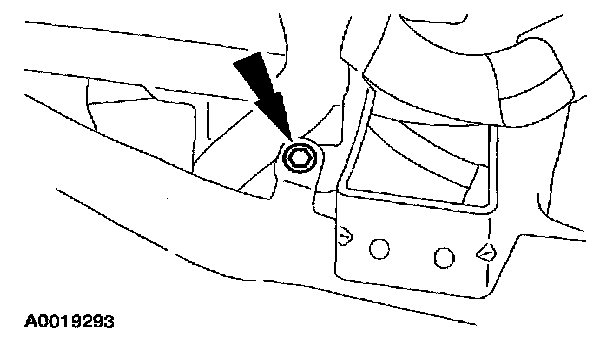

3. Remove the screw for the left vent duct.

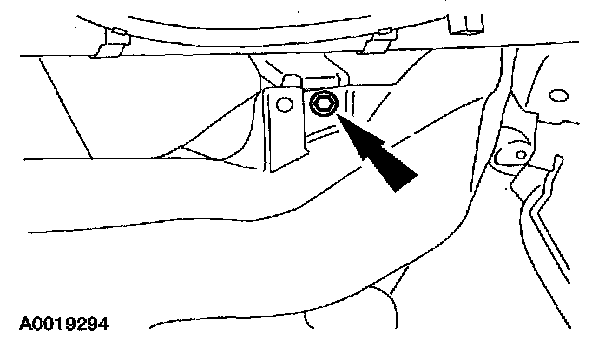

4. Remove the screw for the right vent duct.

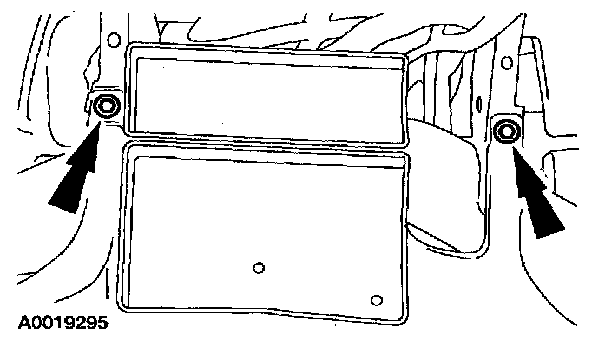

5. Remove the screws for the center vent duct and remove the vent duct.
6. To install, reverse the removal procedure.
