Blower Motor: Service and Repair
BLOWER MOTORRemoval and Installation
1. Remove the RH A-pillar lower trim.

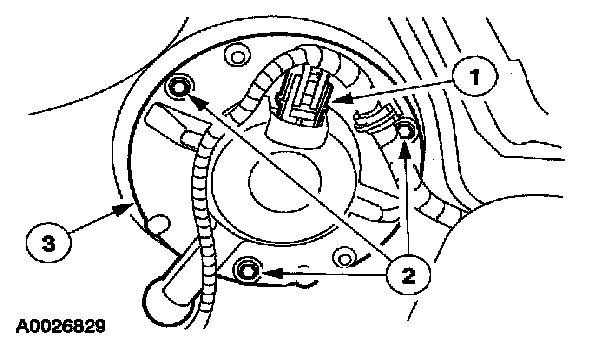

2. Remove the blower motor
1. Disconnect the electrical connector.
2. Remove the washer screws.
3. Remove the blower motor and cover, lower the assembly from the housing.
3. To install, reverse the removal procedure.
