Evaporator Case: Service and Repair

EVAPORATOR CORE HOUSING

Removal and Installation

1. Discharge and recover the refrigerant.
2. Remove the instrument panel.




3. Disconnect the refrigerant line spring lock couplings from the A/C evaporator core. See SPRING LOCK COUPLING.

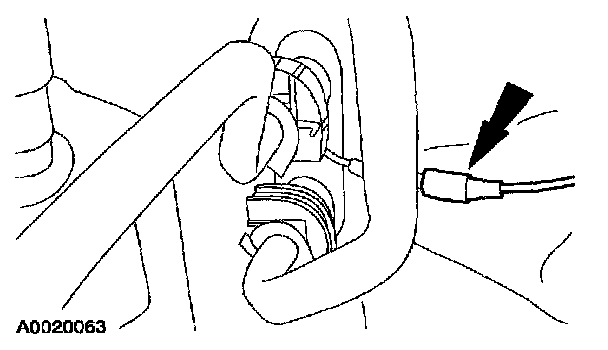

4. Disconnect the vacuum hose.

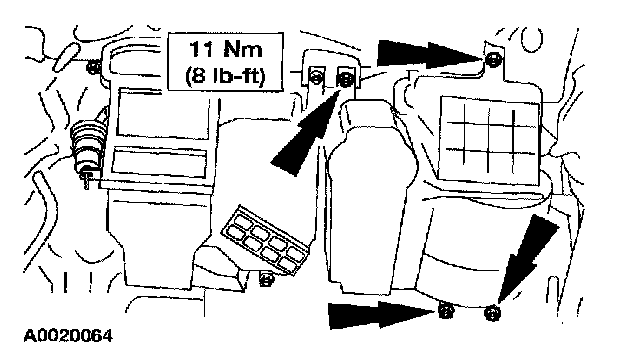

5. Remove the evaporator core housing.
1. Remove the nuts.
2. Carefully remove the evaporator core housing to avoid spilling PAG compressor oil in the passenger area.

NOTE: Feed the vacuum hose through the opening in the cowl while installing the housing.

NOTE: Before installing the temperature control cable, make sure the blend door, cable and temperature switch are correctly positioned. See TEMPERATURE BLEND DOOR CONTROL CABLE.

6. To install, reverse the removal procedure.
