Service Port HVAC: Description and Operation

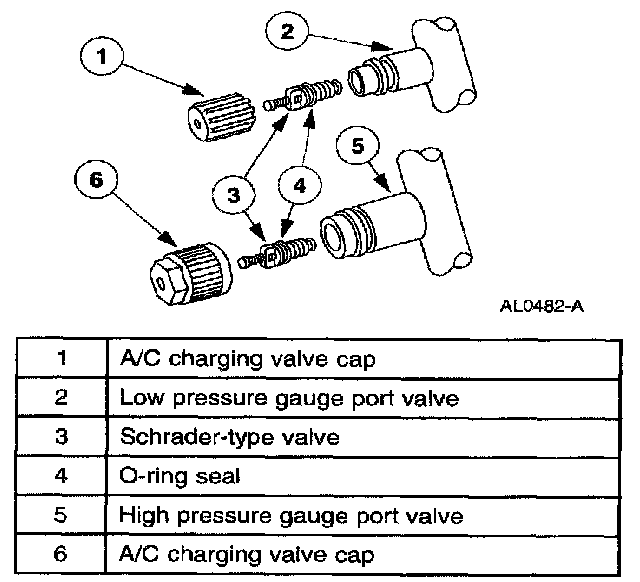

Gauge Port Valves

The high-pressure gauge port valve is located on the condenser-to-evaporator line.
The low-pressure gauge port valve is located on the A/C manifold and tube assembly.




The fitting is an integral part of the refrigeration line or component.
- Special couplings are required for both the high-side and low-side gauge ports
- The Schrader-type valve core can be repaired if the seal leaks
- Always install the A/C charging valve cap on the gauge port valves after repairing the refrigerant system.
