Vacuum Control Motor - Defrost

Removal and Installation

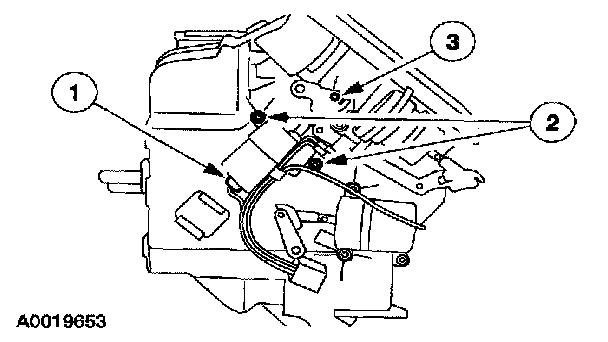

1. Remove the vacuum control motor.
1. Disconnect the vacuum line.
2. Remove the two screws.
3. Disconnect the vacuum control motor from the door lever.

2. To install, reverse the removal procedure.
