Vacuum Control Motor - Outside Air Inlet

Removal and Installation

1. Remove the instrument panel.

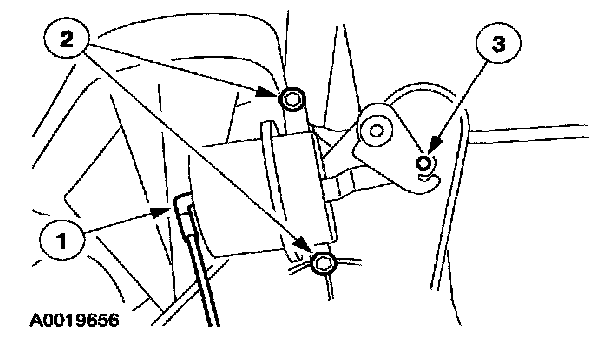

2. Remove the vacuum control motor.
1. Disconnect the vacuum line.
2. Remove the two screws.
3. Disconnect the vacuum control motor from the door lever.

3. To install, reverse the removal procedure.
