Pinpoint Test 1

PINPOINT TEST 1: THE SAFETY BELT WARNING CHIME IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

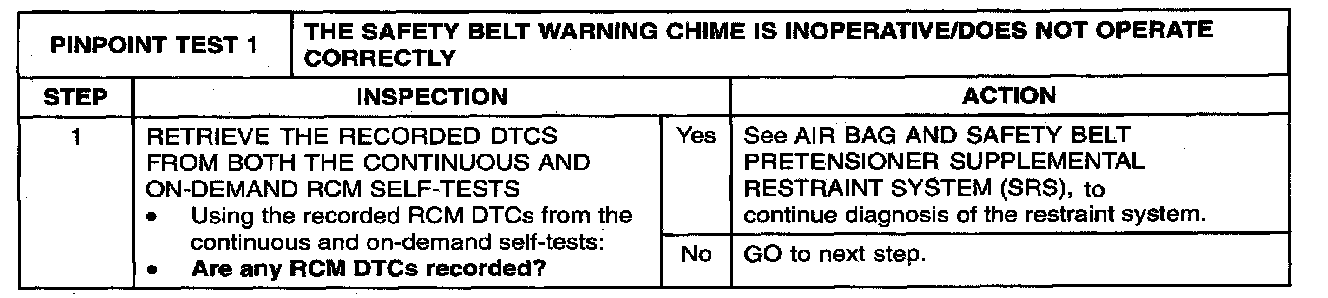

Step 1:

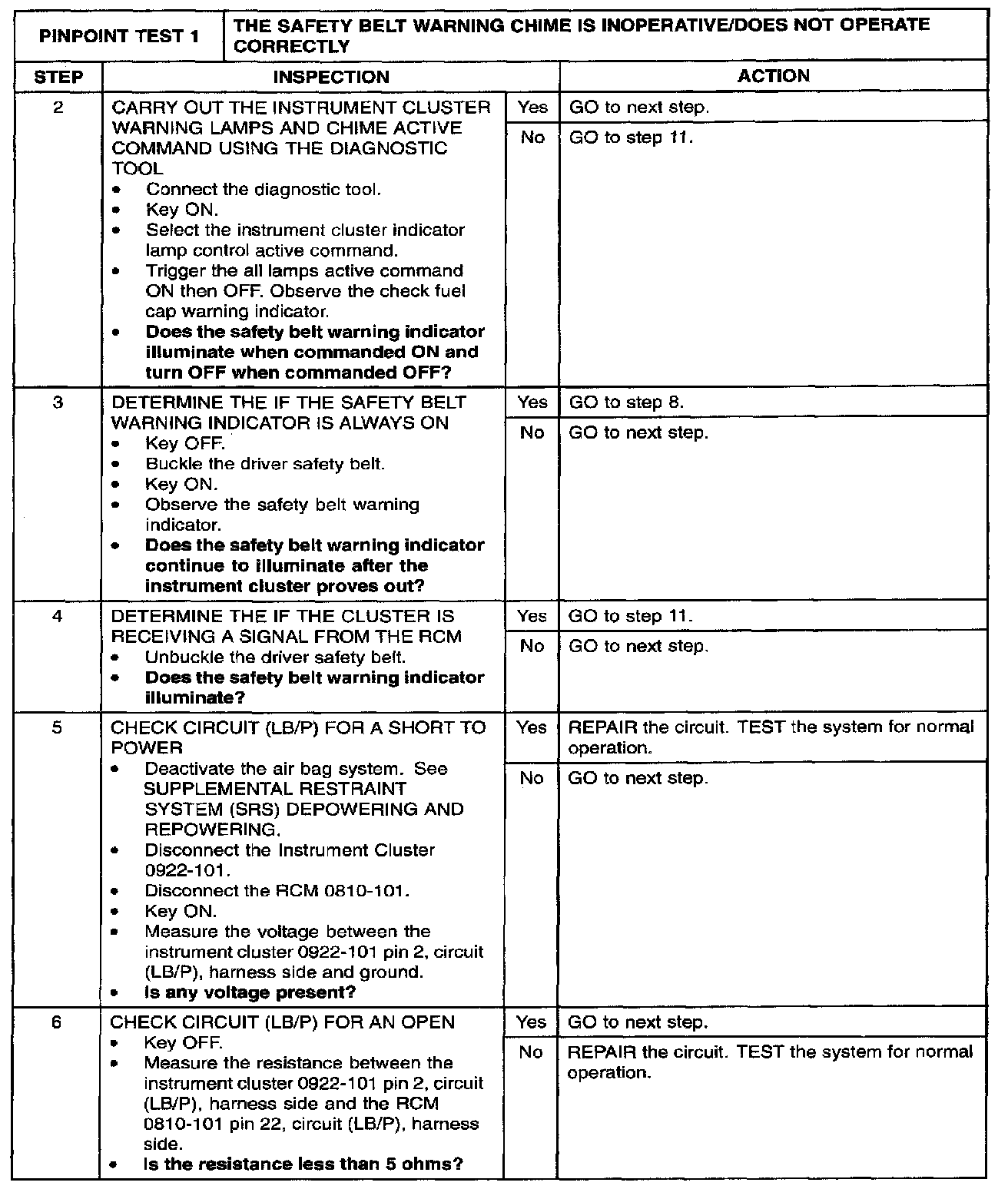

Step 2 - 6:

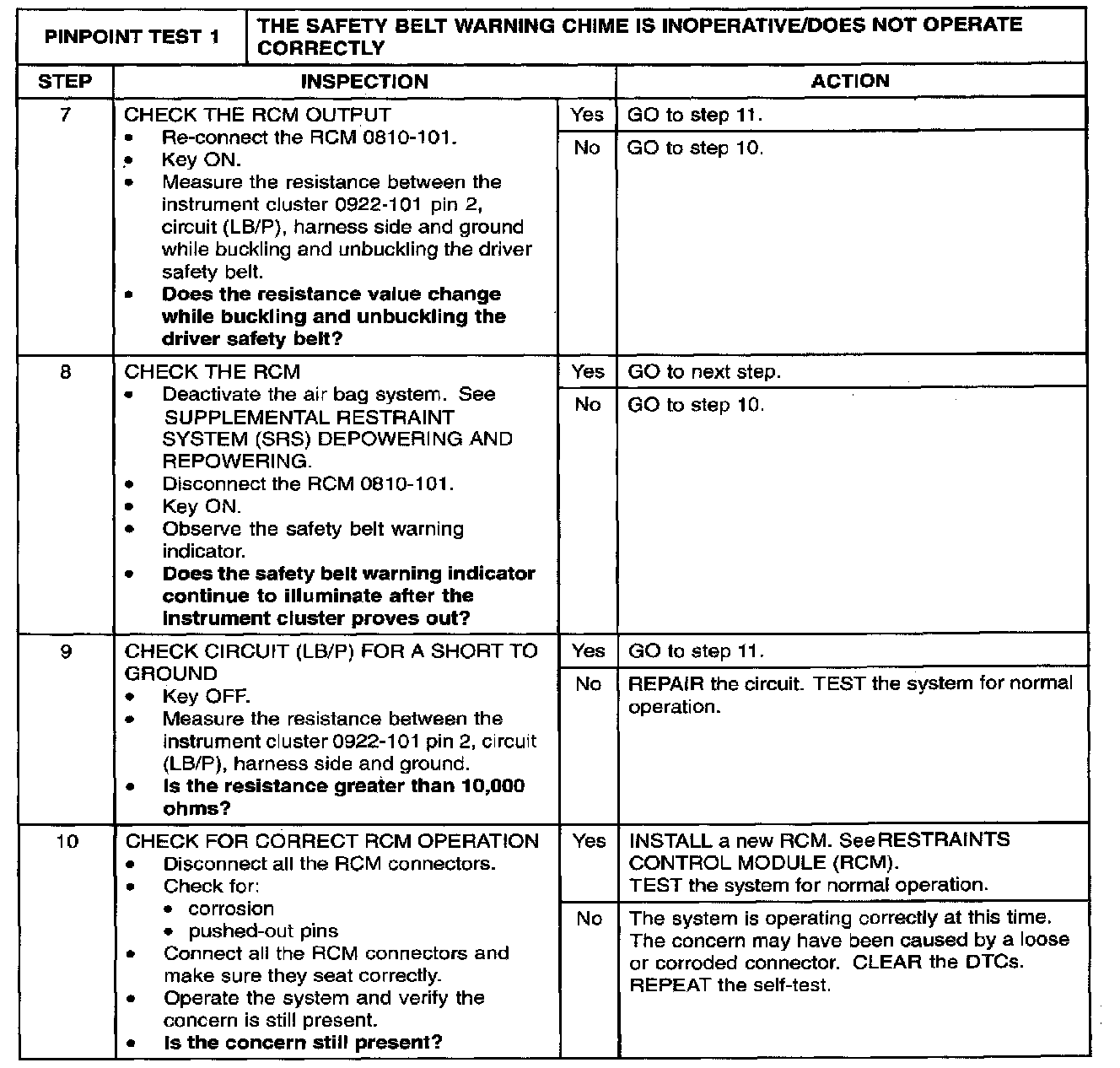

Step 7 - 10:

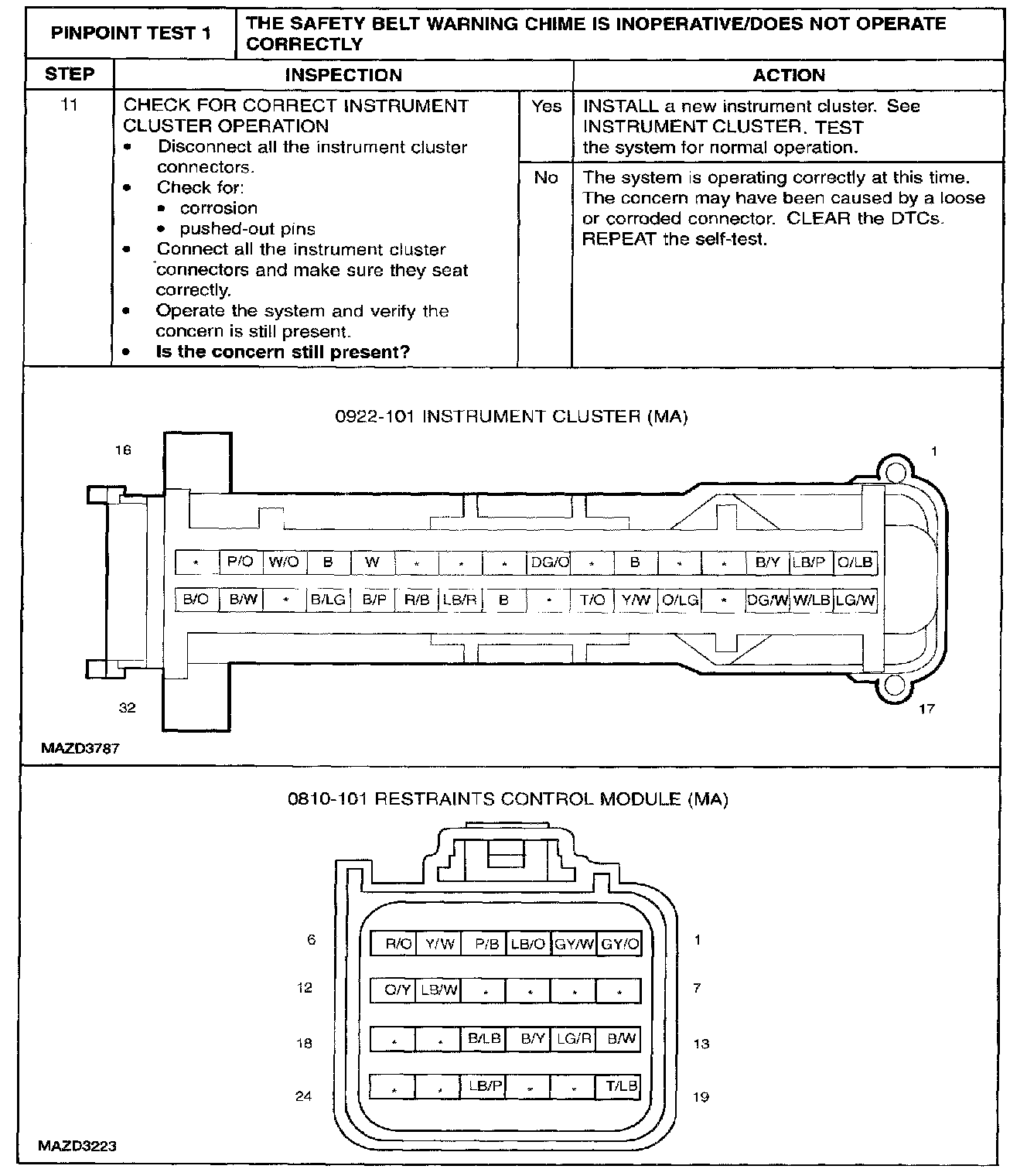

Step 11:

Normal Operation
The instrument cluster receives the safety belt switch status from the RCM through circuit (LB/P). The RCM signals the instrument cluster when the safety belt is unfastened by grounding circuit (LB/P). A safety belt minder chime that is operating correctly indicates that the RCM is monitoring and transmitting the correct operation of the safety belt status to the instrument cluster.

Possible Causes
- circuit (LB/P) open, short to power or short to ground
- RCM
- instrument cluster
