Home >> Mazda >> 2006 >> Tribute 4WD L4-2.3L >> Repair and Diagnosis >> Lighting and Horns >> Exterior Lighting Module >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 2

Pinpoint Test 2

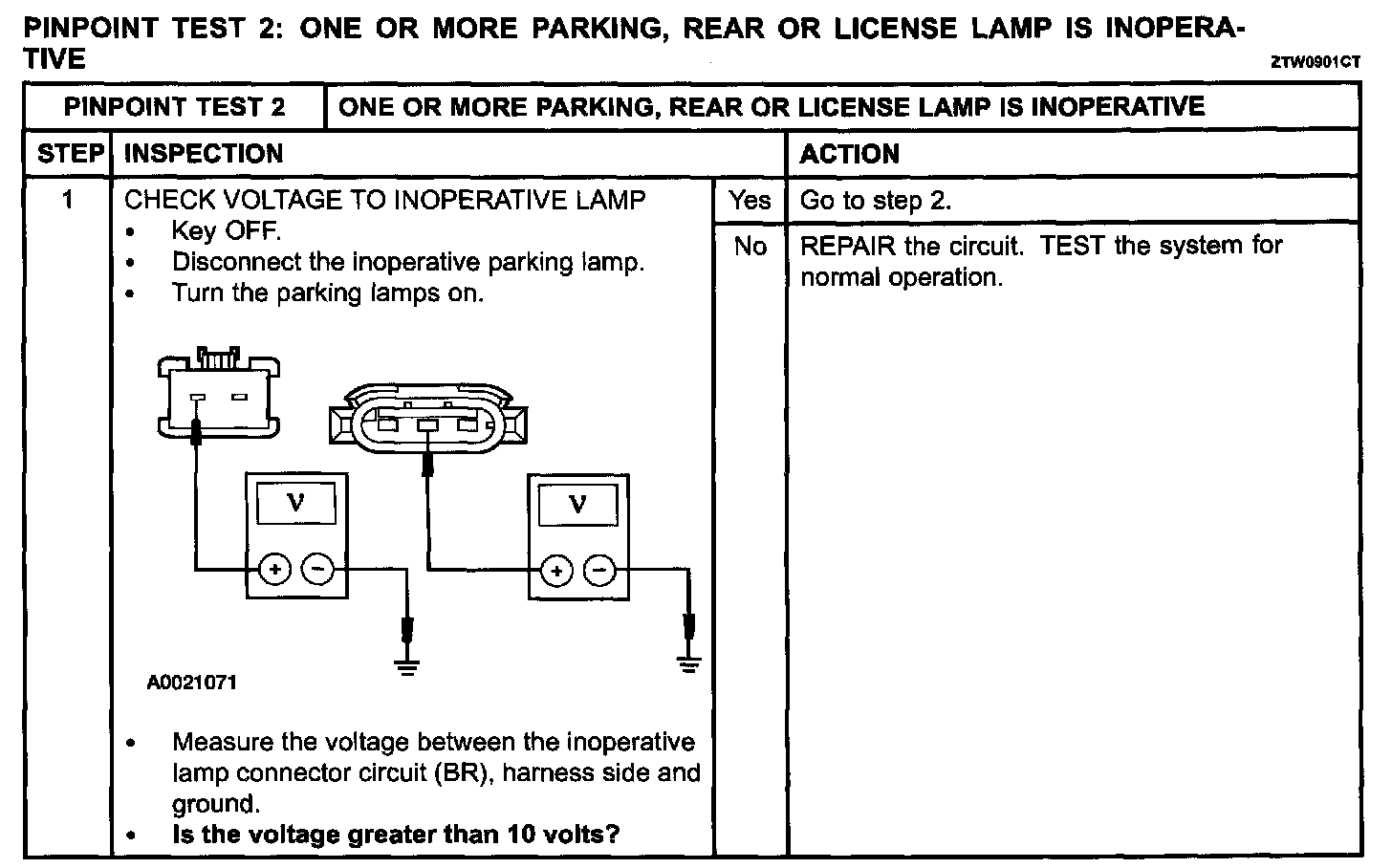

Step 1:

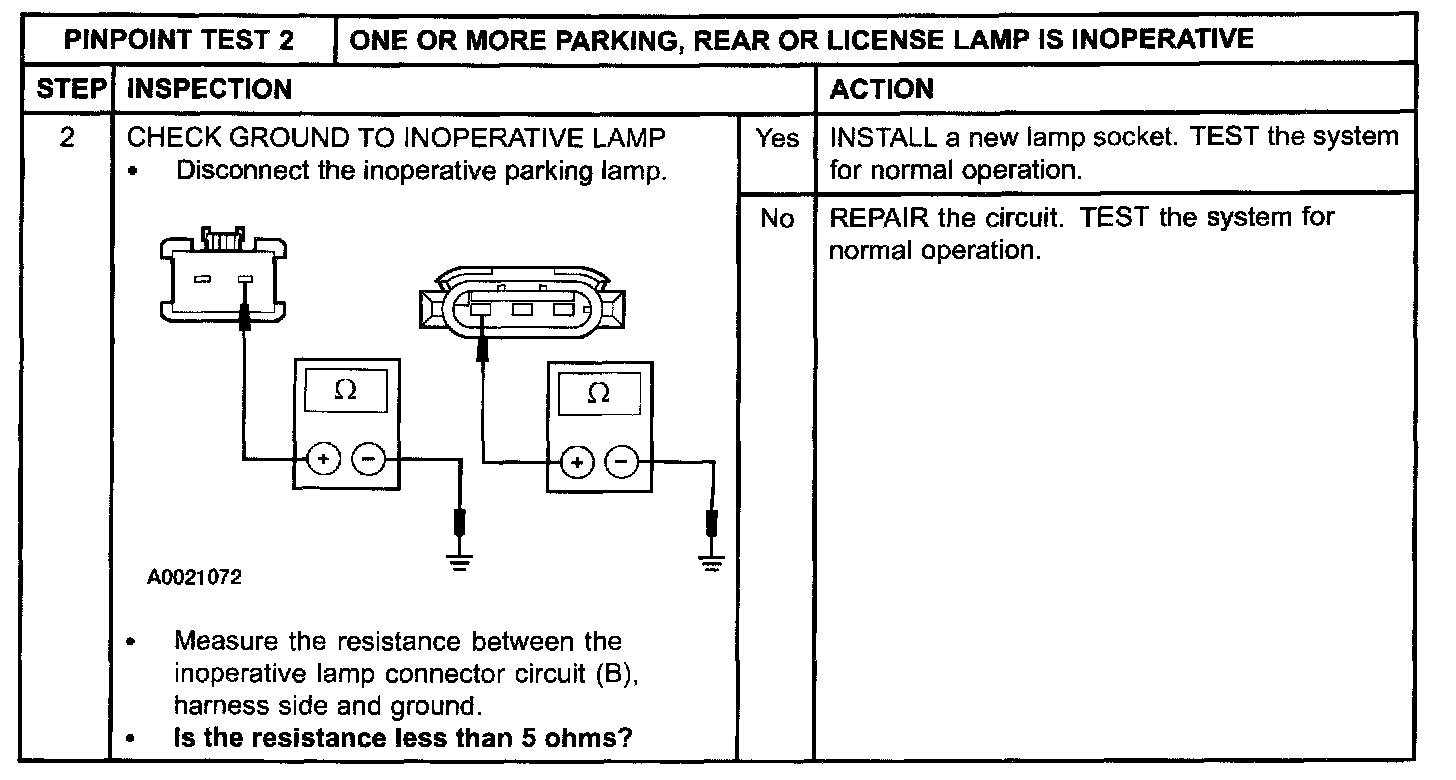

Step 2:
