Pinpoint Test 7

PINPOINT TEST 7: THE FLASH-TO-PASS FEATURE IS INOPERATIVE

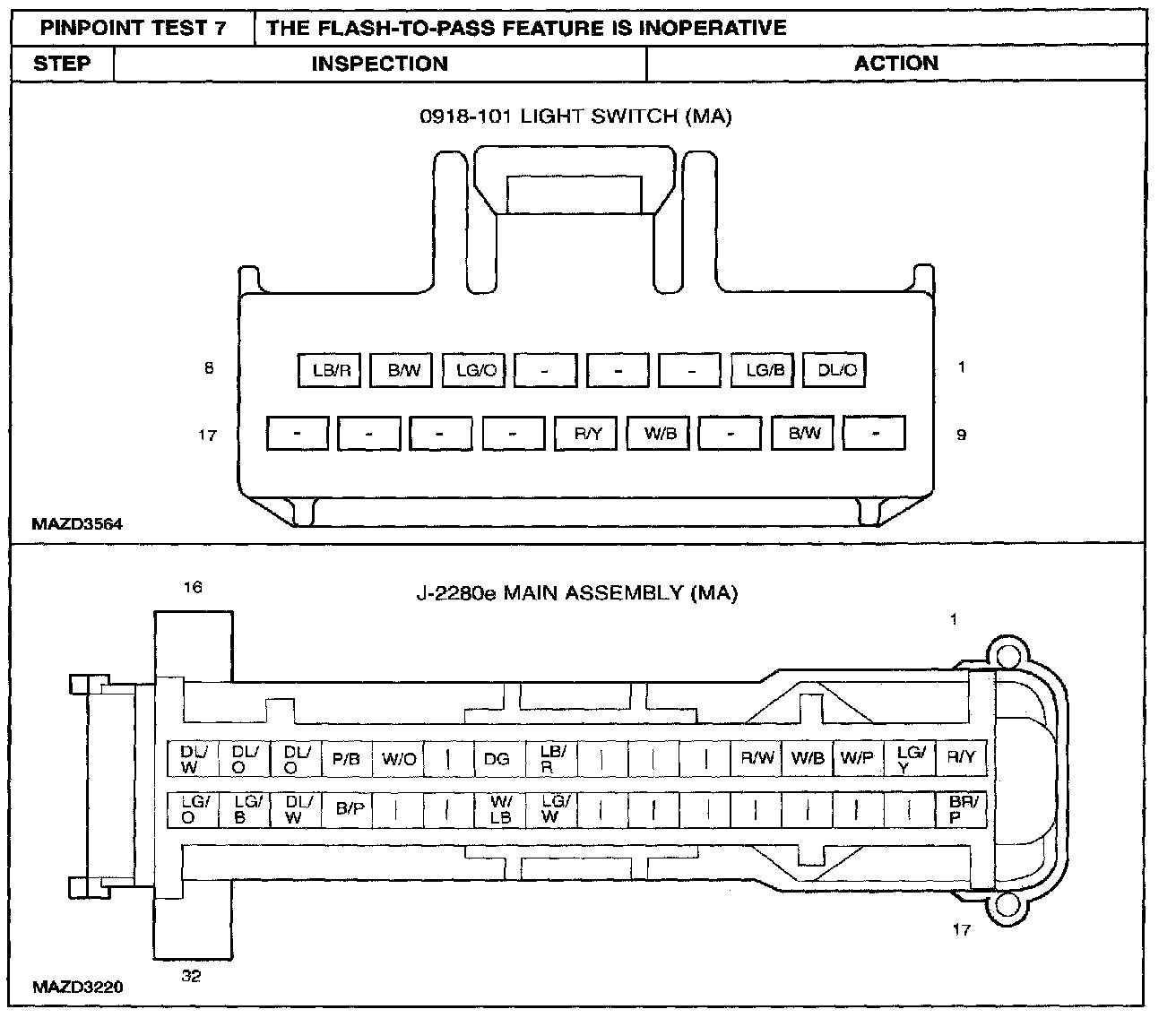

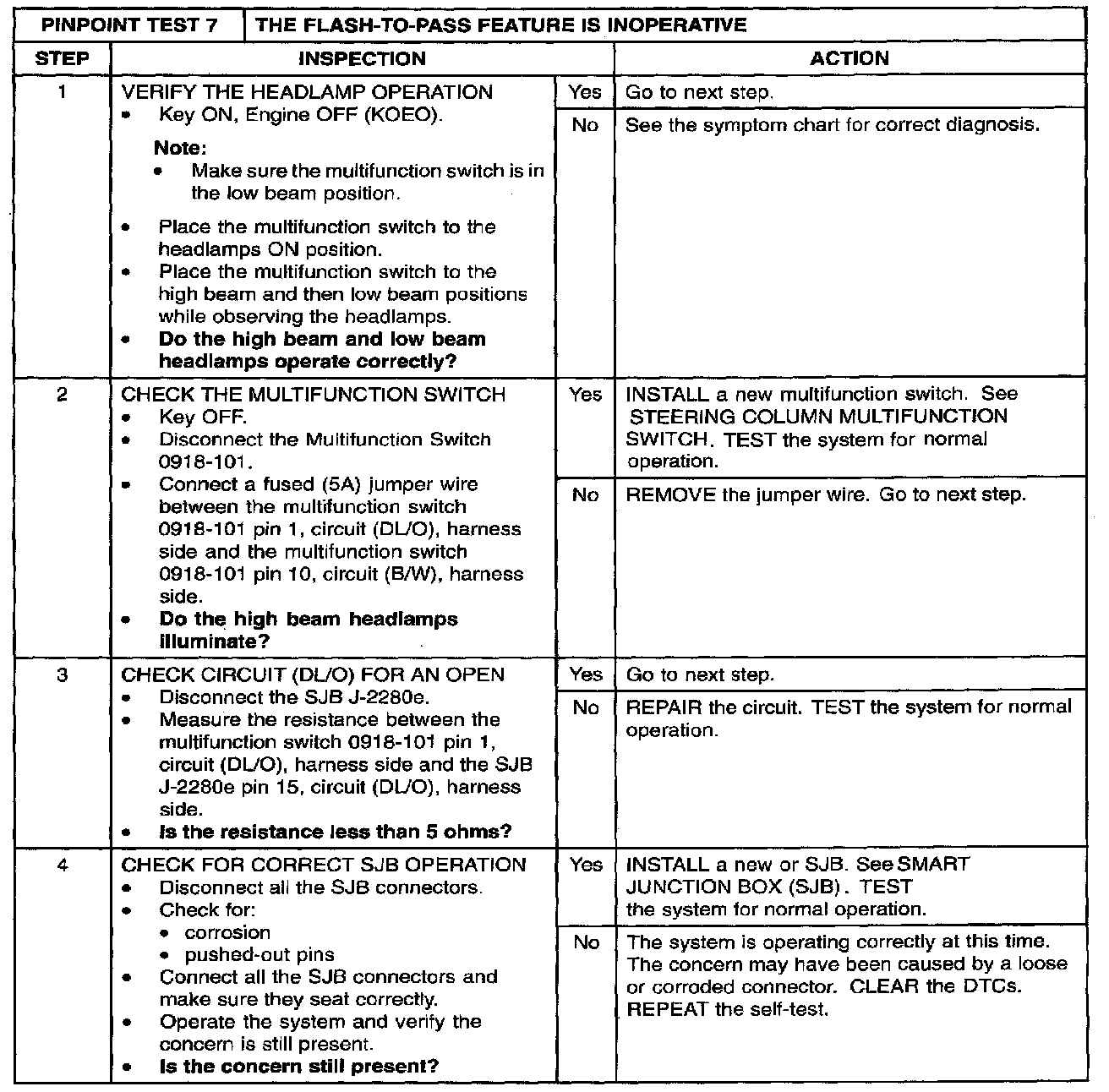

Step 1 - 4:

Normal Operation
The SJB sends a reference signal to the multifunction switch through circuit (DL/O). When the multifunction switch is placed in the flash-to-pass position, the signal is routed to circuit (B/W). When the SJB detects a request for the flash-to-pass, the SJB sends voltage through circuits (DL/LG) (RH headlamp) and (W/LG) (LH headlamp) to the high beam headlamps.

Possible causes
- circuit (DUO) open
- multifunction switch
- SJB
