Horn: Service and Repair
Removal and Installation

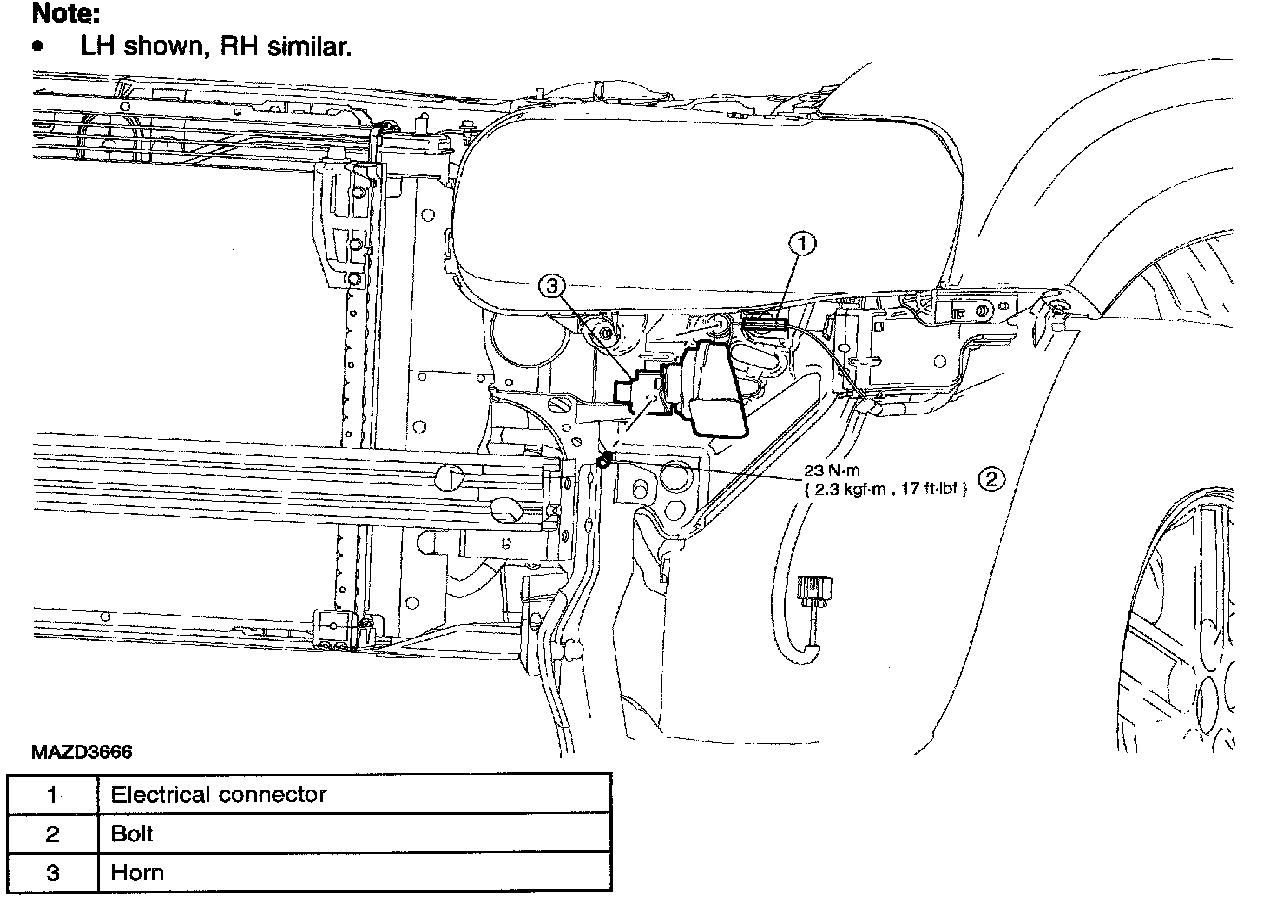

Horn:
NOTE:
LH shown, RH similar.
1.
Remove the front bumper cover.
2.
Disconnect the electrical connector.
3.
Remove the bolt and
horn
.
4.
To install, reverse the removal procedure.
