Pinpoint Test 1

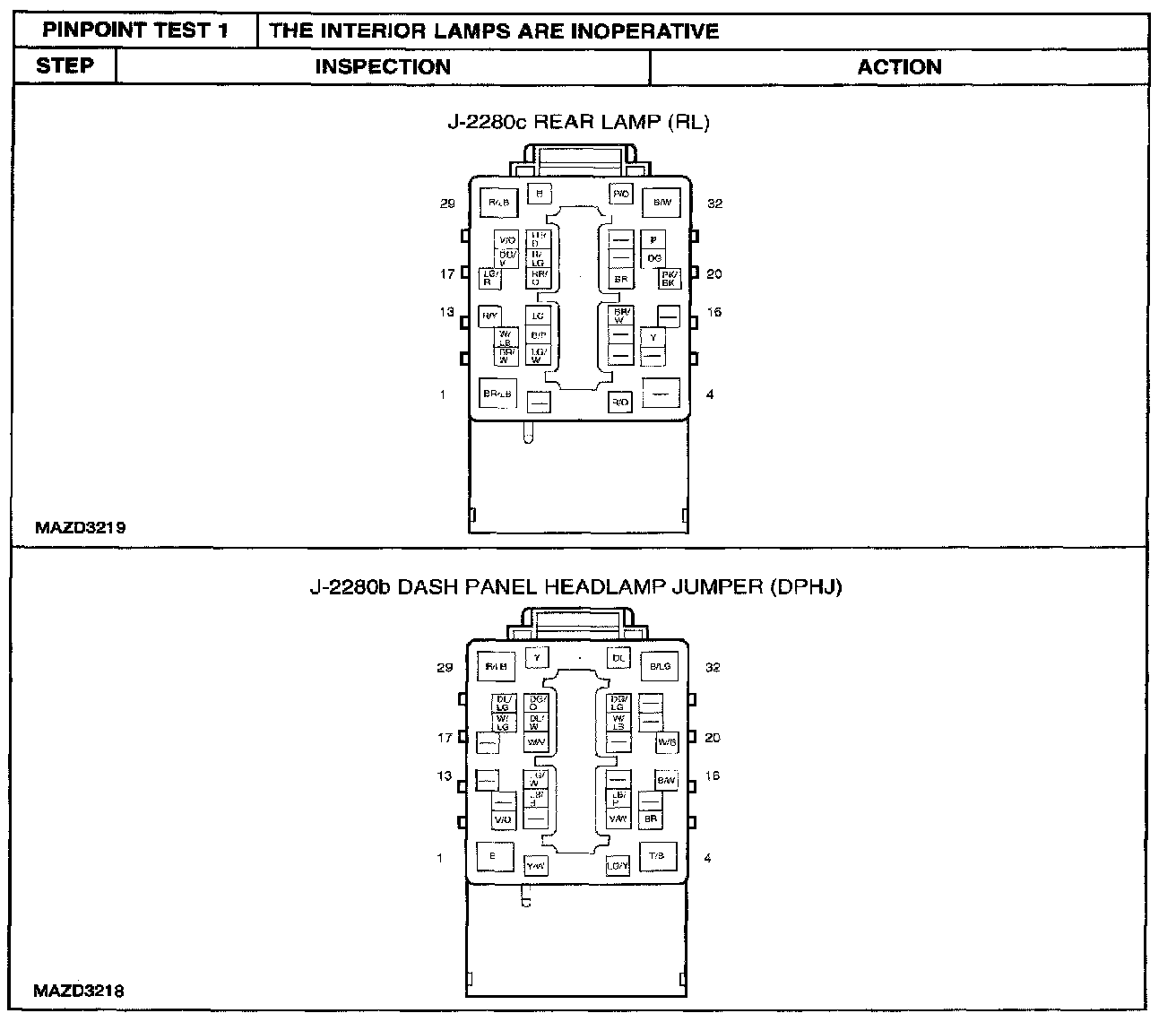

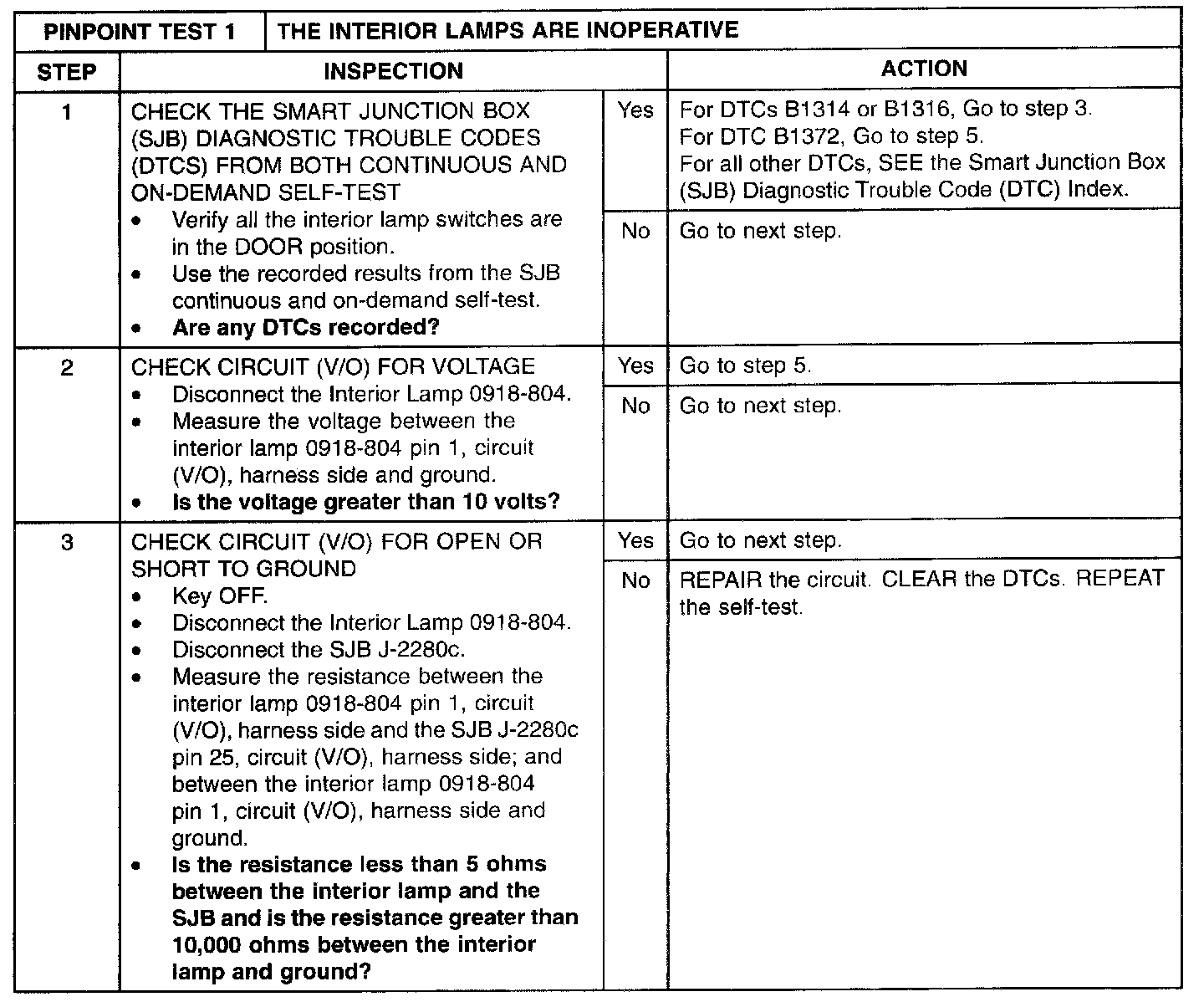

PINPOINT TEST 1: THE INTERIOR LAMPS ARE INOPERATIVEStep 1 - 3:

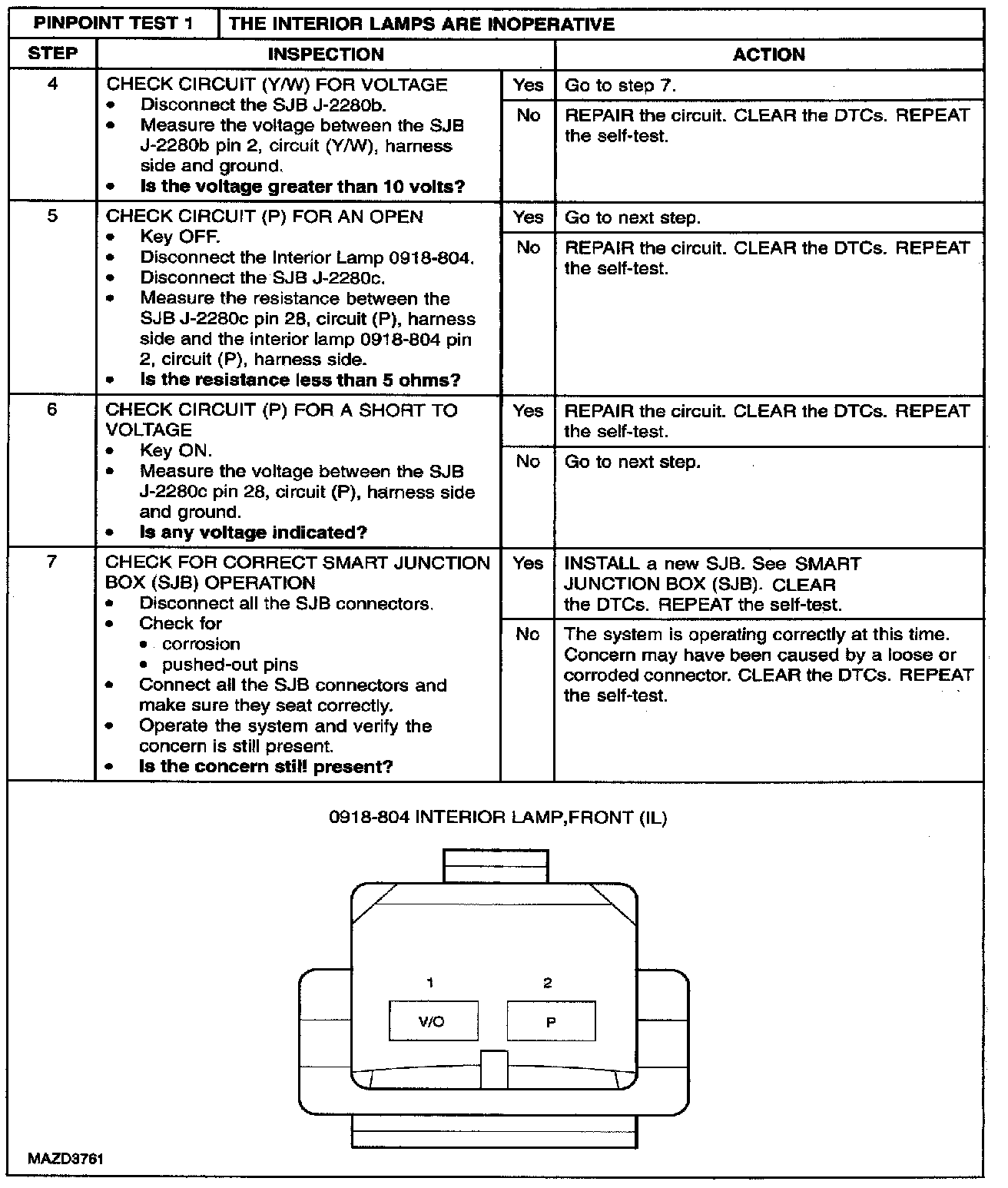

Step 4 - 7:
Normal Operation
When a door or liftgate is opened, the ajar switch opens the circuit to the SJB. The SJB grounds the interior lamp circuit (P), illuminating the interior lamps
Possible Causes
- circuit (Y/W) open
- circuit (V/O) open or short to ground
- circuit (P) open
- SJB
