Pinpoint Test 2

PINPOINT TEST 2: THE INTERIOR LAMPS STAY ON CONTINUOUSLY

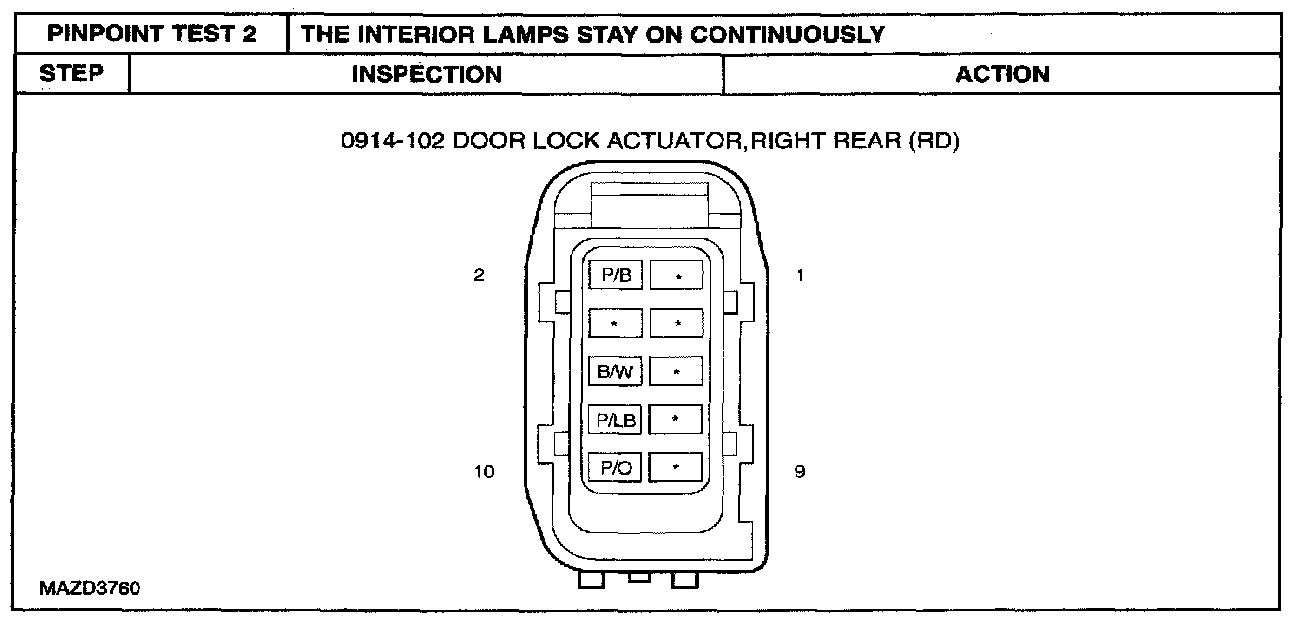

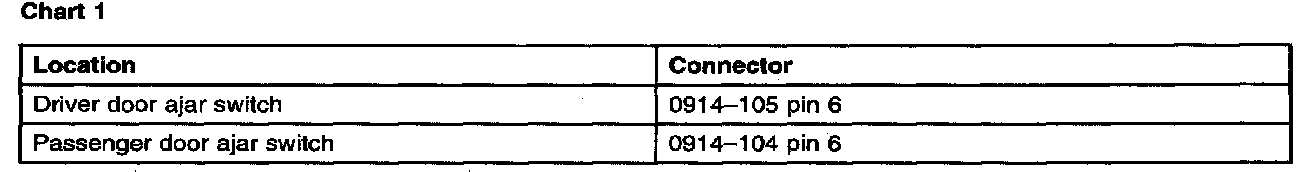

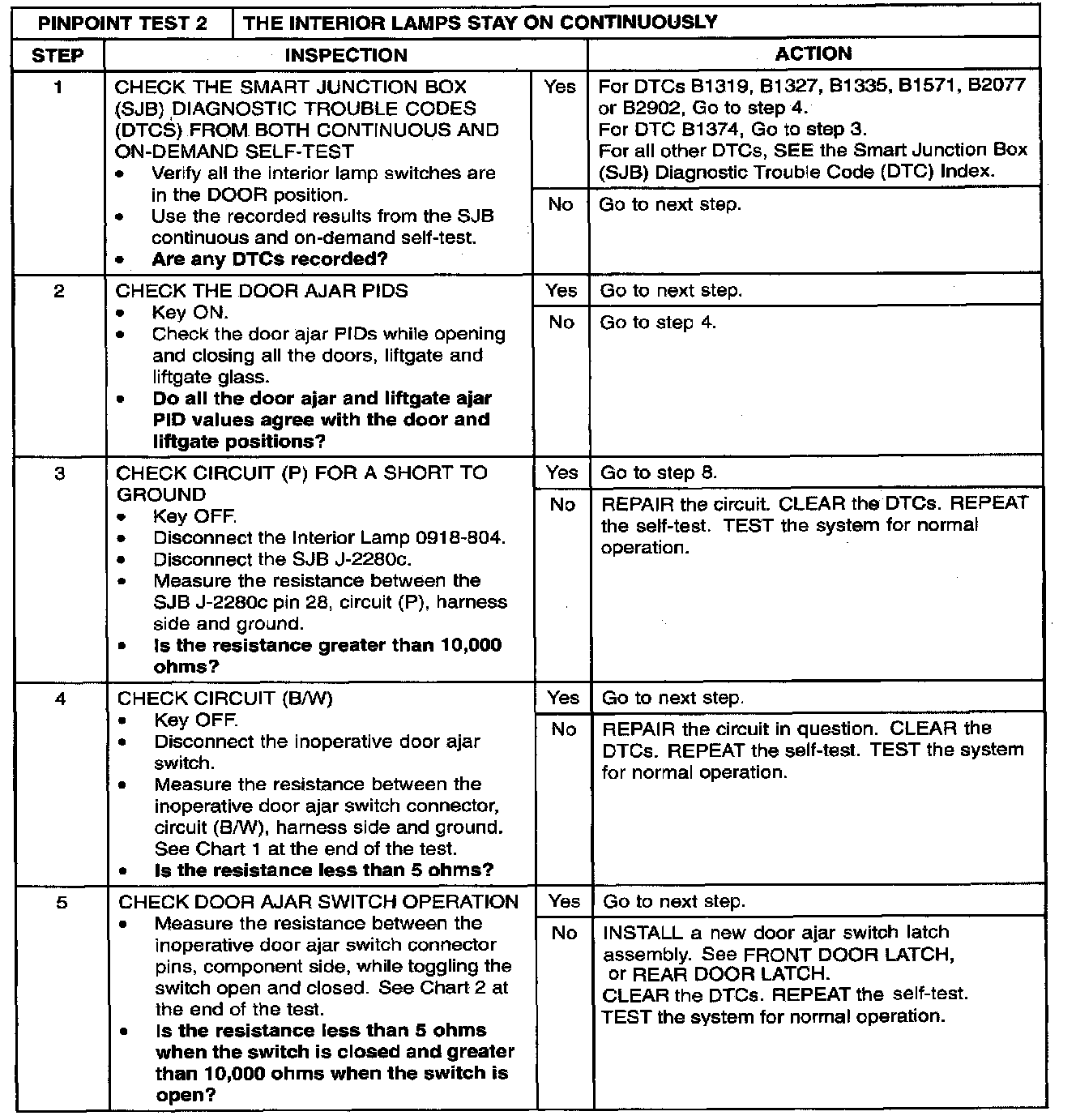

Step 1 - 5:

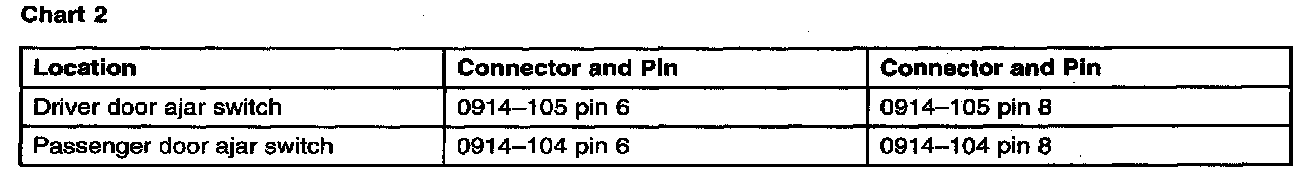

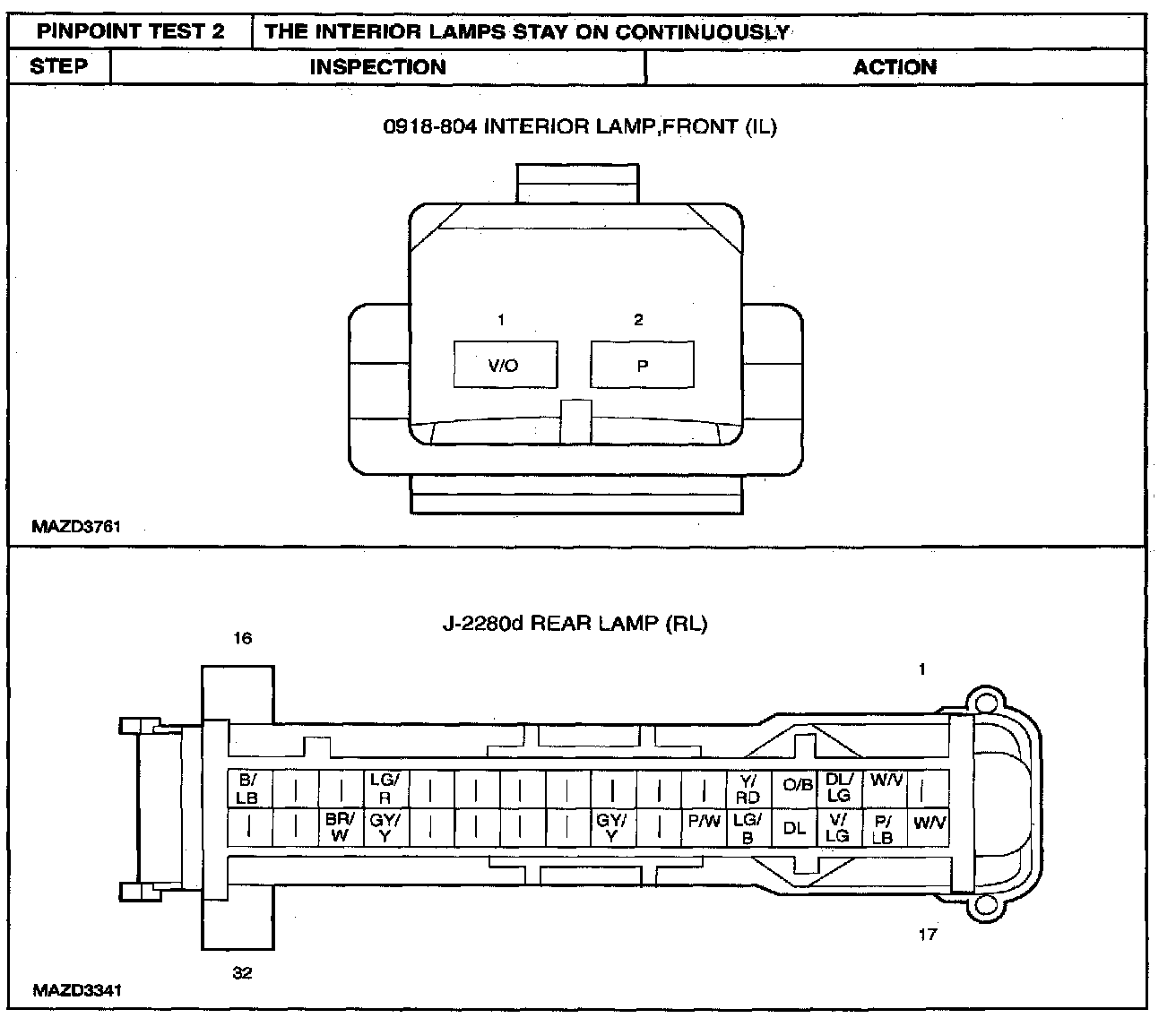

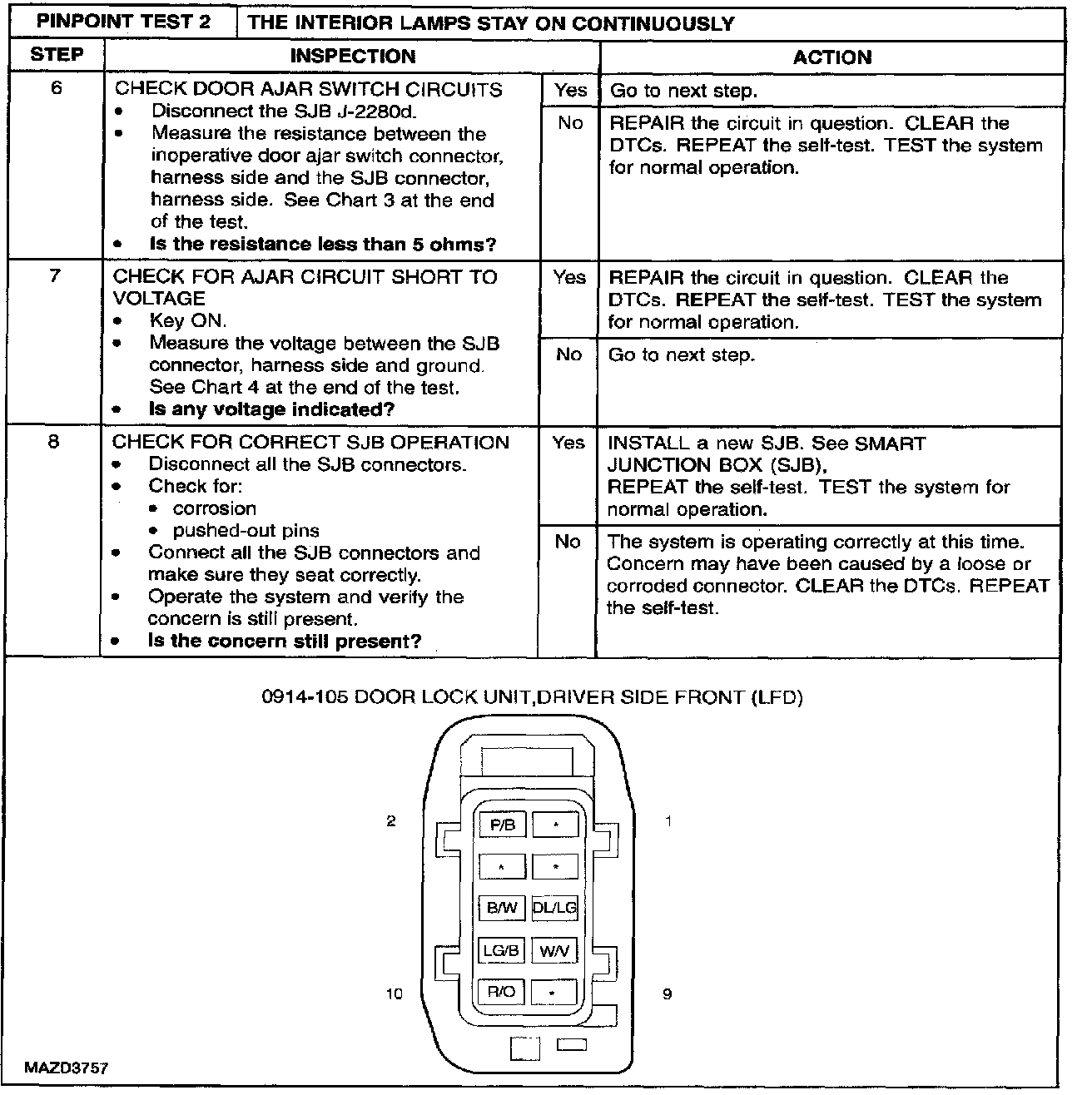

Step 6 - 8:

Normal Operation
When a door or liftgate is opened, the ajar switch opens the circuit to the SJB. The SJB grounds the interior lamp circuit (P), illuminating the interior lamps.

Possible Causes
- circuit (P) short to ground
- circuit (LG/B) open or short to voltage
- circuit (DL) open or short to voltage
- circuit (P/LB) open or short to voltage
- circuit (W/P) open or short to voltage
- circuit (LB/B) open or short to voltage
- ajar switches
- SJB
