Pinpoint Test 5

PINPOINT TEST 5: AN INDIVIDUAL INTERIOR LAMP IS INOPERATIVE

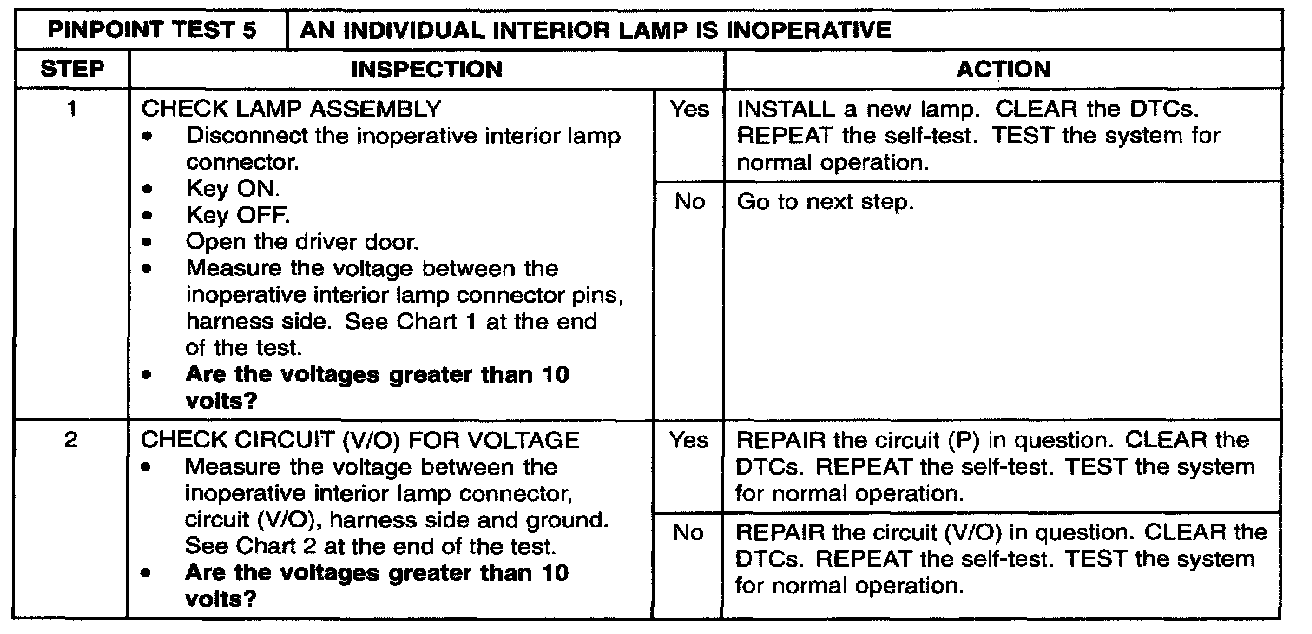

Step 1 - 2:

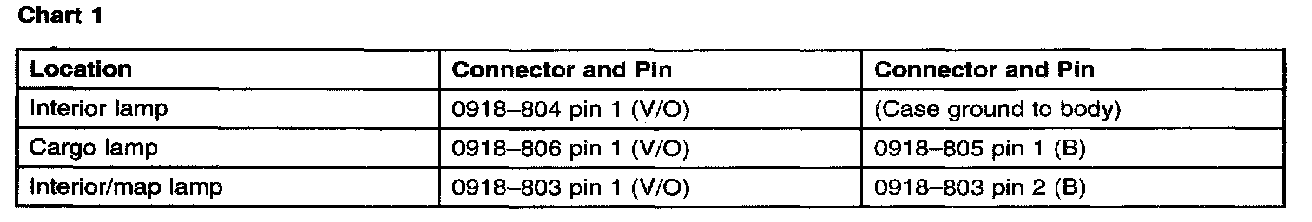

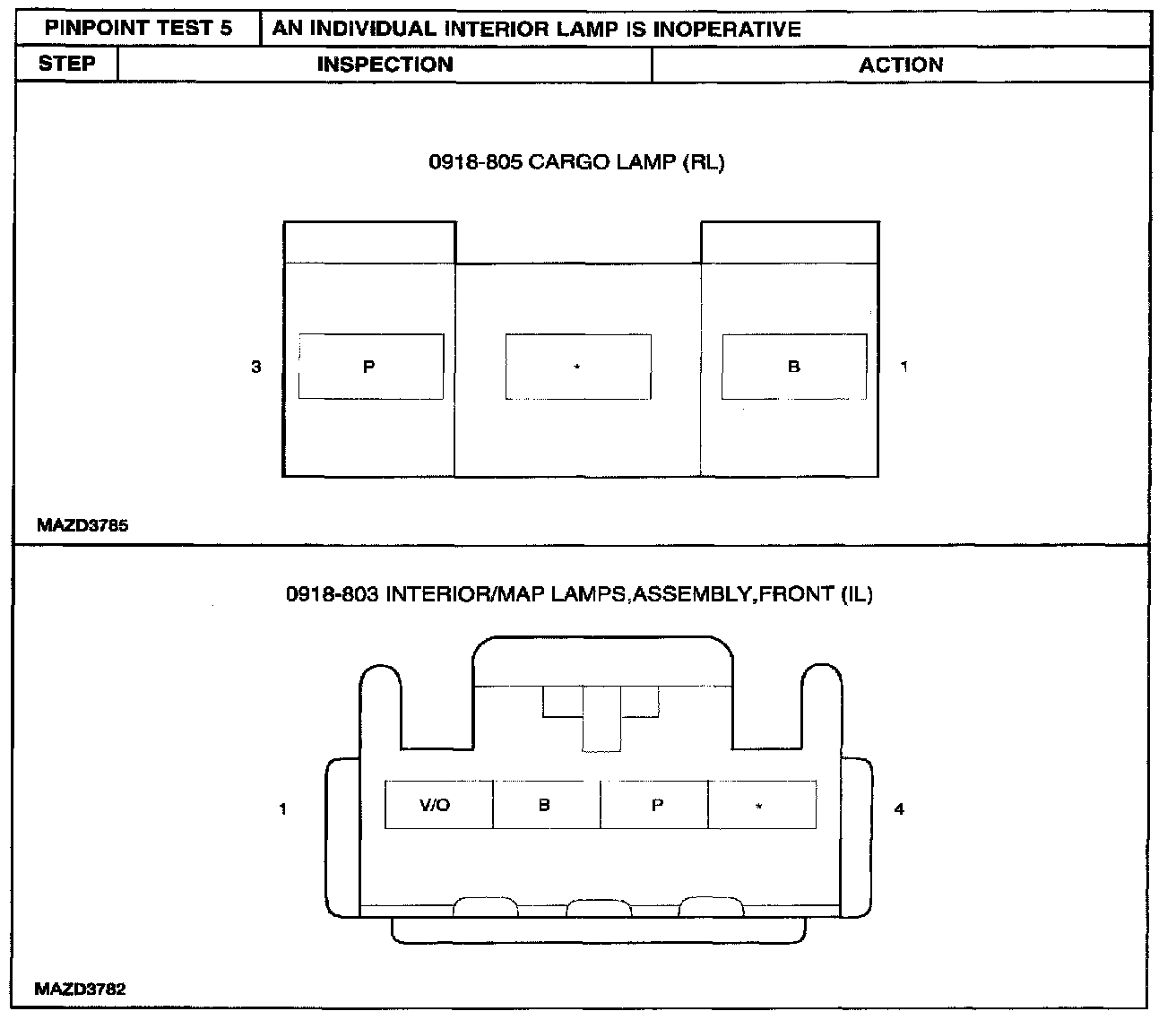

Chart 2 Part 1:

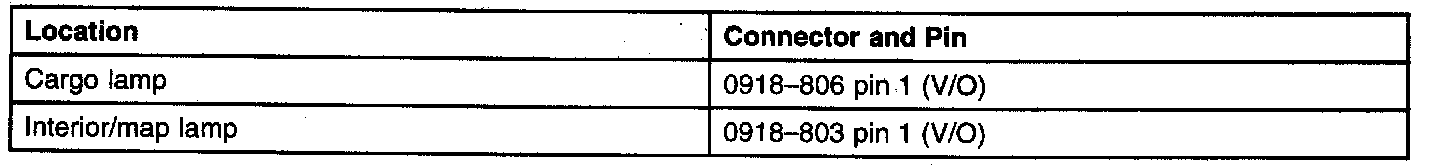

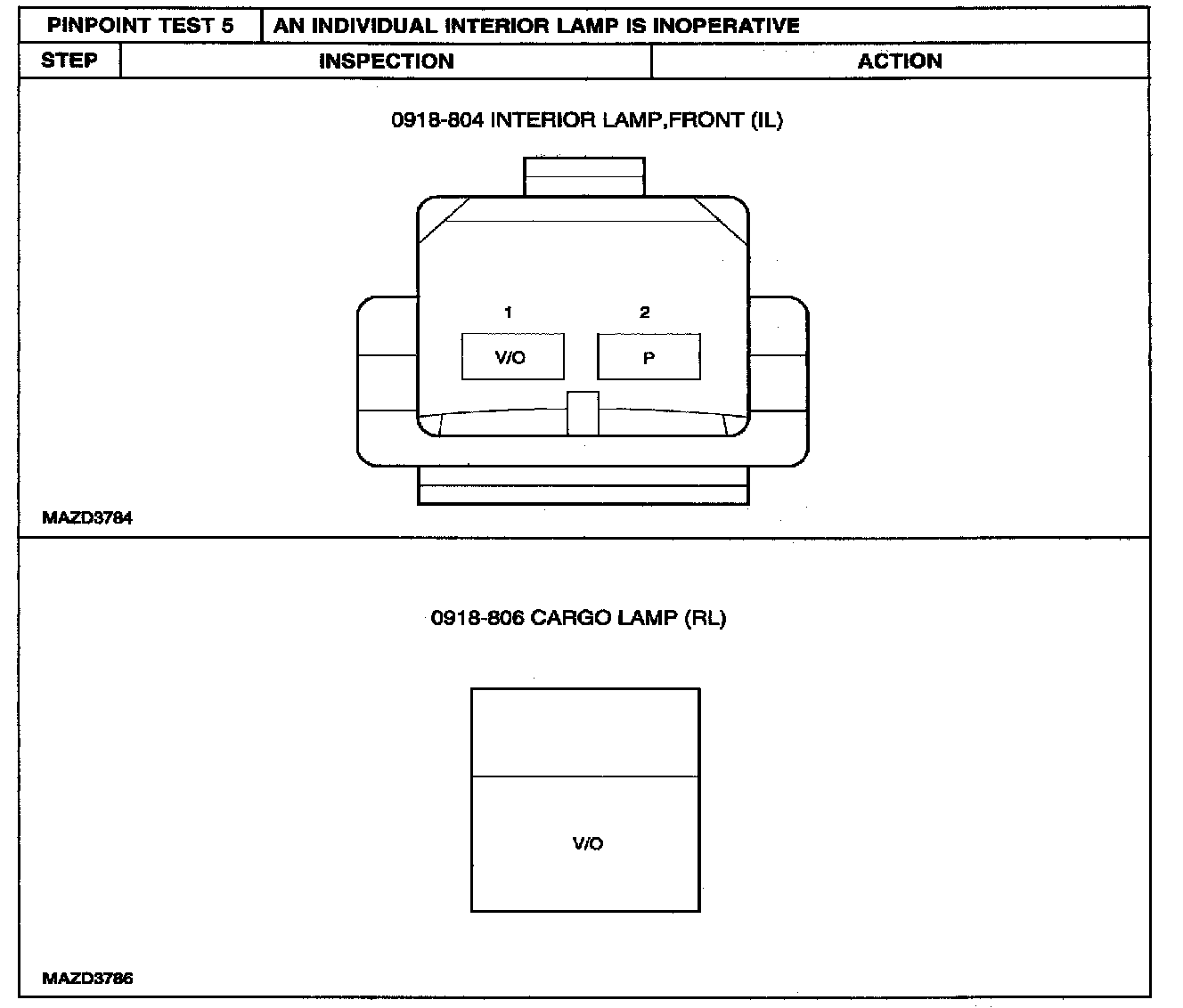

Chart 2 Part 2:

Normal Operation
Circuit (V/O) provides power to each interior lamp when activated. The interior lamps are grounded through circuit (P). The battery saver in the SJB deactivates the power and ground circuits after time-out.

Possible Causes
- circuit (V/O) open
- circuit (P) open
- lamp assembly
