Pinpoint Test 6

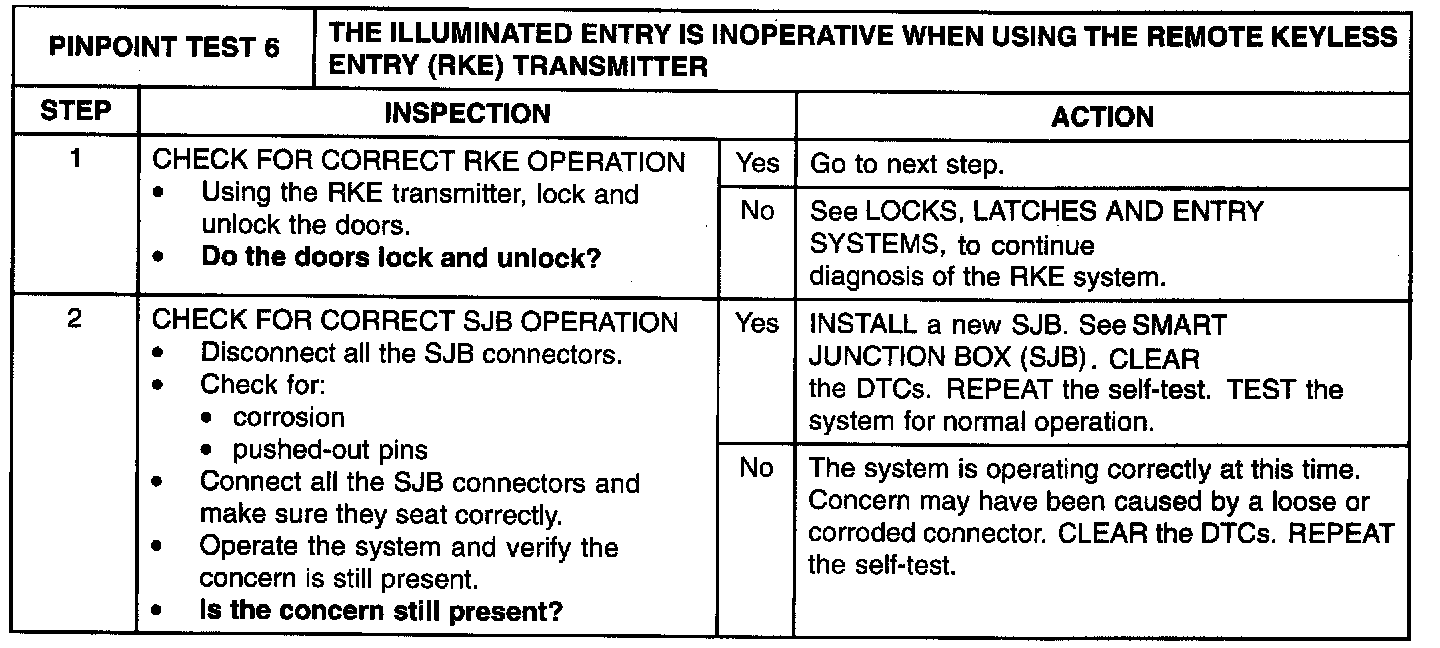

PINPOINT TEST 6: THE ILLUMINATED ENTRY IS INOPERATIVE WHEN USING THE REMOTE TRANSMITTER

Step 1 - 2:






Normal Operation
The illuminated entry provides interior lighting whenever the SJB receives a lamps ON/doors UNLOCK request from the RKE transmitter. The SJB provides the power and ground circuits for the interior/map lamps.

Possible Causes
- RKE transmitter
- SJB
