Camber and Caster Adjustment

CAMBER AND CASTER ADJUSTMENT

Front Camber and Caster Adjustment
1. With the vehicle in NEUTRAL, position it on a hoist.

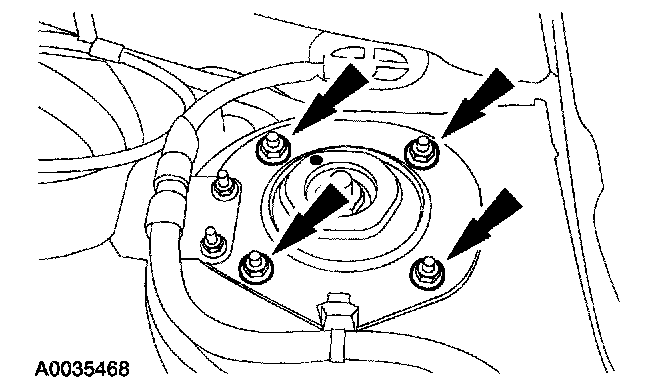

2. Remove the front strut upper mounting bracket nuts.
3. Push the front strut mounting bracket downward and turn it to the desired position to set the camber and caster. Both camber and caster for the front suspension are adjustable. For addition information, refer to steps 4 and 5.

Note: Notice the position of the strut rod in each position

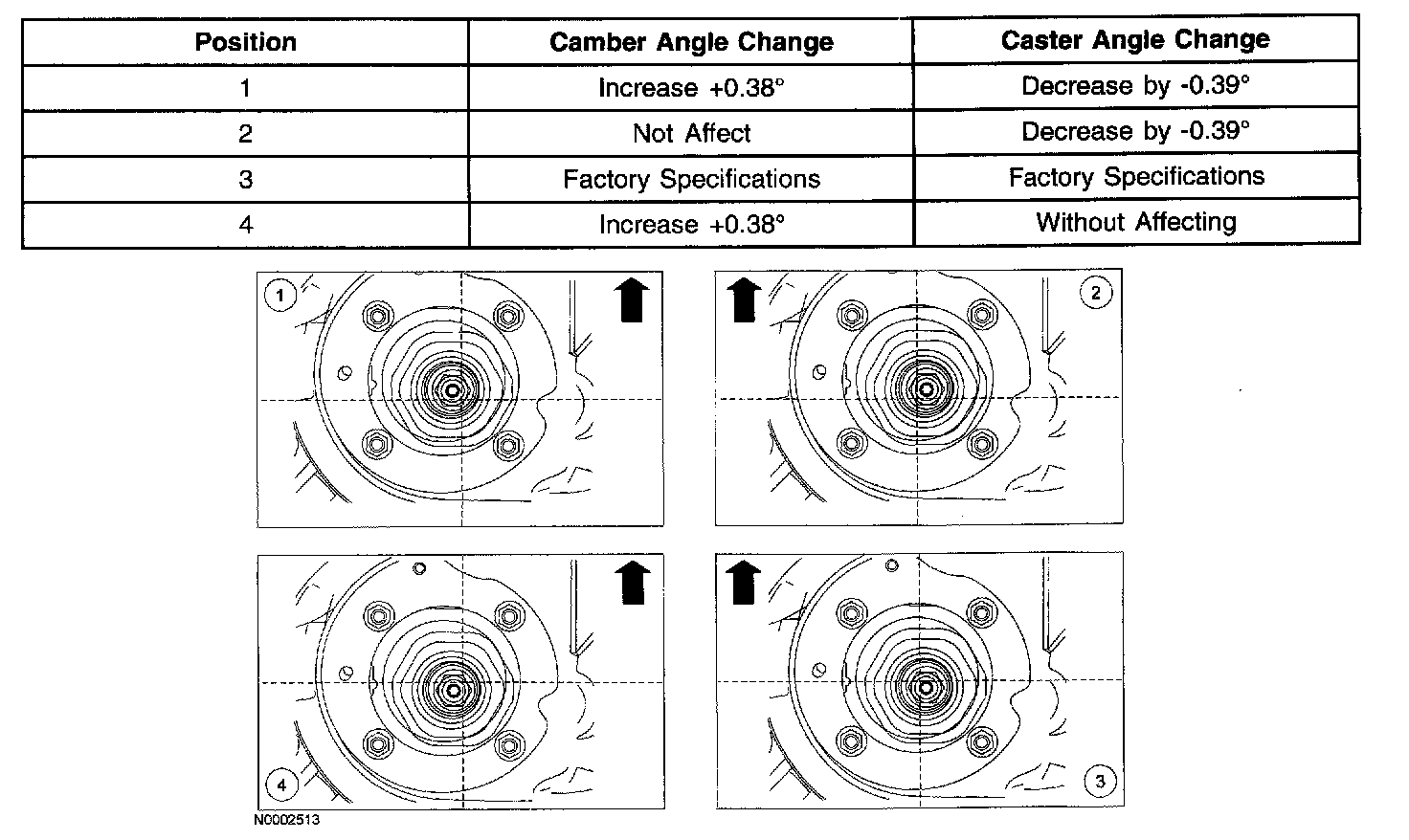

4. Use the above table for LH side camber and or caster adjustment.





Difference From Standard Position (LH side)

Note: Notice the position of the strut rod in each position

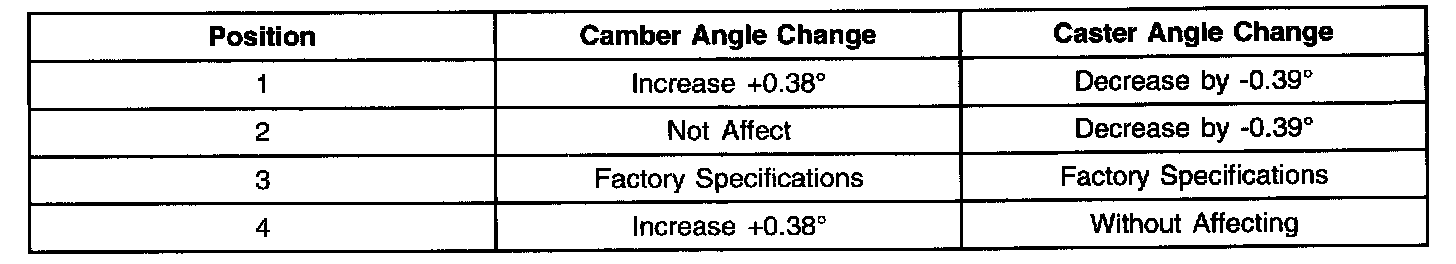

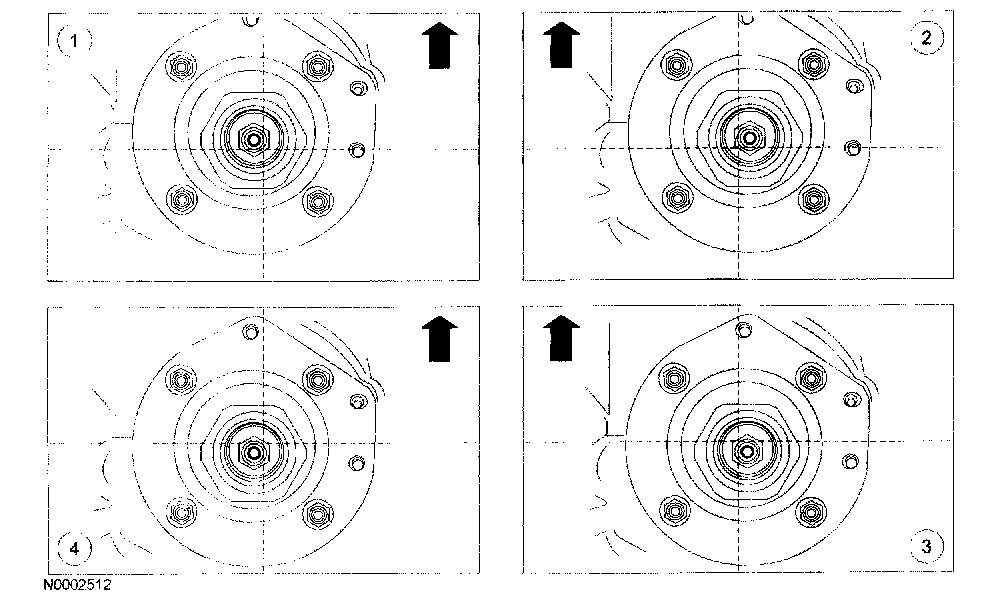

5. Use the above table for the RH side camber and or caster adjustment.





Difference From Standard Position (RH side)

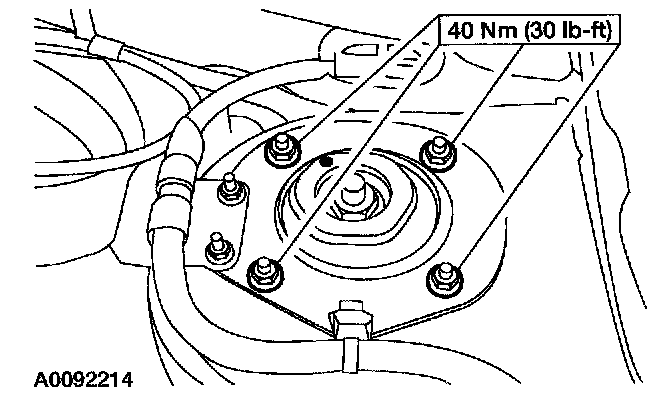

6. Install and tighten the front strut upper mounting bracket nuts.
