Air Cleaner Housing: Service and Repair
AIR CLEANERRemoval and Installation
1. Disconnect the air cleaner.
- Disconnect the outlet pipe.

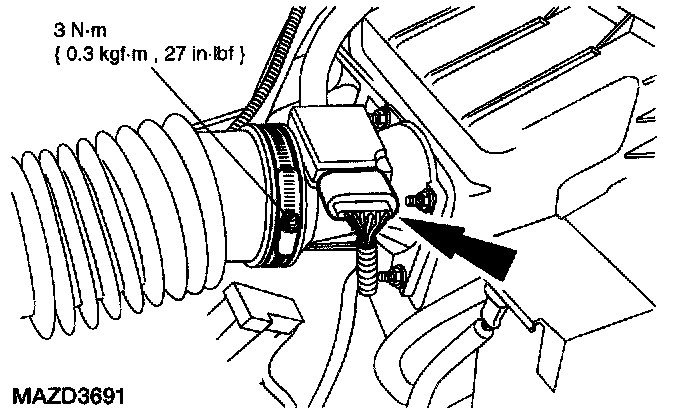

- Disconnect the mass air flow/intake air temperature sensor electrical connector.

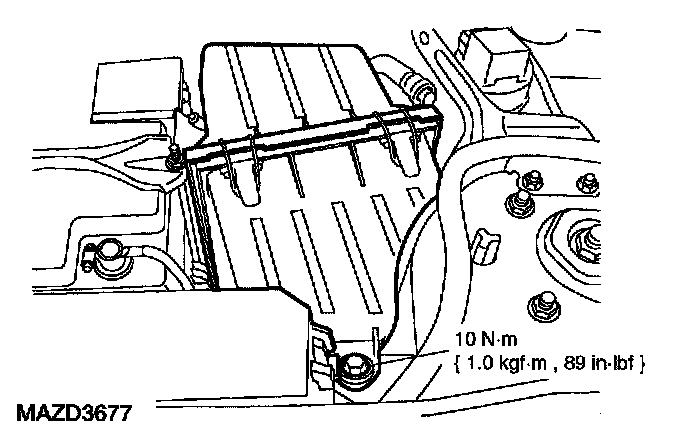

2. Remove the bolt and remove the air cleaner housing.
NOTE:
- Make sure the two air cleaner feet are seated into the rubber grommets under the air cleaner assembly.
- The air cleaner outlet pipe should be securely sealed to prevent unmetered air from entering the engine,
3. To install, reverse the removal procedure.
