Coolant Line/Hose: Service and Repair

BYPASS TUBE - 2.3L





Removal and Installation
1. Drain the engine Cooling System.
2. Remove the intake manifold.

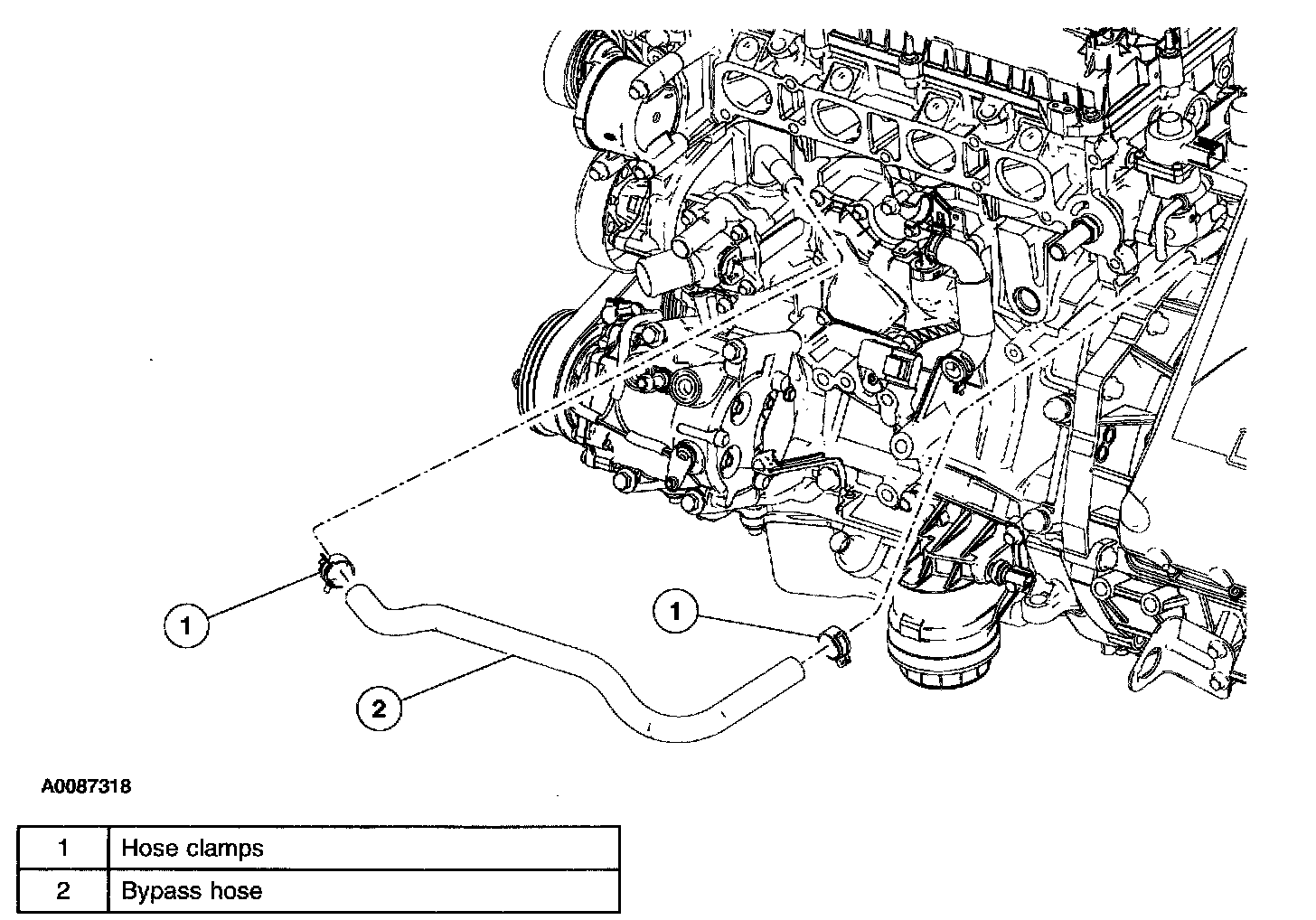

3. Loosen the hose clamps and remove the bypass hose.

Note:
^ Clean and inspect the sealing surfaces.

4. To install, reverse the removal procedure.
