M/T

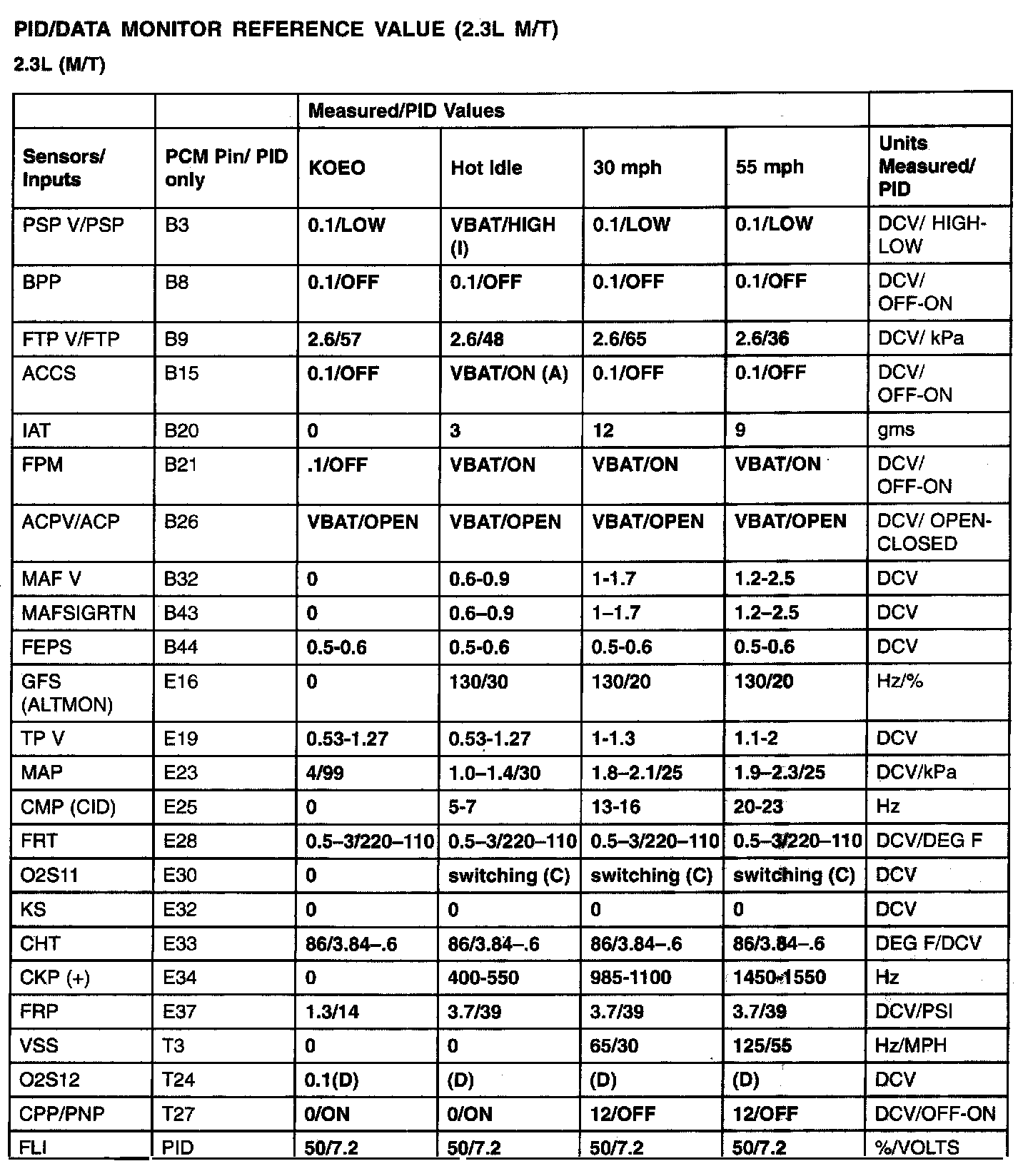

PID/DATA Monitor Reference Value (Part 1):

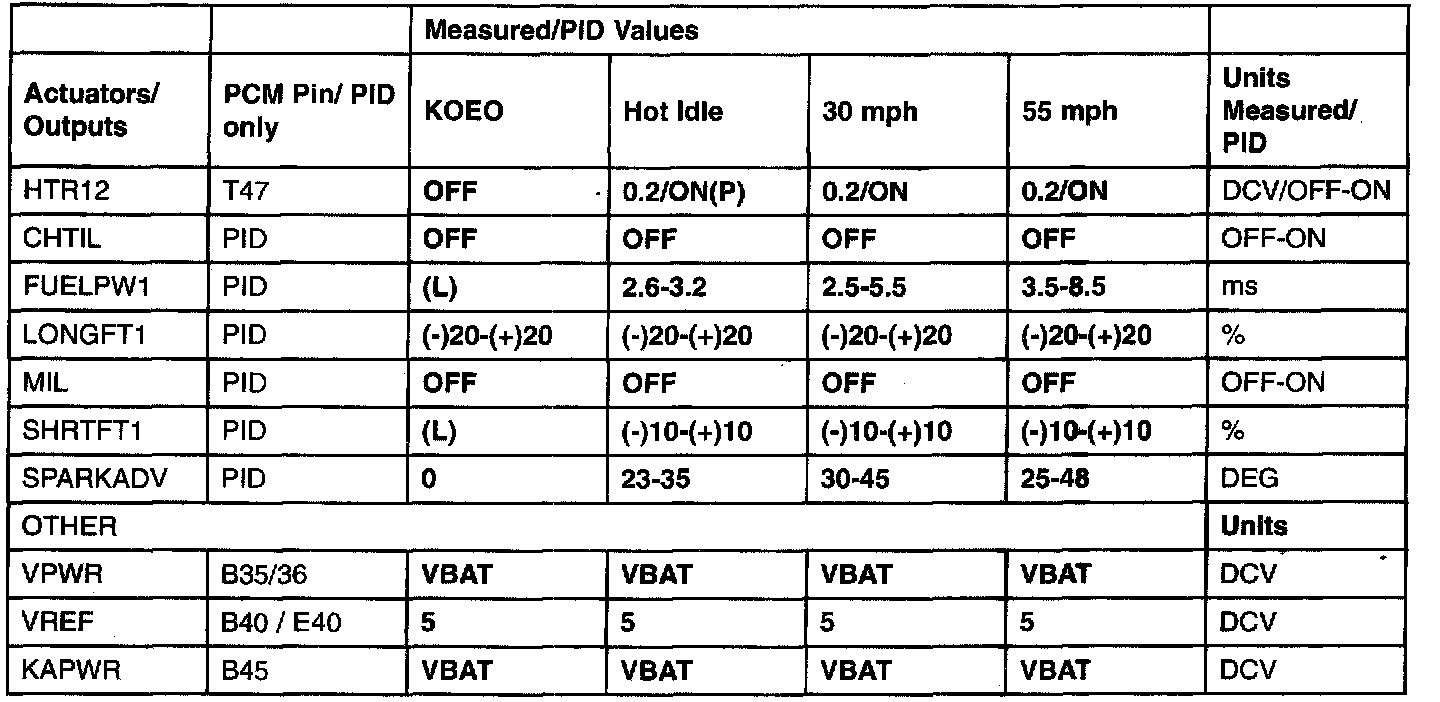

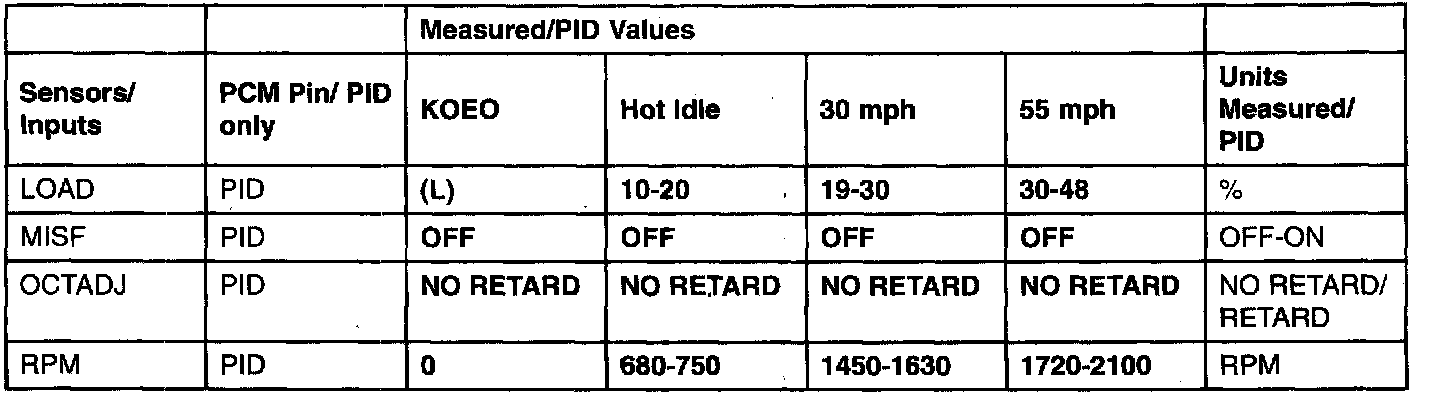

PID/DATA Monitor Reference Value (Part 2):

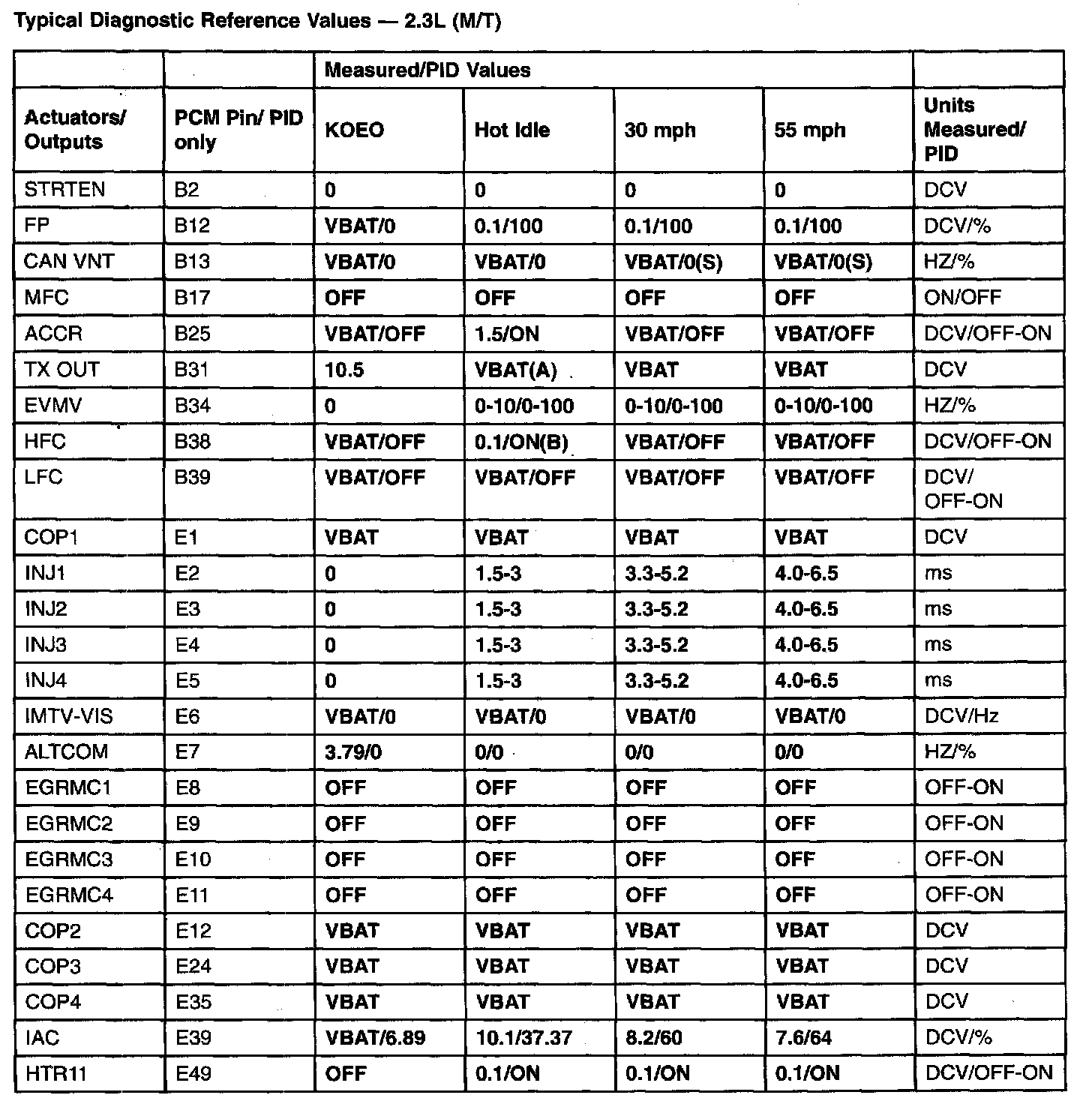

Typical Diagnostic Reference Values- (M/T) (Part 1):



Typical Diagnostic Reference Values - (M/T) (Part 2):



Generic OBD II PID Values - (M/T):
