Evaporative Emissions System: Diagrams

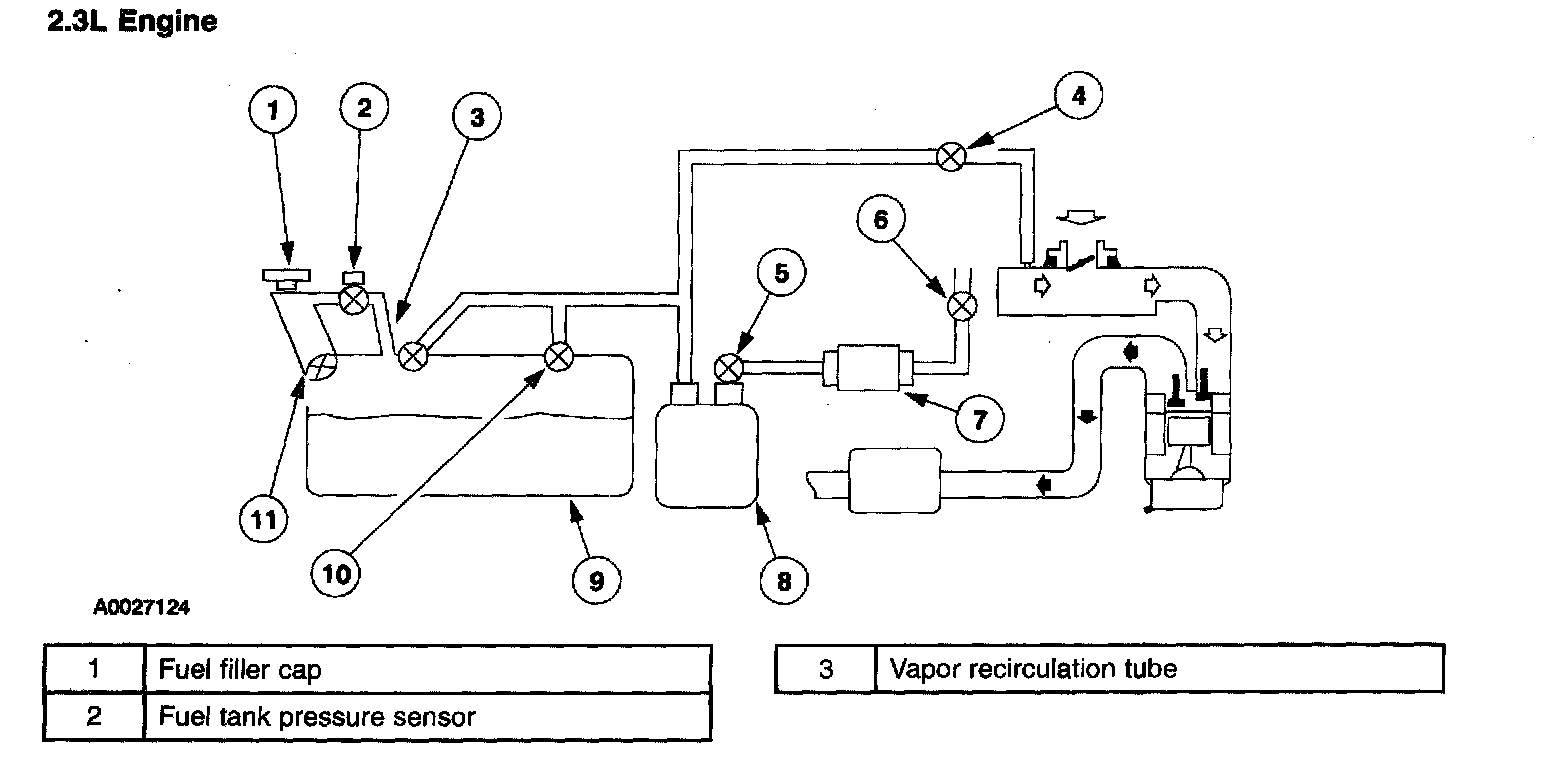

Evaporative Emission System (Part 1):

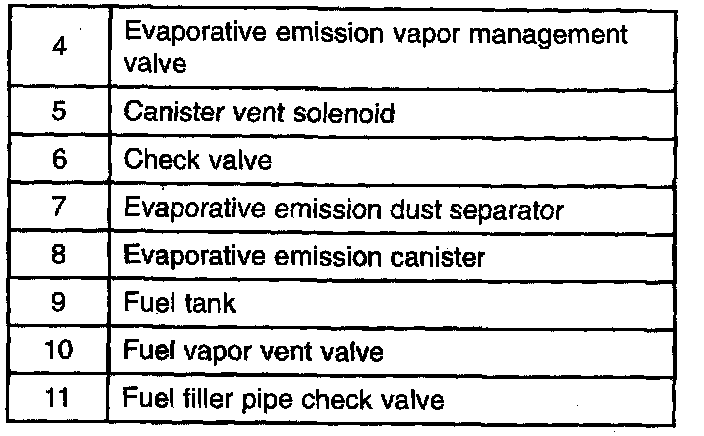

Evaporative Emission System (Part 2):
