Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2006
>>
Tribute 4WD L4-2.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
EGR Valve
>>
Locations
>>
Component Locations
Component Locations

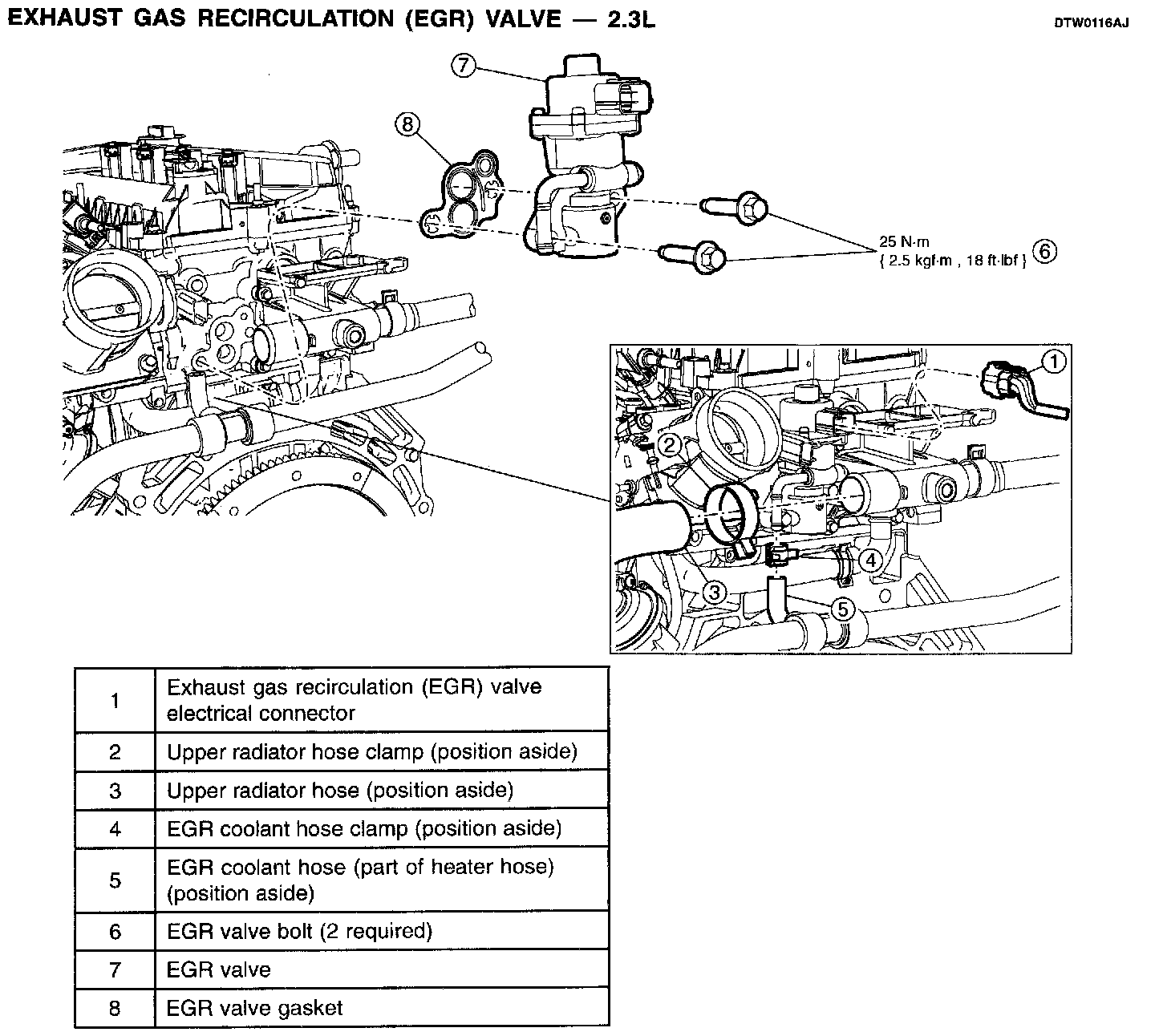

Exhaust Gas Recirculation (EGR) Valve:
