Oil Separator: Service and Repair

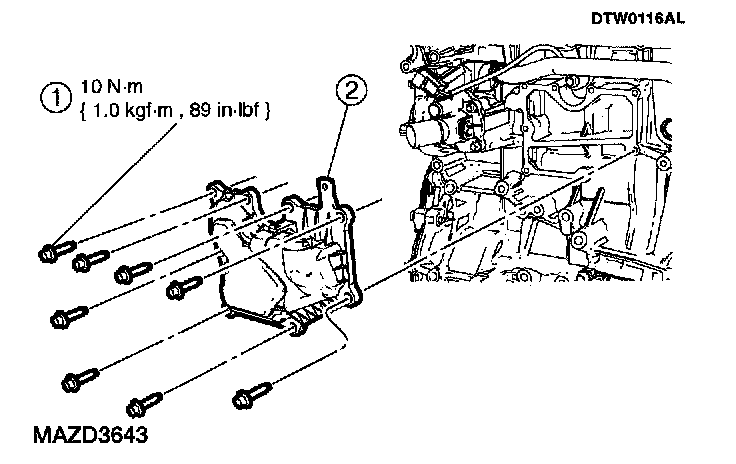

CRANKCASE VENT OIL SEPARATORRemoval and Installation
1. Remove the PCV valve.
2. Remove the crankcase vent oil separator.
1. Remove the bolts.
2. Remove the separator.
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the PCV valve.
2. Remove the crankcase vent oil separator.
1. Remove the bolts.
2. Remove the separator.
3. To install, reverse the removal procedure.
