Emission Compliance

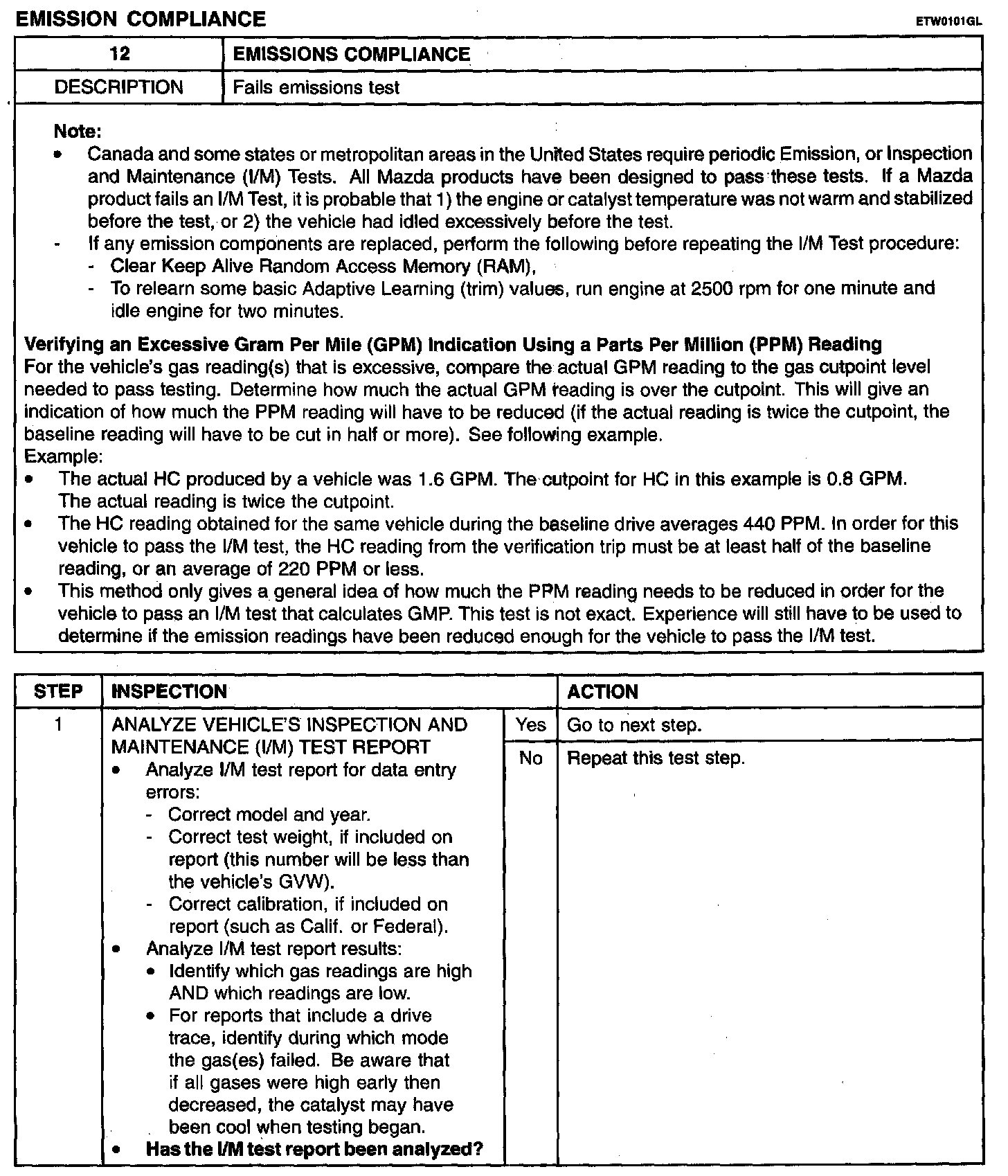

Step 1:



Step 2-Step 6:



Step 7-Step 15:

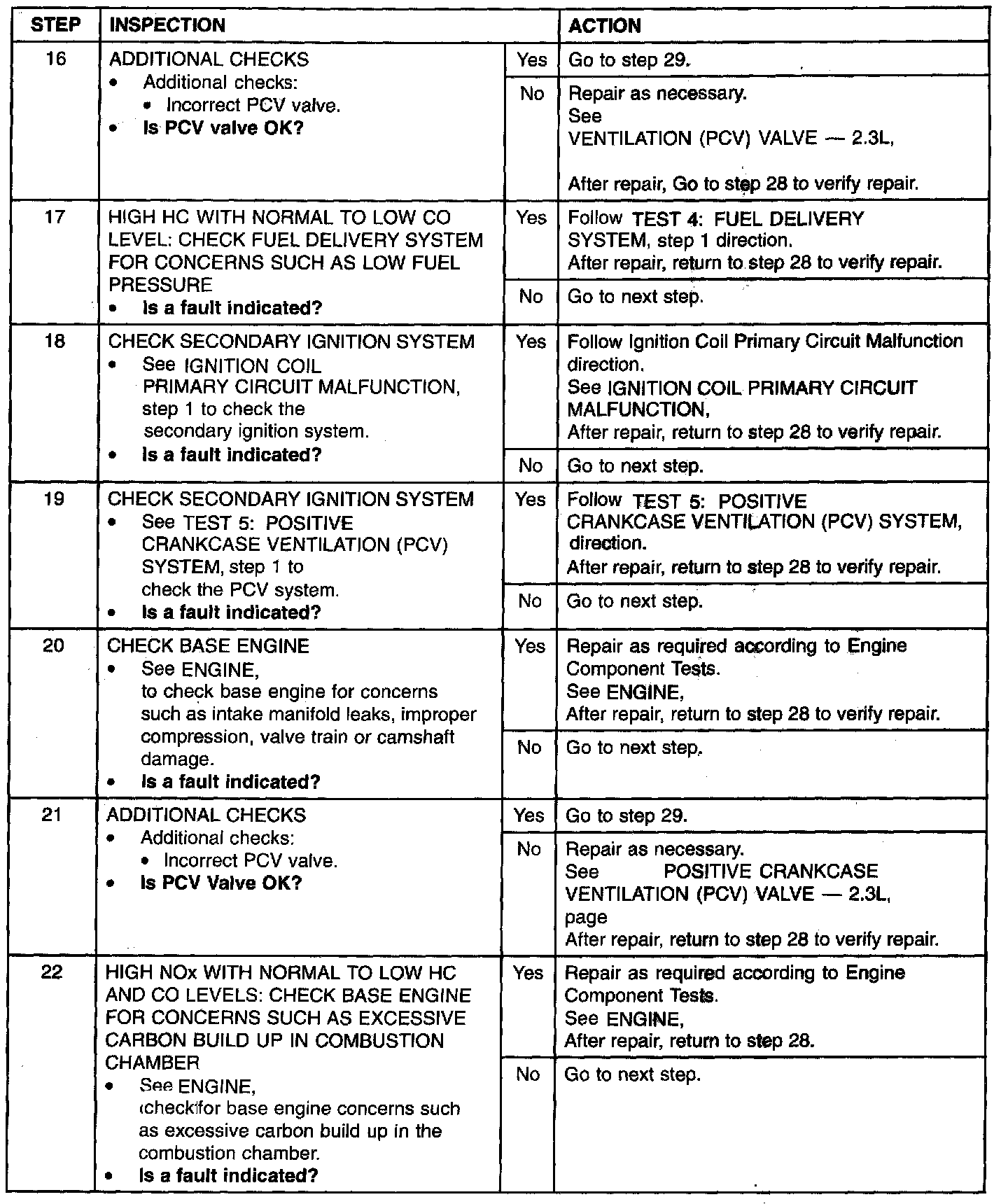

Step 16-Step 22:

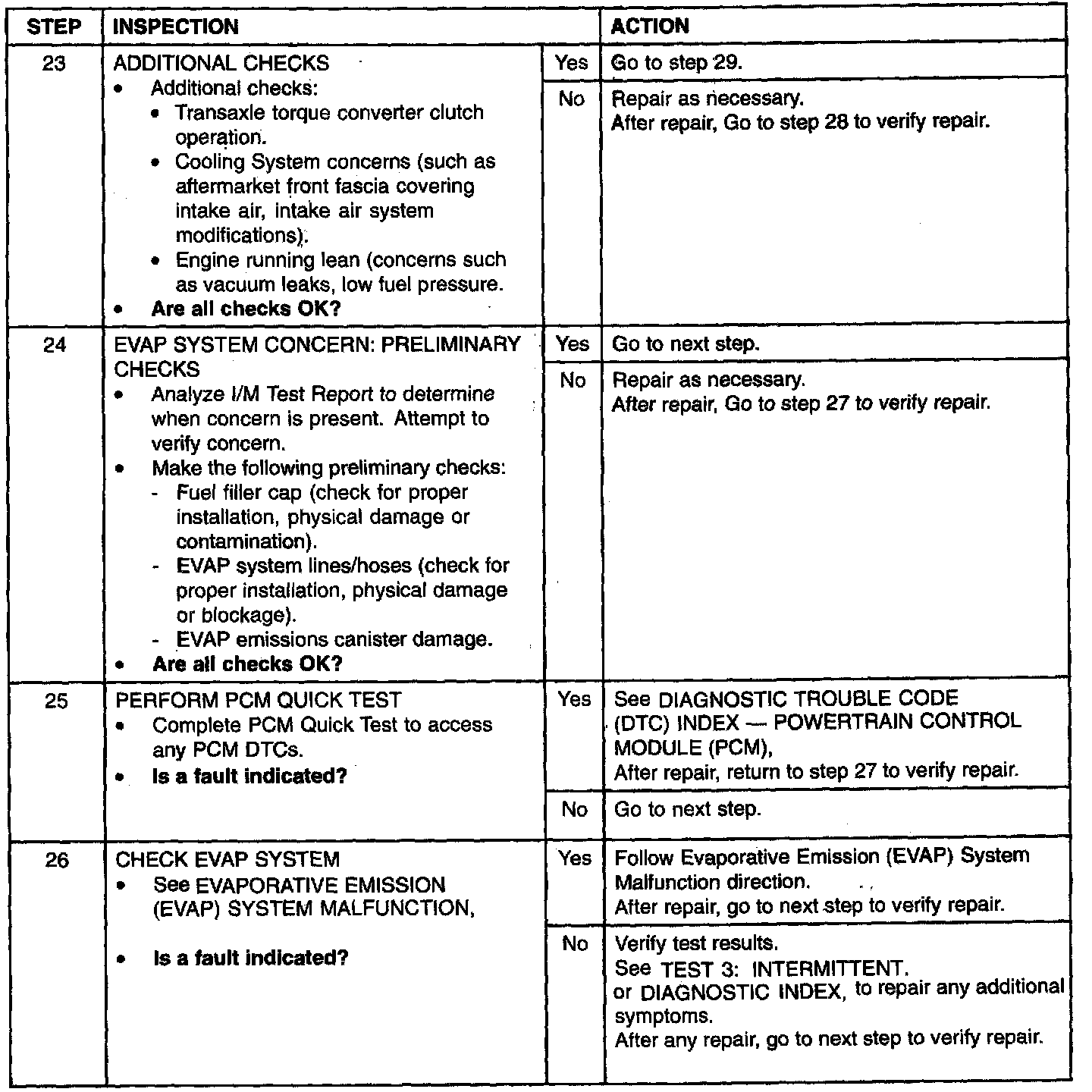

Step 23-Step 26:

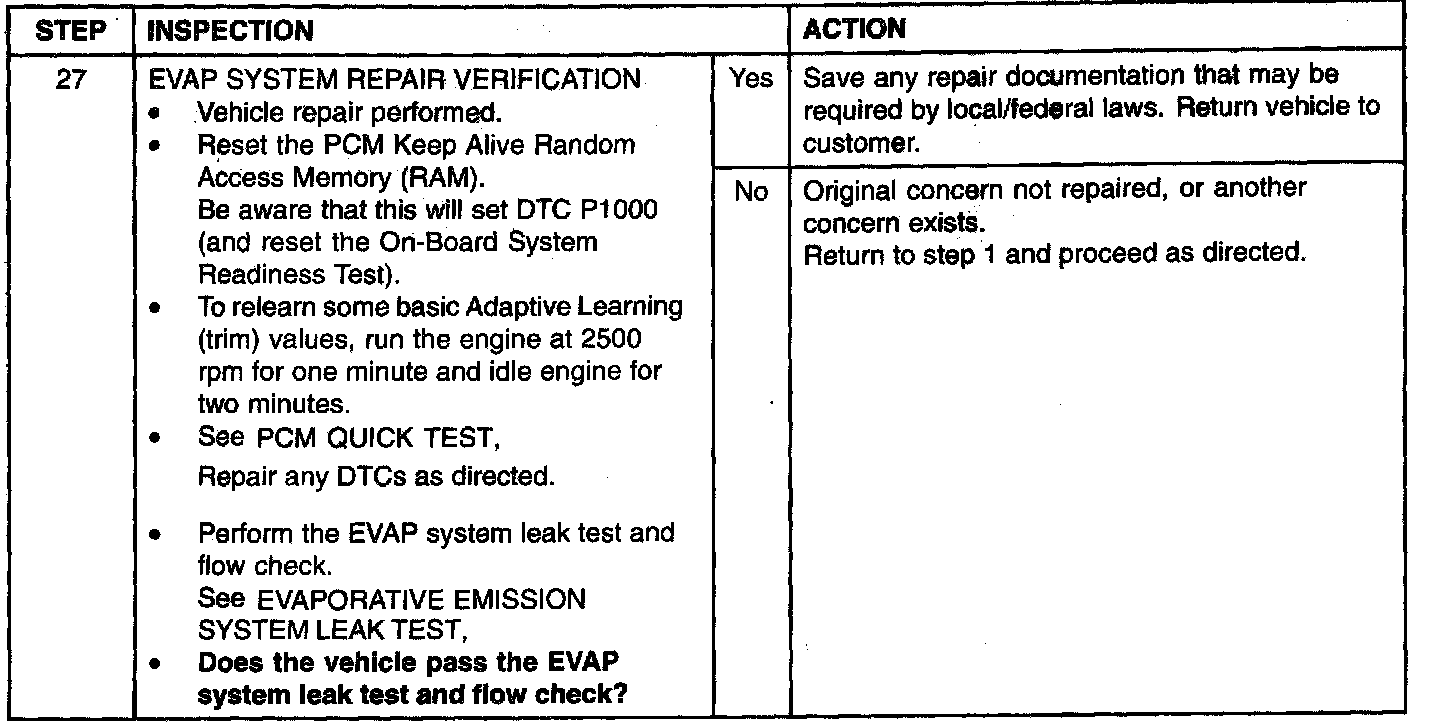

Step 27:

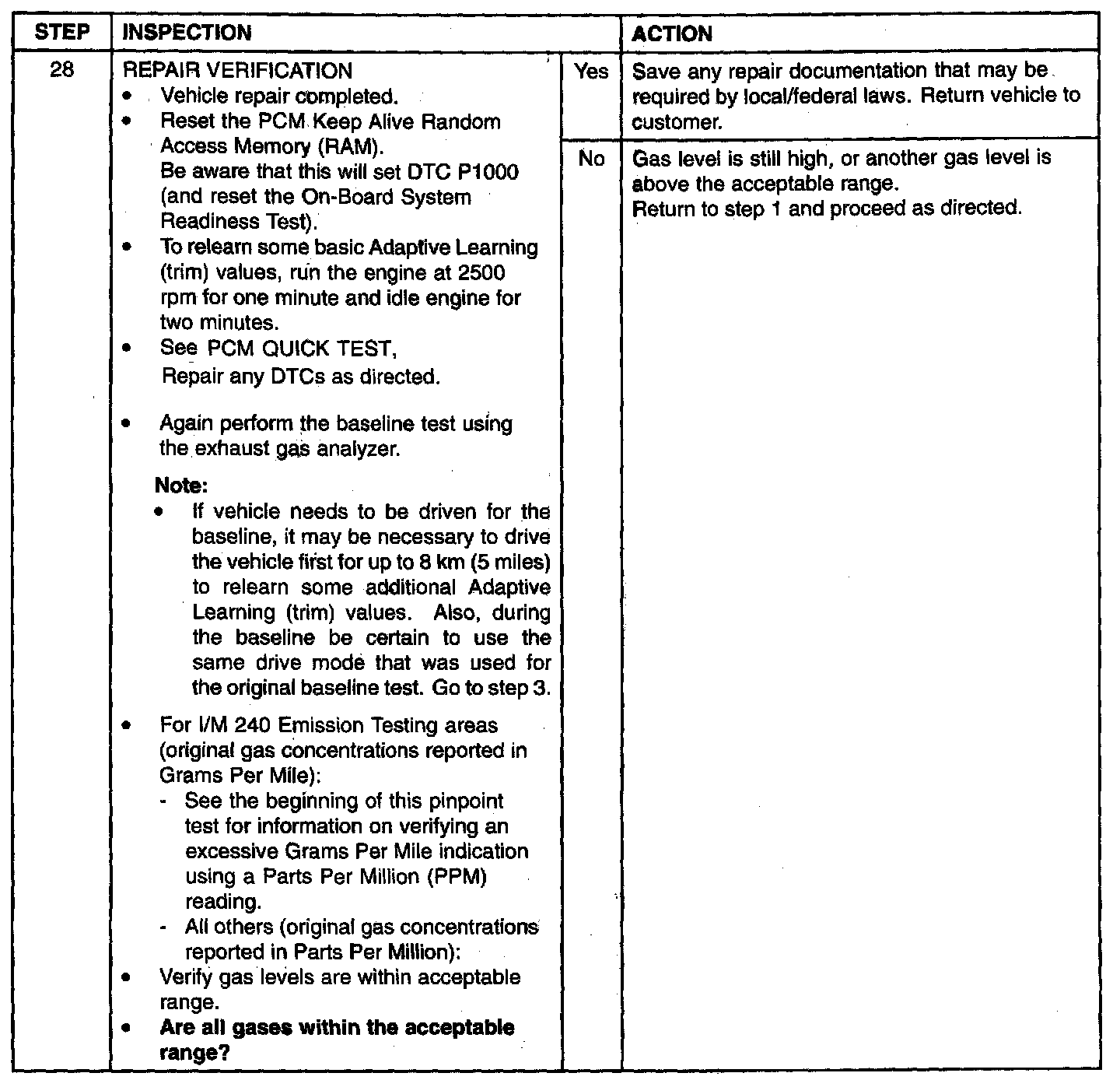

Step 28:



Step 2:
