Accelerator Pedal: Service and Repair
ACCELERATOR PEDAL AND SHAFTRemoval and Installation
WARNING: Make sure surrounding components such as wiring, hoses, sound insulation and floor carpeting are not contacting the sliding inner cable of the accelerator cable or the accelerator pedal and shaft. Failure to follow these instructions may result in personal injury.

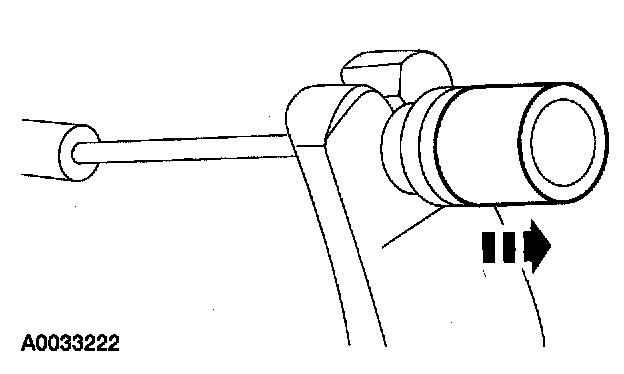

1. Remove the accelerator cable from the rubber plunger.

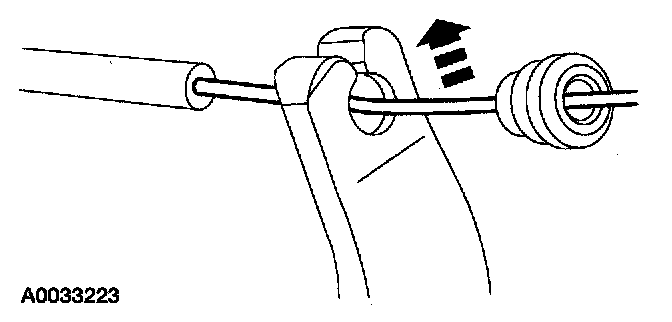

2. Position the plunger rearward and remove the cable from the accelerator pedal.

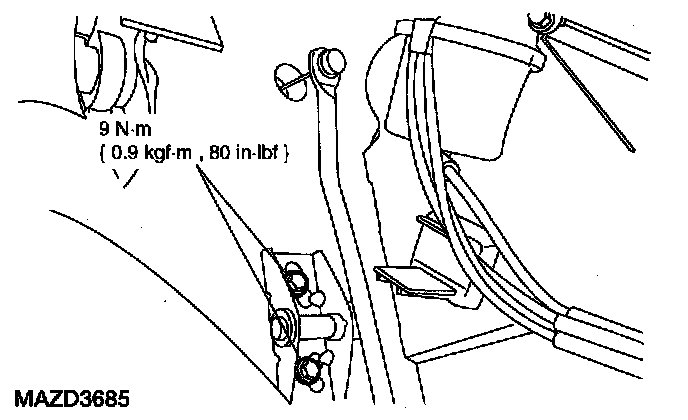

3. Remove the bolts and the accelerator pedal and shaft assembly.
4. To install, reverse the removal procedure.
