Sunroof / Moonroof Module: Service and Repair

ROOF OPENING PANEL MODULE

Removal and Installation

1. Remove the headliner.

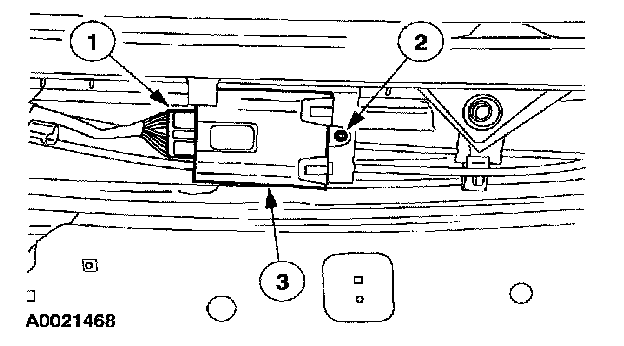

2. Remove the roof opening panel module.
1. Disconnect the electrical connector.
2. Remove the pin-type retainer.
3. Remove the roof opening panel module.

3. To install, reverse the removal procedure.
