Impact Sensor
>>
Locations
>>
Component Locations
Component Locations

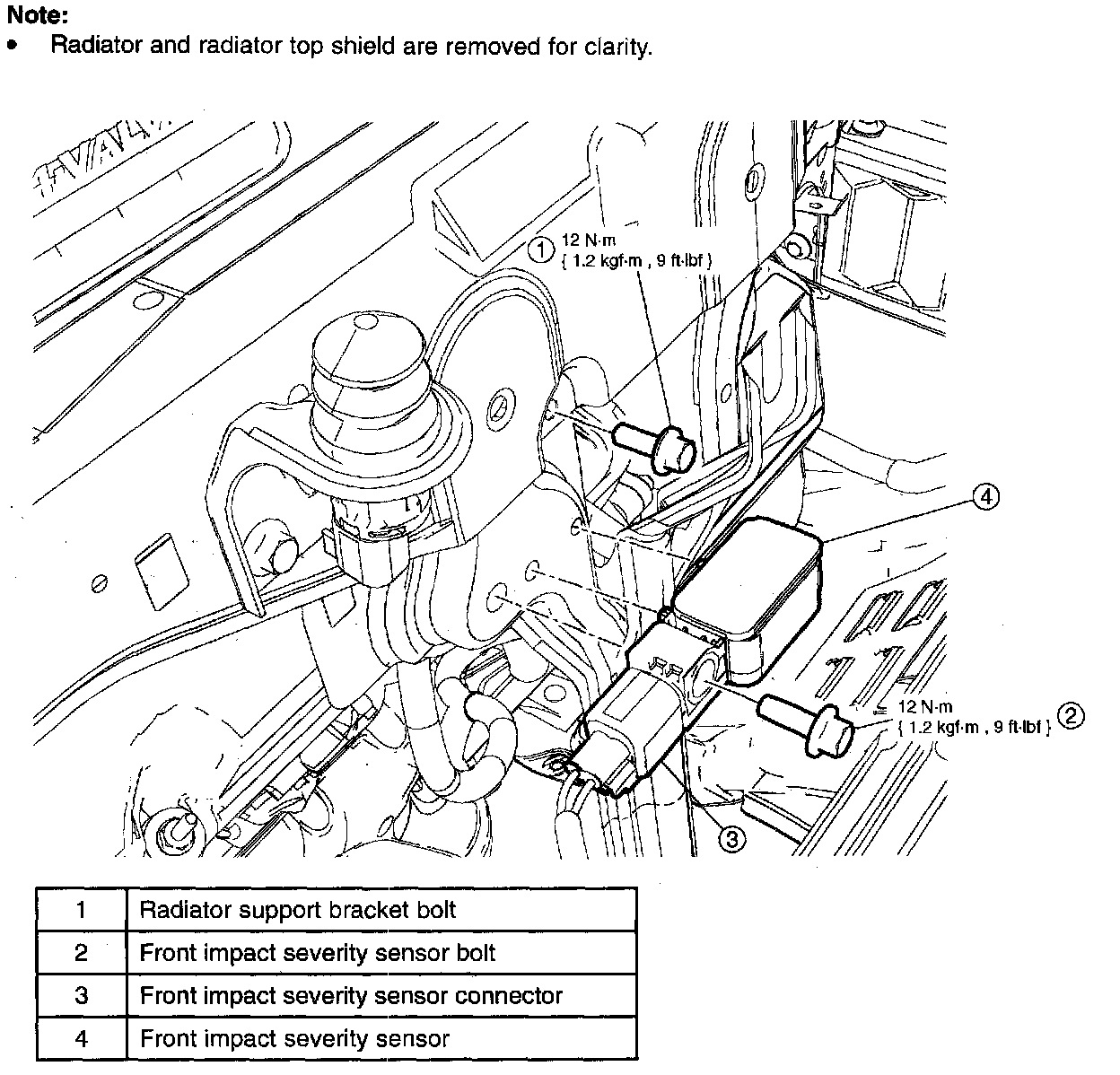

Front Impact Severity Sensor:

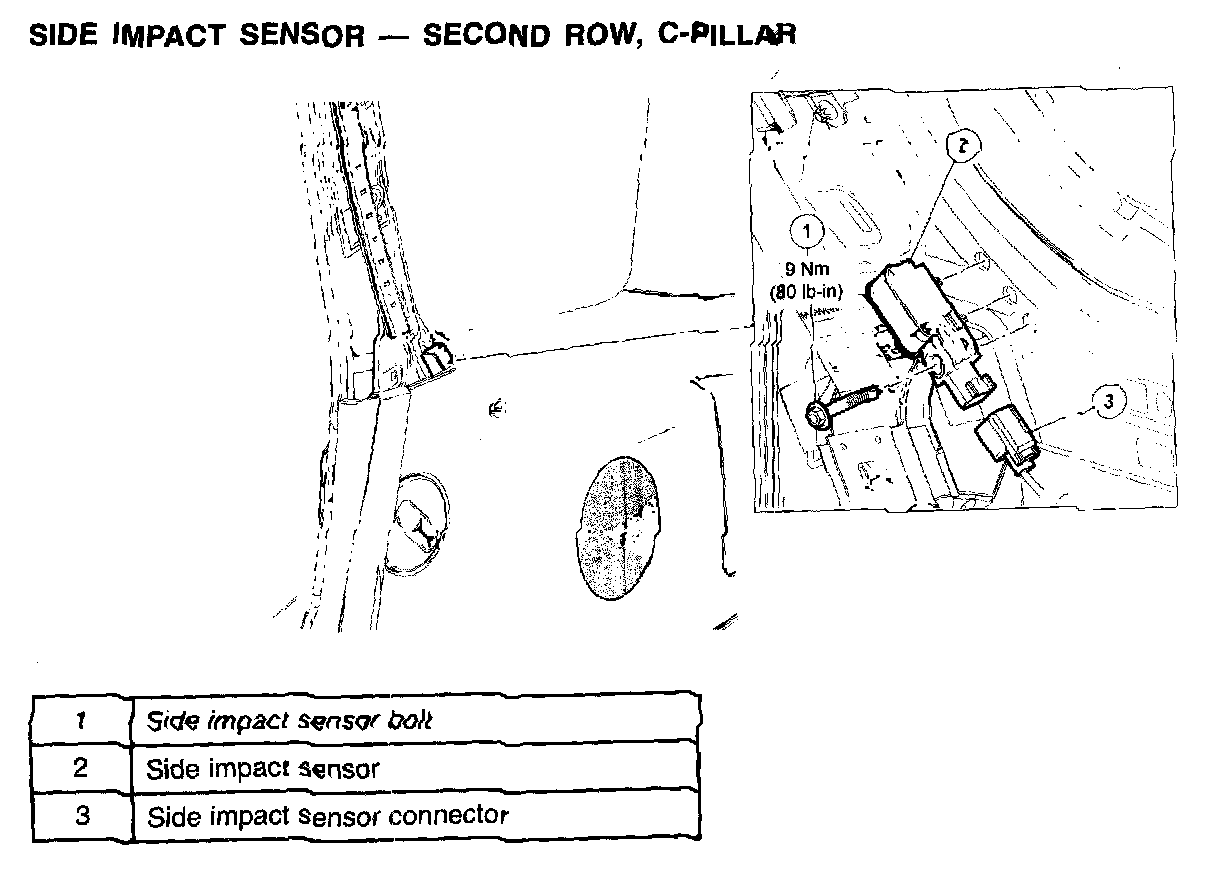

Side Impact Sensor:

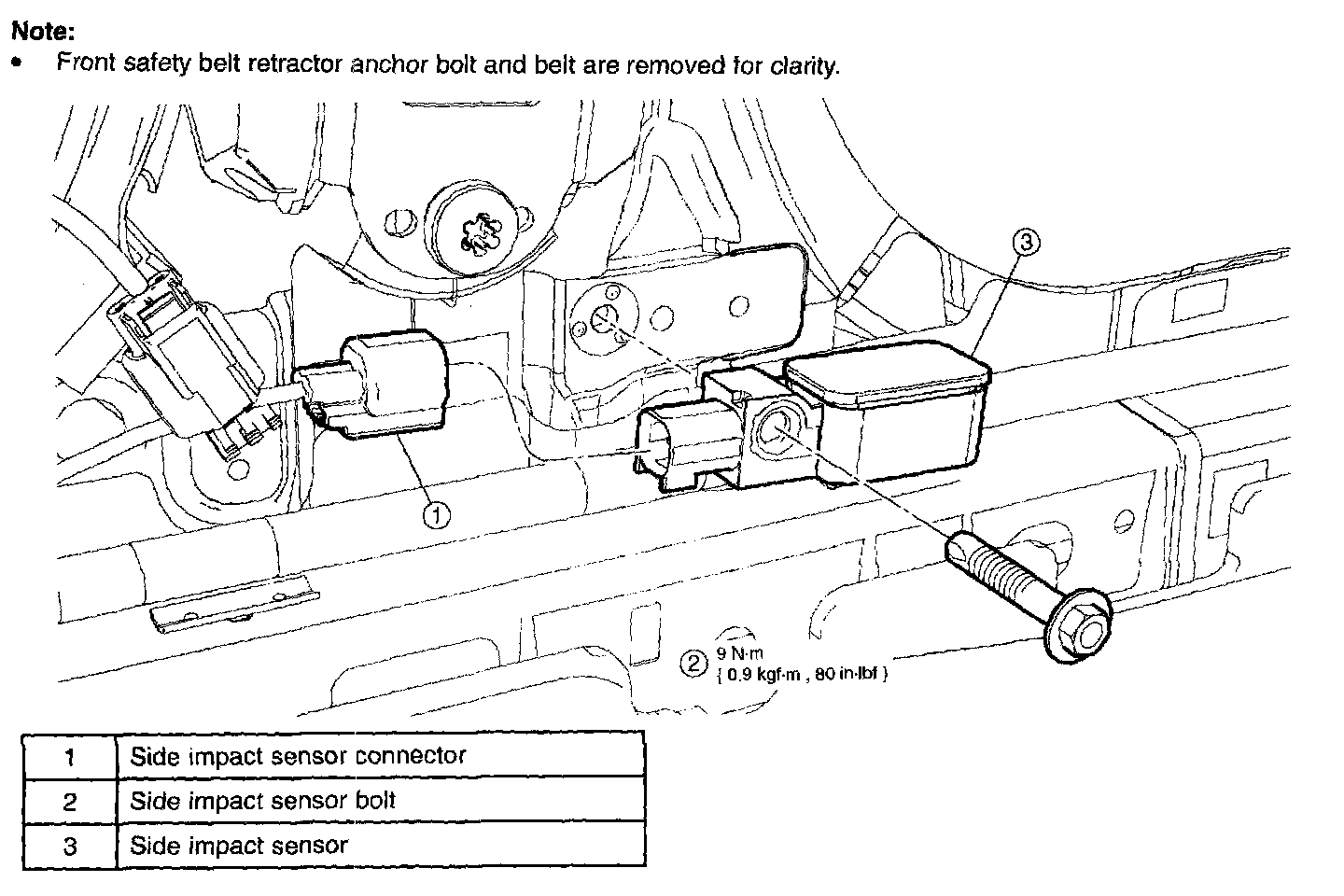

Side Impact Sensor:
