Pinpoint Test 1

PINPOINT TEST 1: AIR BAG WARNING INDICATOR IS ILLUMINATED CONTINUOUSLY - RCM DISCONNECTED, INOPERATIVE OR LOST/LOW IGNITION FEED

Normal Operation

NOTE: During normal operation, the air bag indicator will illuminate continuously for 6 seconds after the ignition switch is placed to the RUN or ON position and after 5 cycles of a lamp fault code (LFC) if a fault exists. Be sure to cycle the ignition switch and look for a 6-seconds indicator prove-out without LFCs.

The restraints control module (RCM) will communicate diagnostic trouble codes (DTCs) to the diagnostic tool through the data link connector (DLC). If the diagnostic tool displays NO COMMUNICATION when retrieving continuous DTCs, See PINPOINT TEST 26: NO COMMUNICATION WITH THE RESTRAINTS CONTROL MODULE (RCM).

Possible Causes
- fuse
- damaged ignition circuit
- RCM disconnected from the vehicle harness
- a loss of RCM signal ground
- damaged wiring, terminals or connectors
- loss of RCM battery feed
- instrument cluster
- a faulted RCM

WARNING: Restraint system diagnostic tools are for service only. Tools must be removed prior to operating the vehicle over the road. Failure to remove restraint system diagnostic tools could result in injury and possible violation of vehicle safety standards.

WARNING: Do not handle, move or change the original horizontal mounting position of the RCM while the RCM is connected and the ignition switch is ON. Failure to follow these instructions may result in the inadvertent deployment of the safety canopy and risk of personal injury.

WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.

WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result In pretensioner or air bag deployment and could result in personal injury.

WARNING: Never probe the electrical connector on a safety canopy module. Doing so can result in safety canopy deployment. Failure to follow these instructions may result in personal injury.

NOTE: After diagnosing or repairing a supplemental restraint system (SRS), the restraint system diagnostic tools must be removed before operating the vehicle over the road.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.

NOTE: If a seat equipped with a SRS component is being serviced, the SRS must be depowered.

CAUTION: When installing a new RCM, always make sure the correct RCM is being installed. The RCM 40-pin connector is keyed differently for vehicles with safety canopies and side air bags than the 40-pin connector for vehicles without safety canopies and side air bags. Do not force the 40-pin connector onto the RCM. If the connector is forced onto the RCM, damage to the RCM and/or connector will occur.

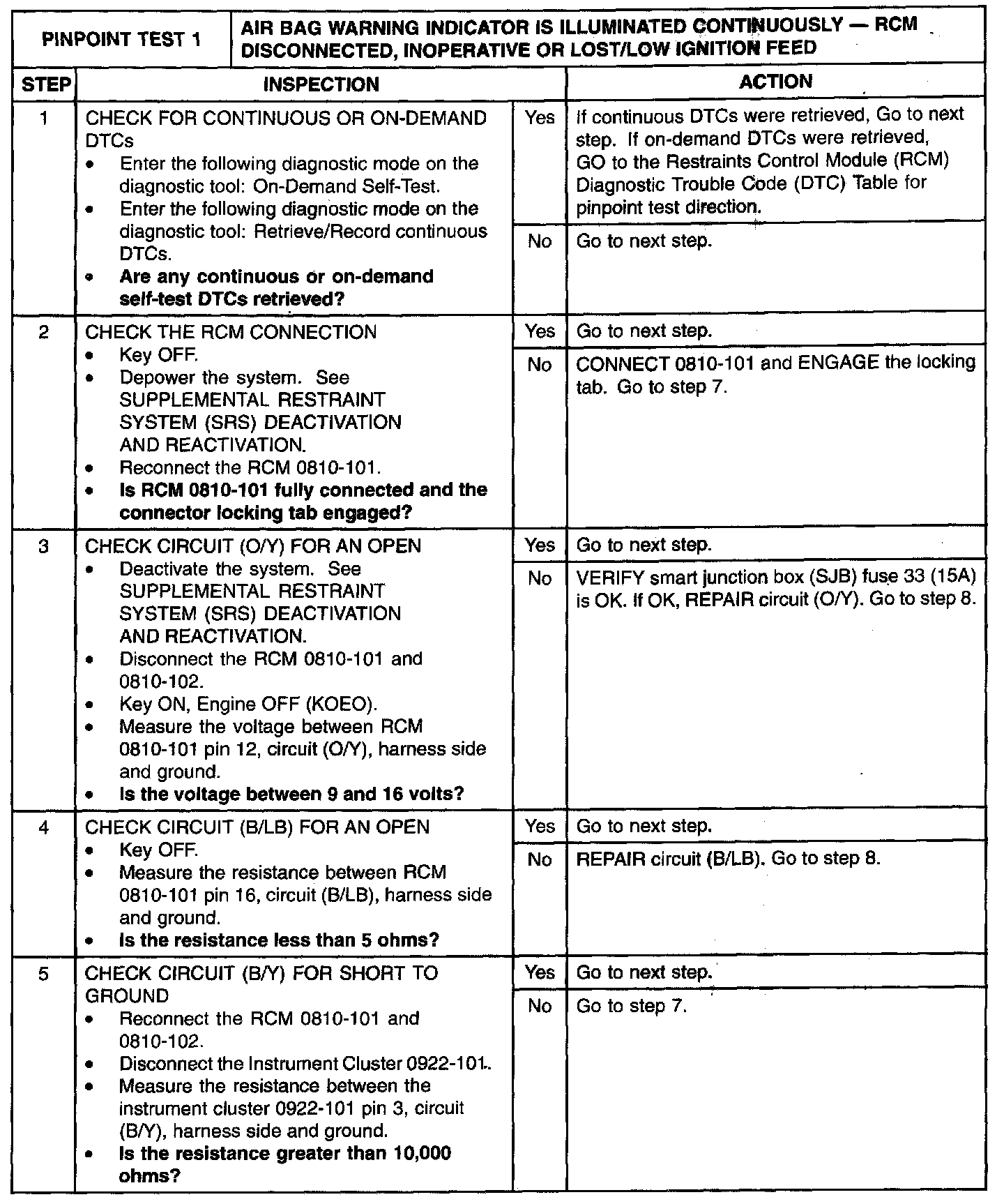

Step 1-Step 5:

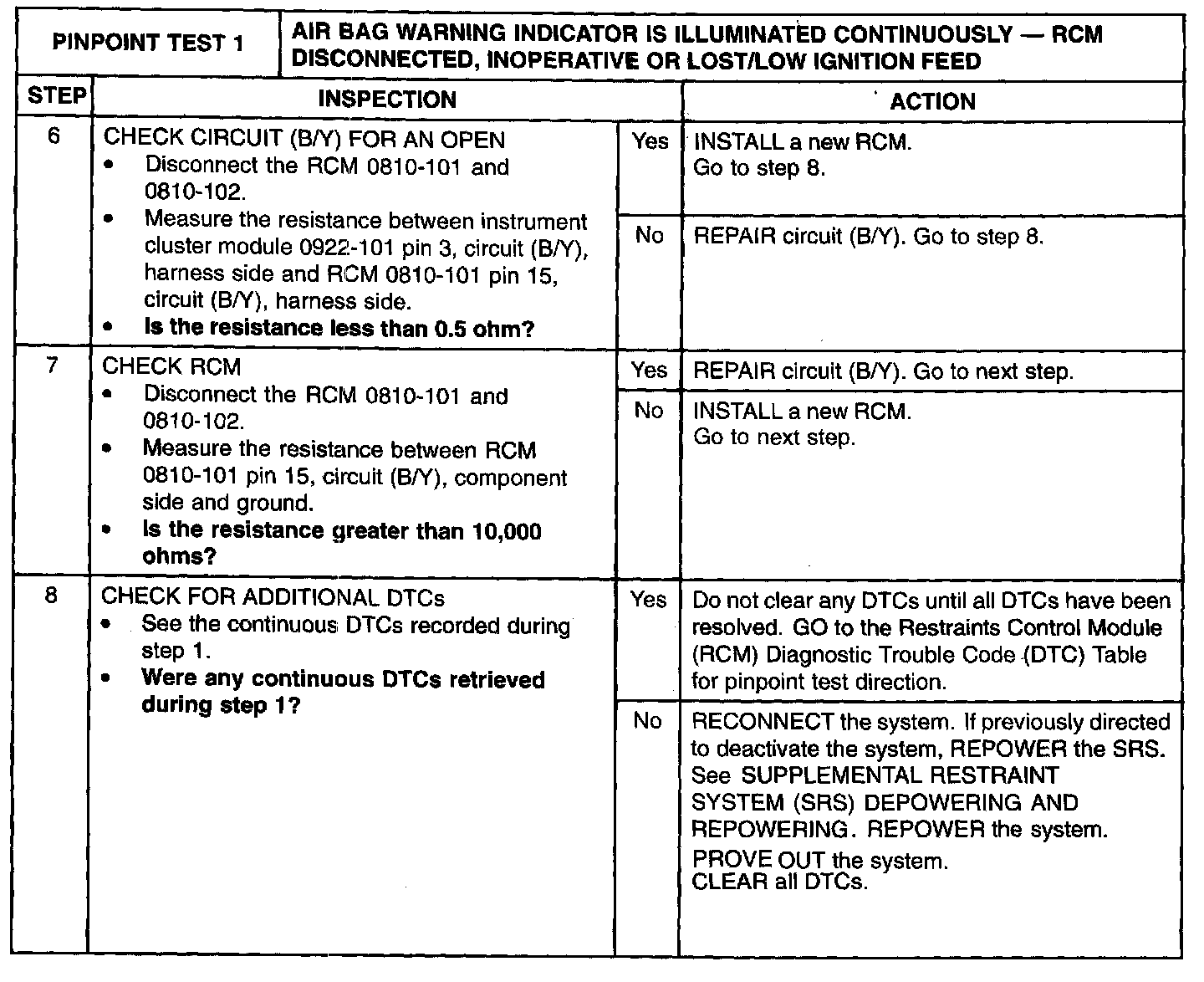

Step 6-Step 8:
