Restraints and Safety Systems: Diagrams

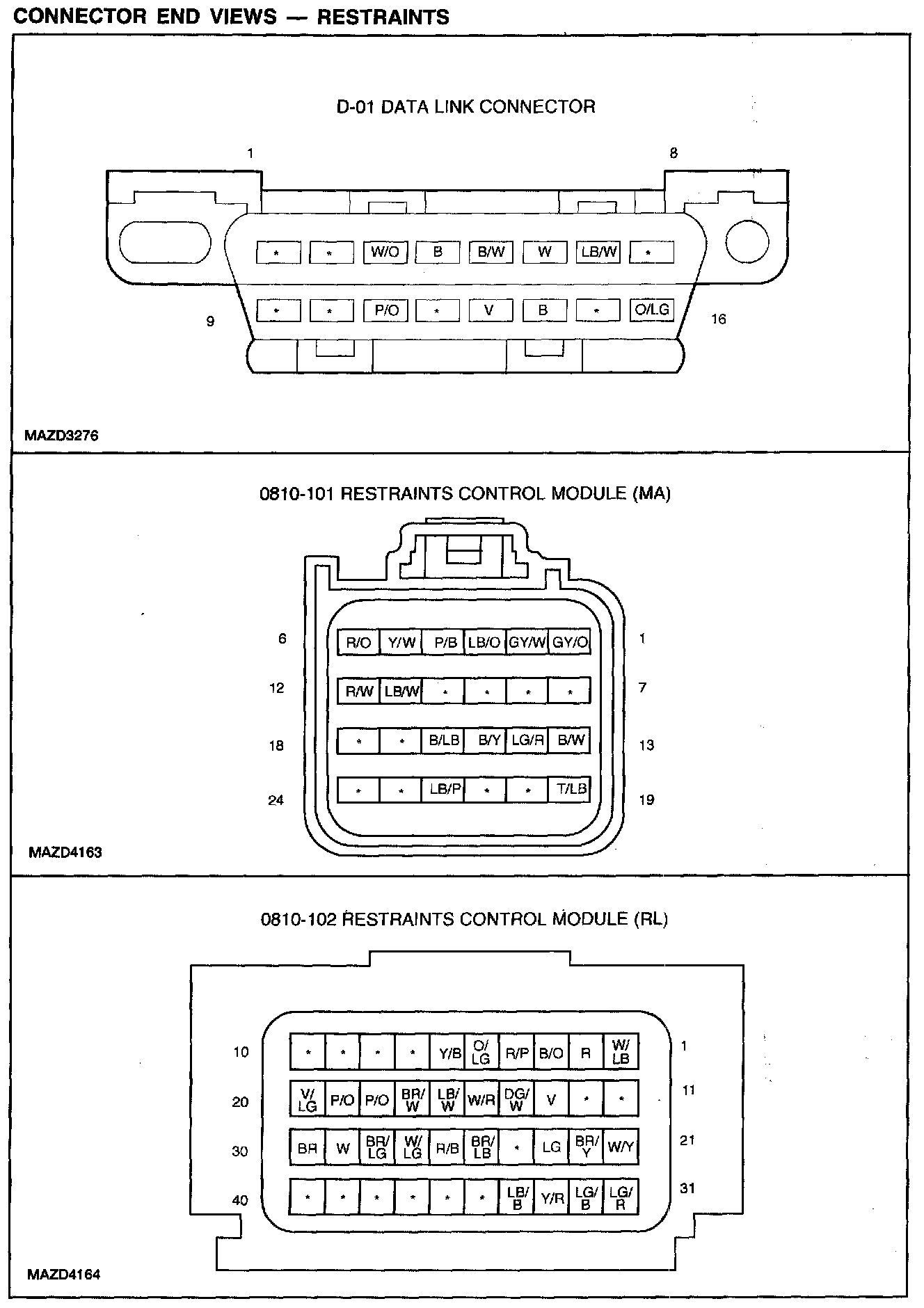

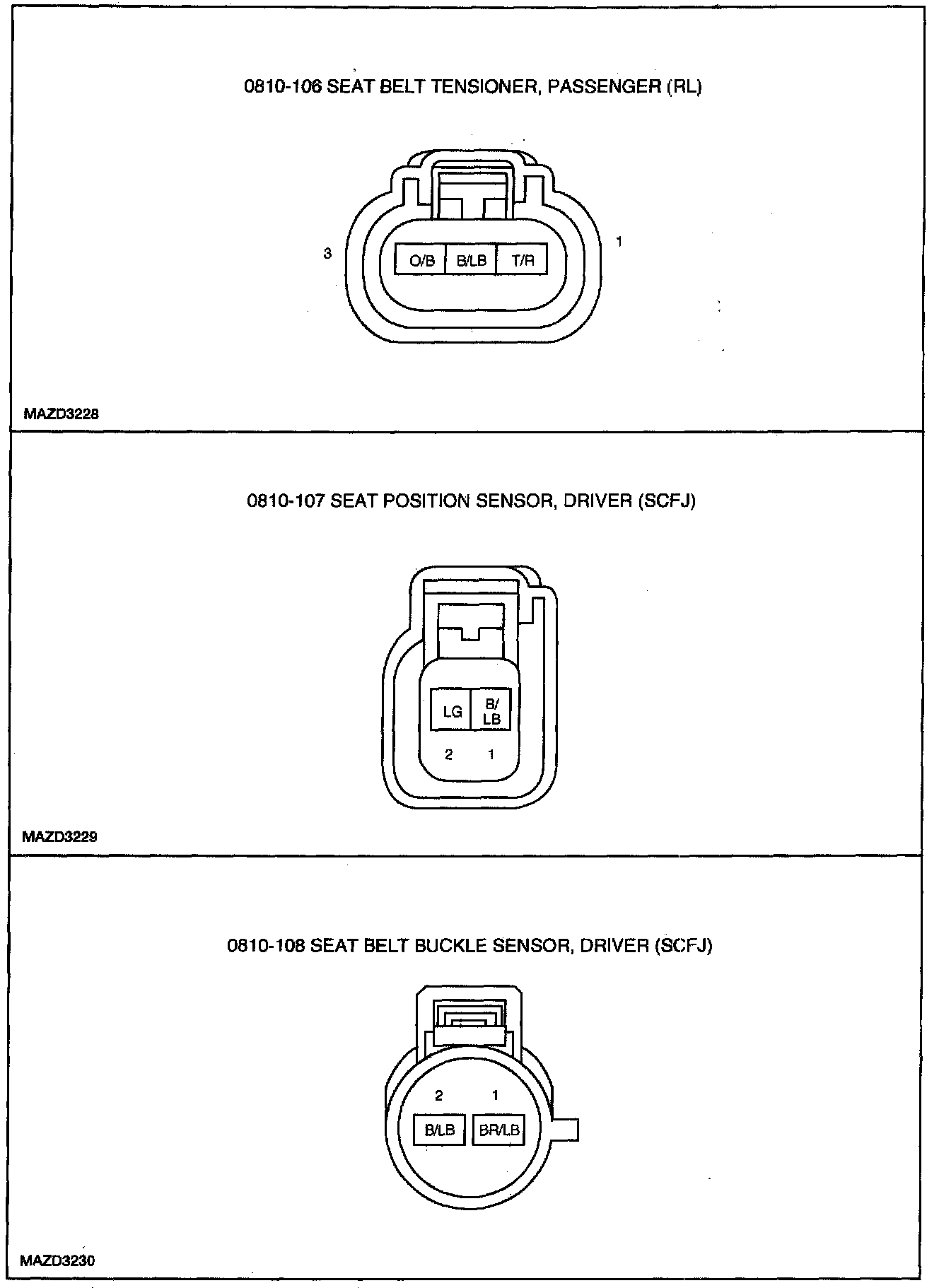

Connector End Views-Restraints:

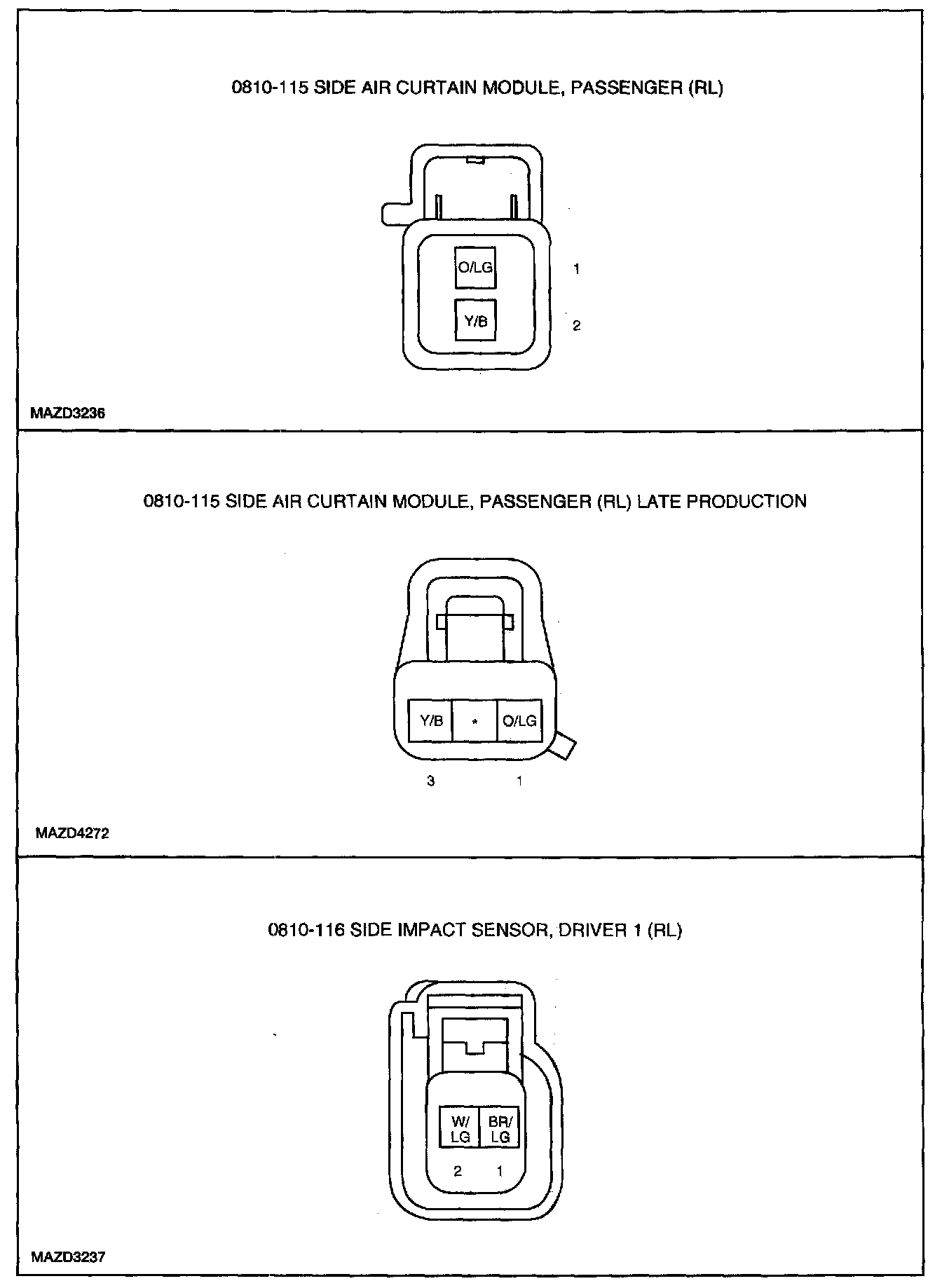

Connector End Views-Restraints:

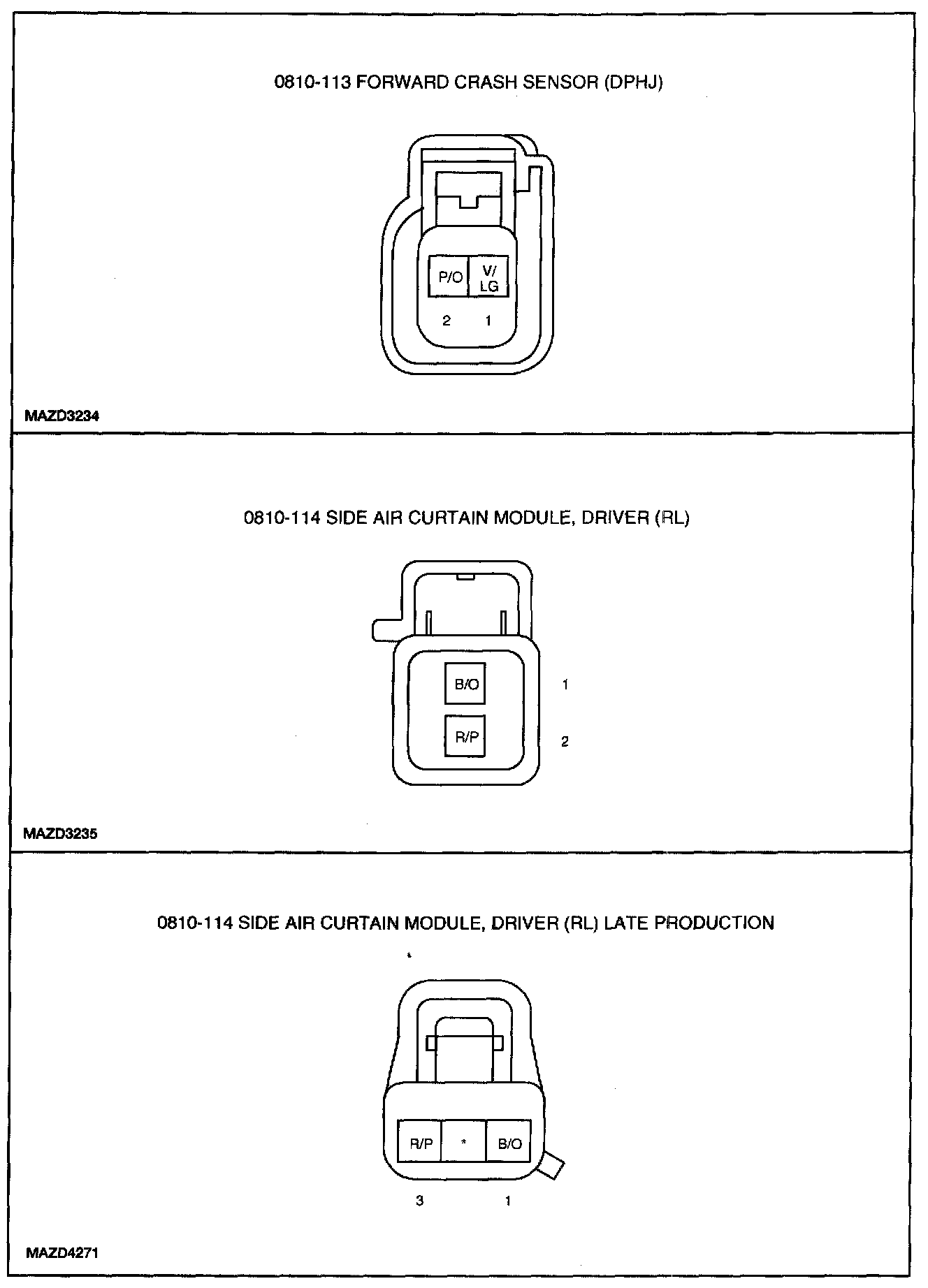

Connector End Views-Restraints:

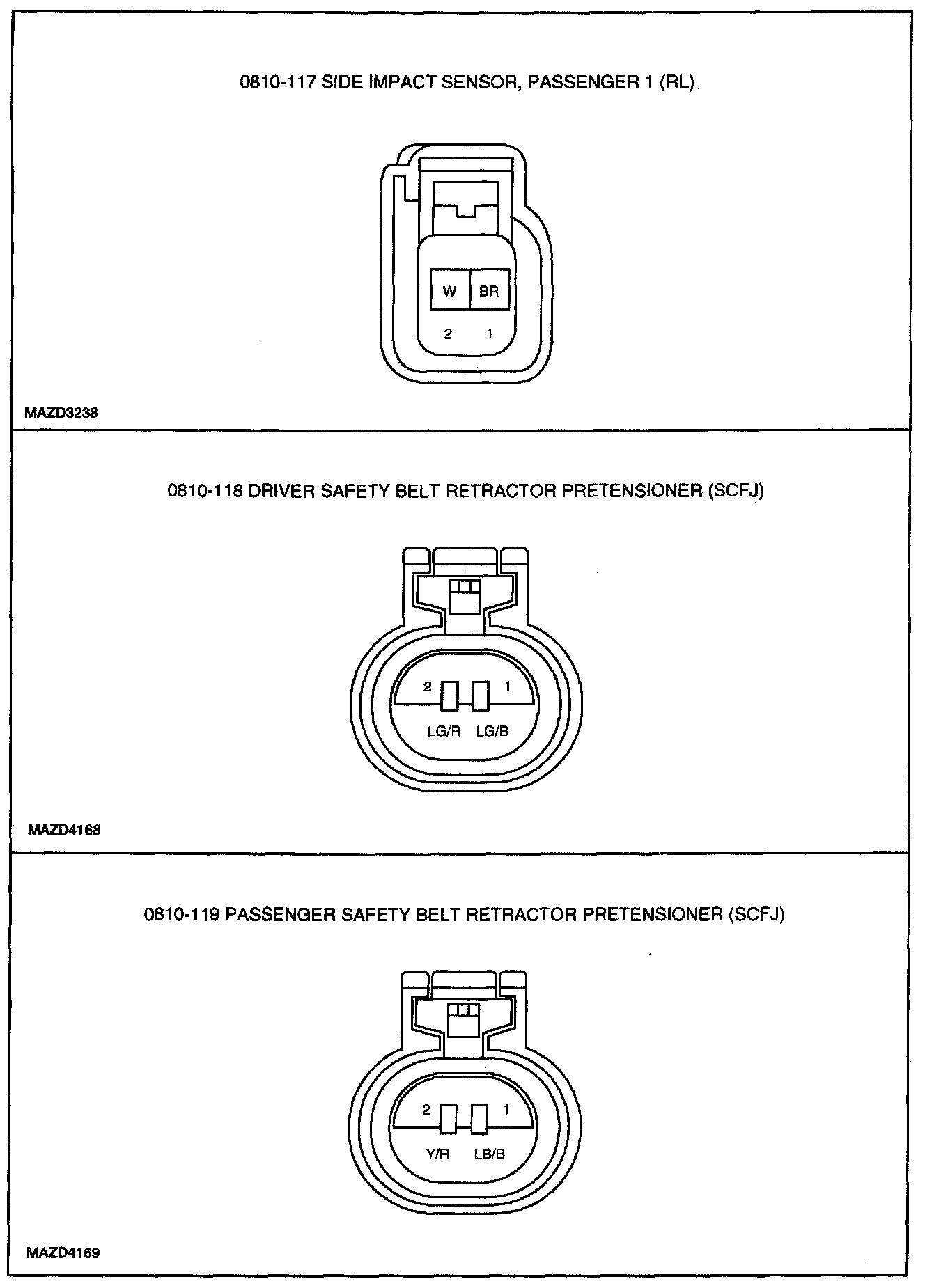

Connector End Views-Restraints:

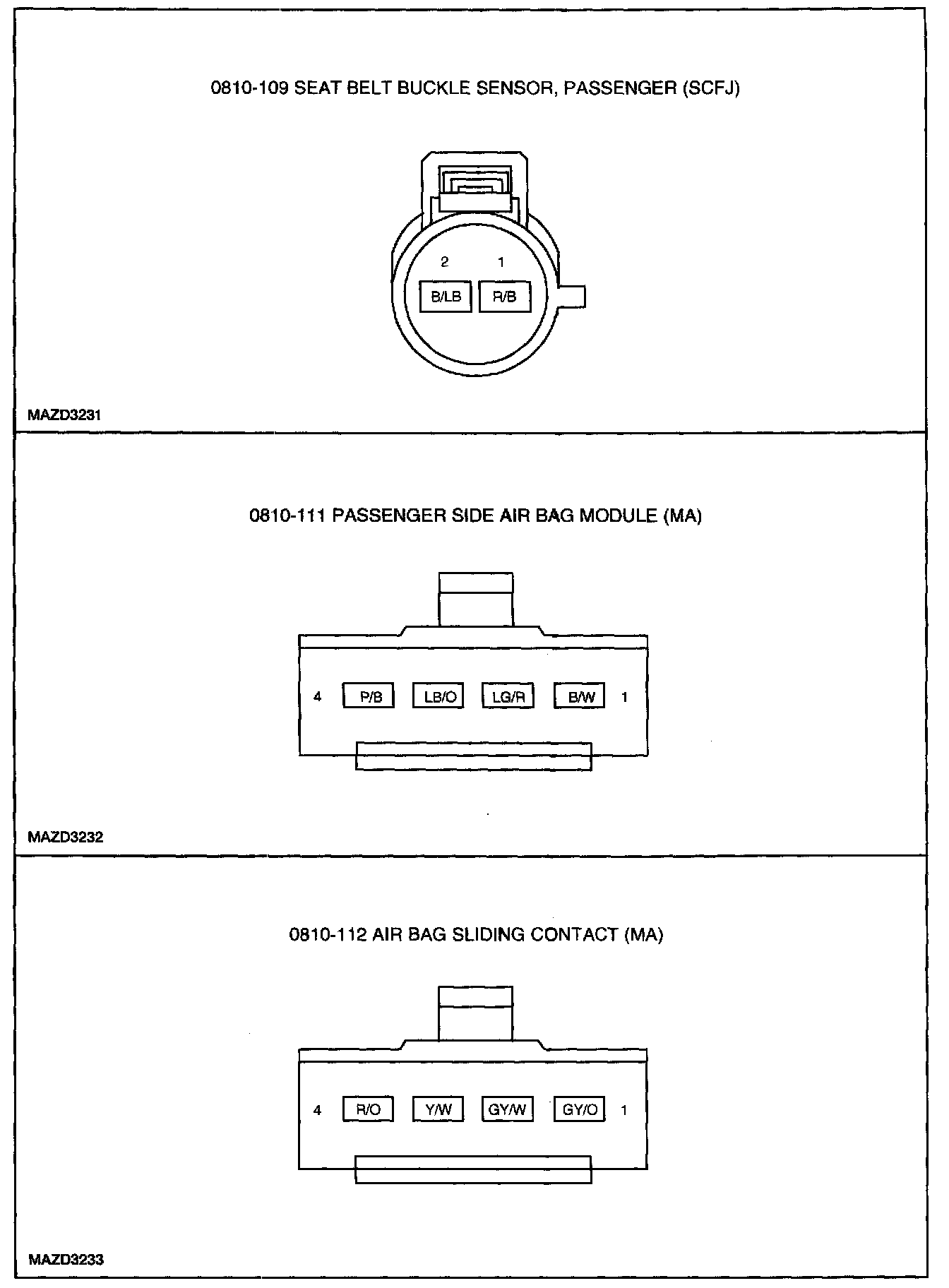

Connector End Views-Restraints:

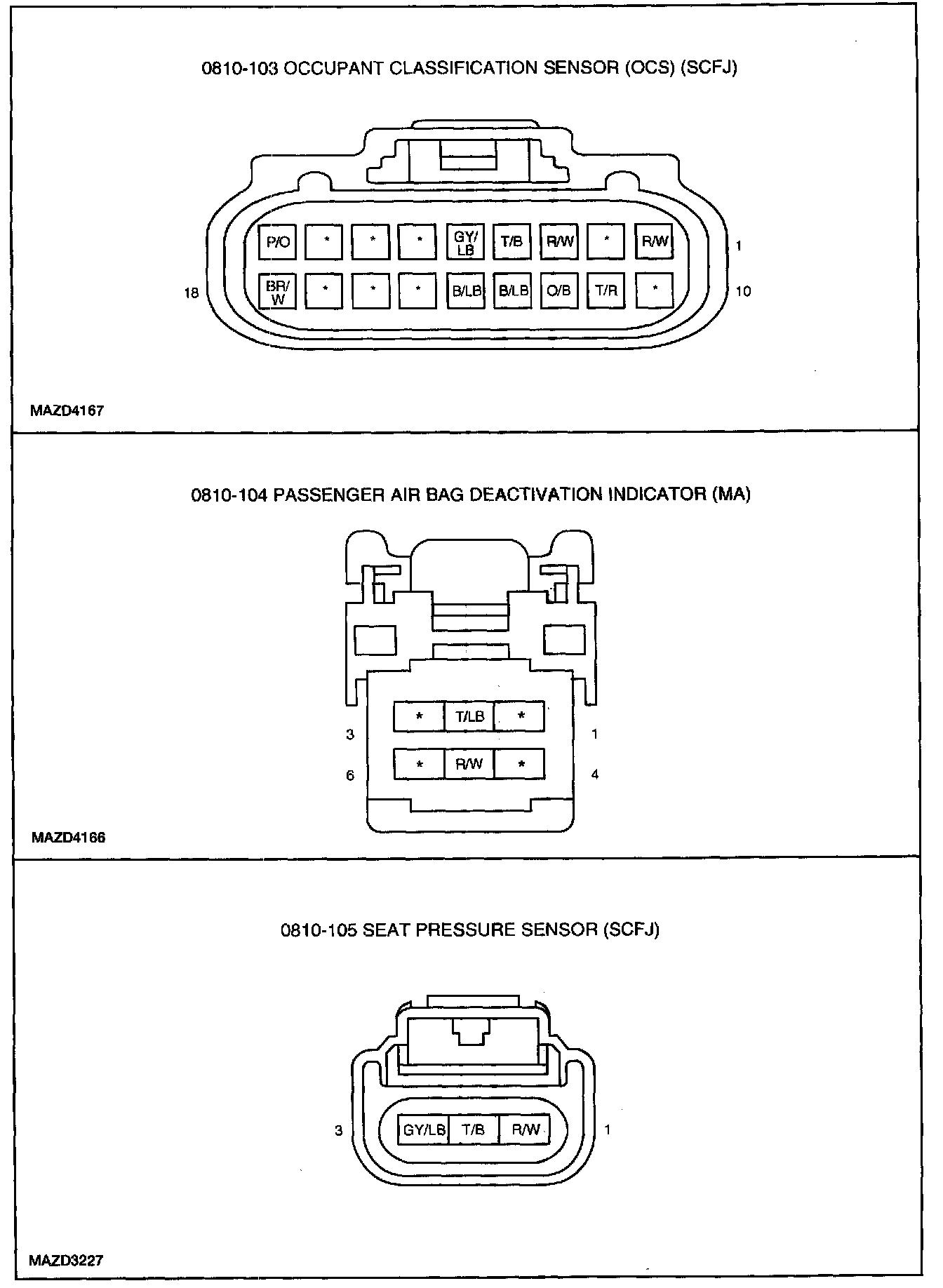

Connector End Views-Restraints:

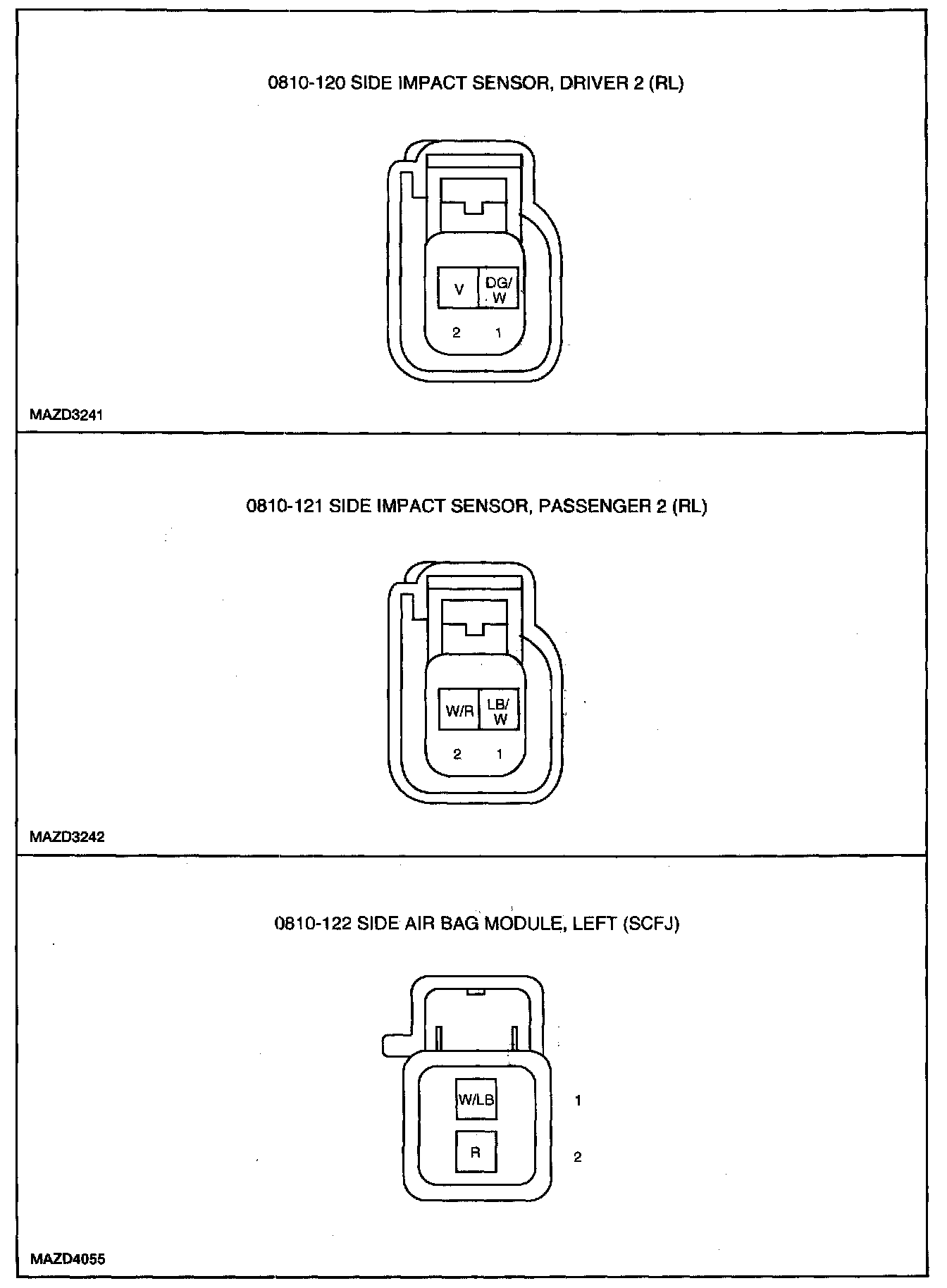

Connector End Views-Restraints:

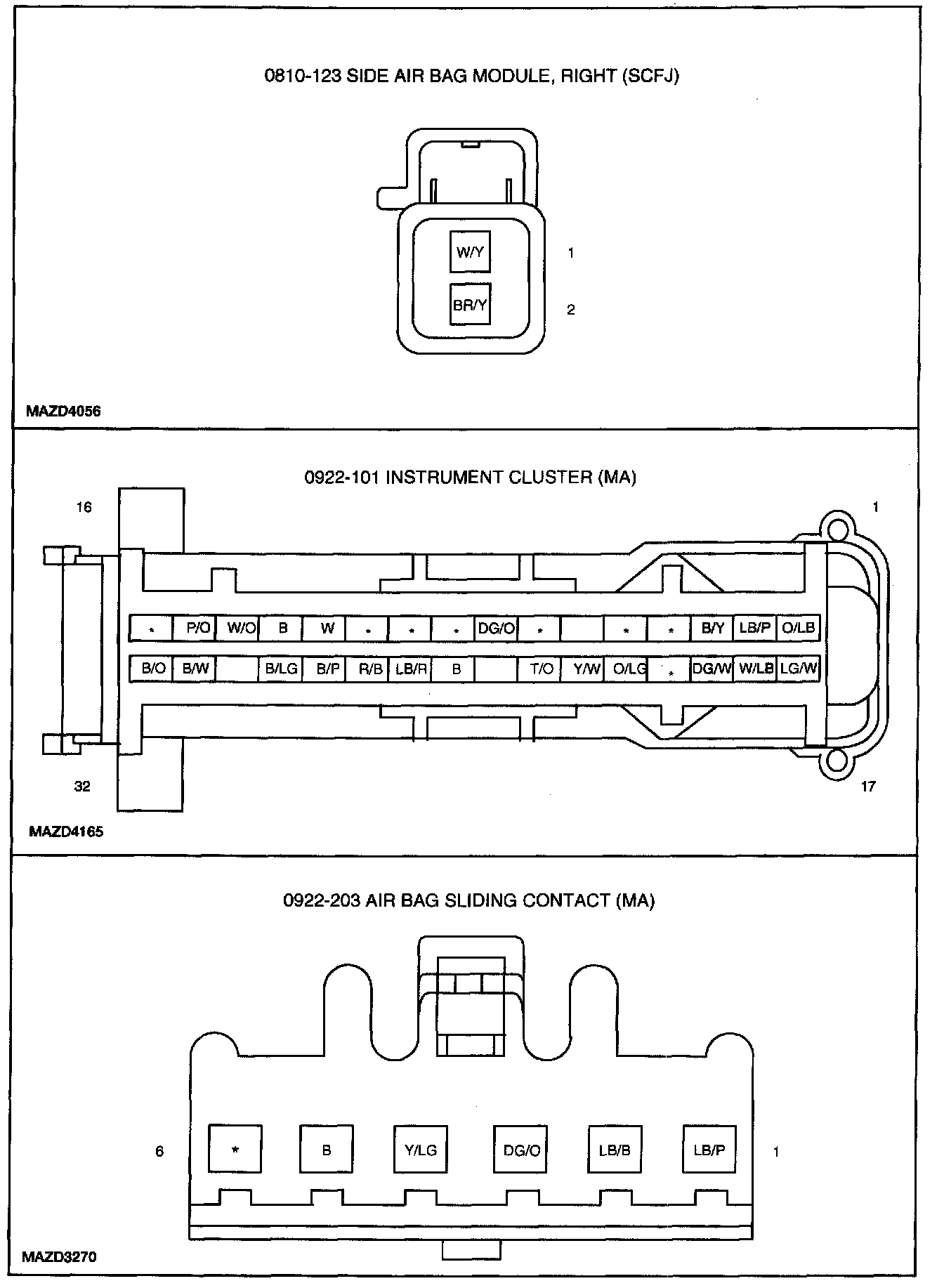

Connector End Views-Restraints:



Connector End Views-Restraints:
