Home >> Mazda >> 2006 >> Tribute 4WD L4-2.3L >> Repair and Diagnosis >> Starting and Charging >> Battery >> Locations

Battery: Locations

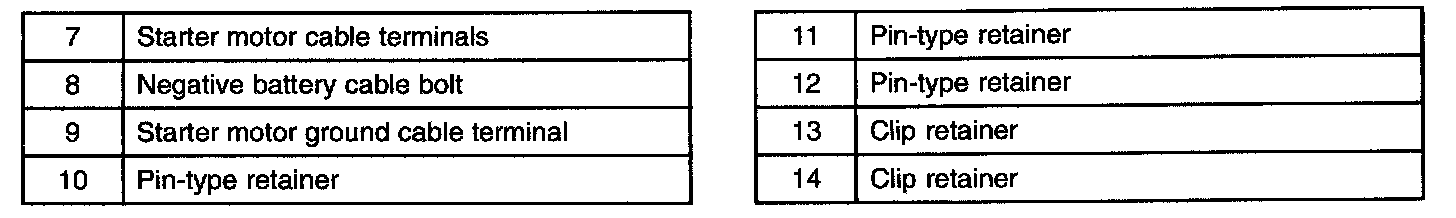

Battery Part 1:

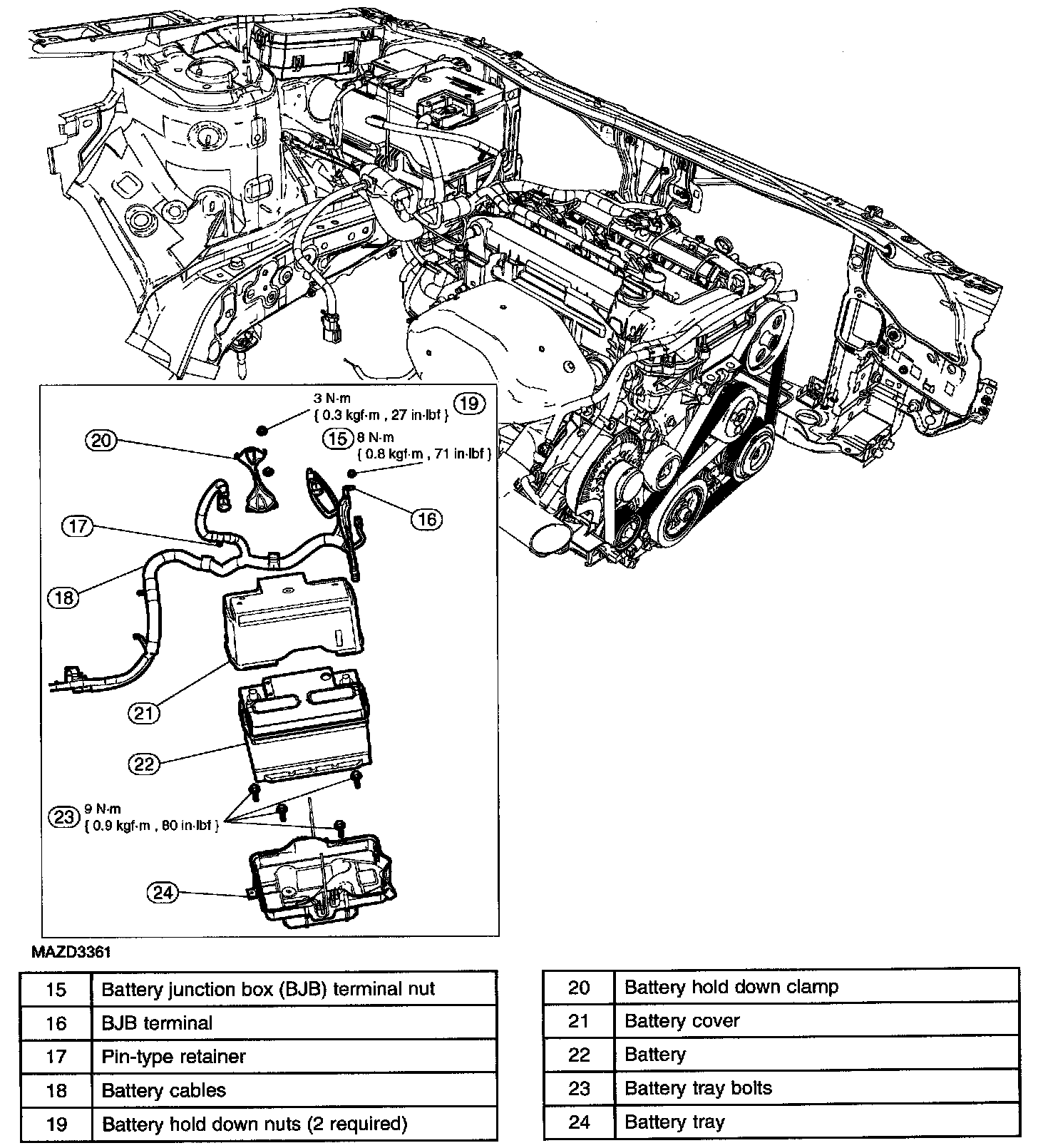

Battery Part 2:

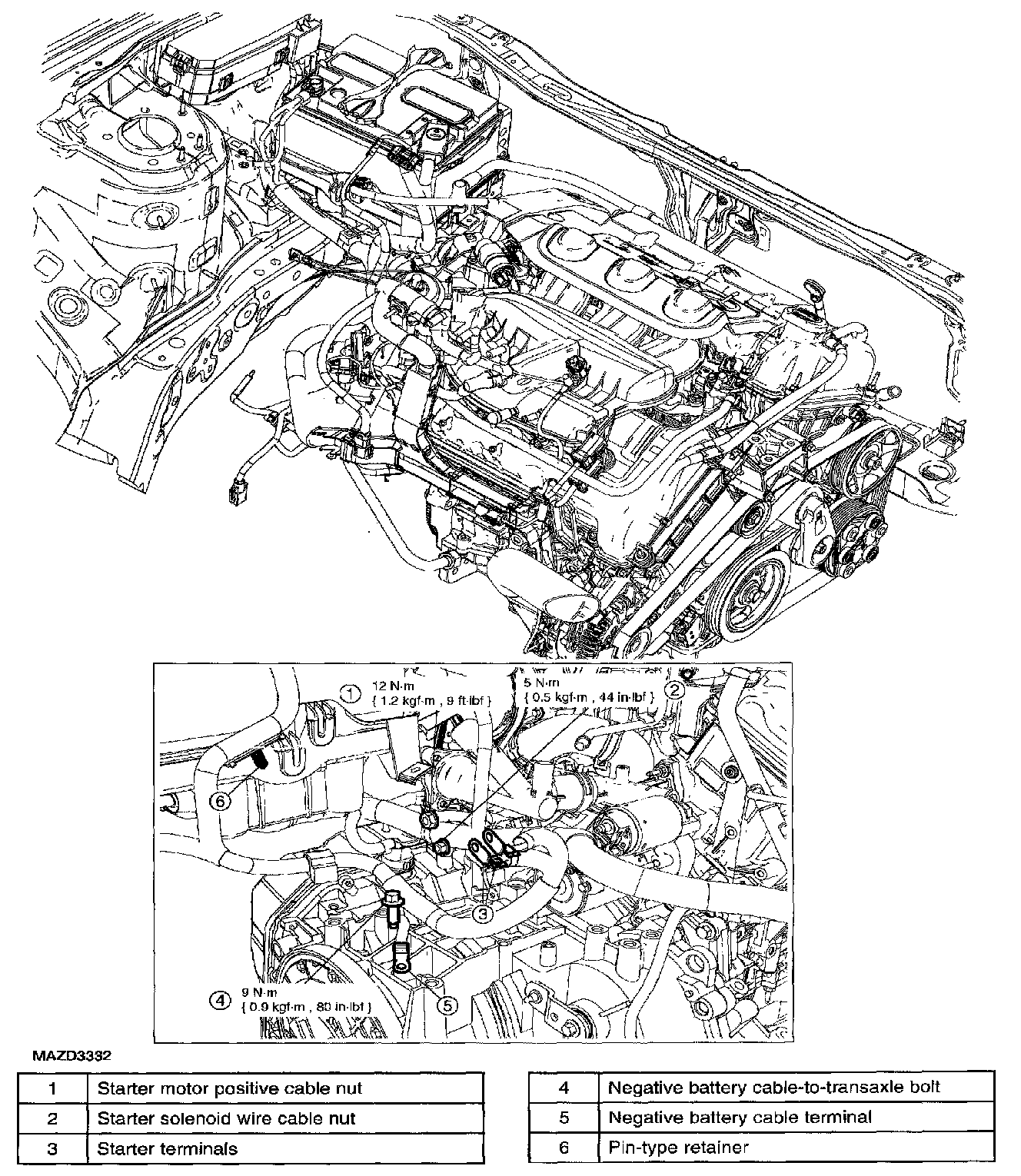

Battery Part 3:

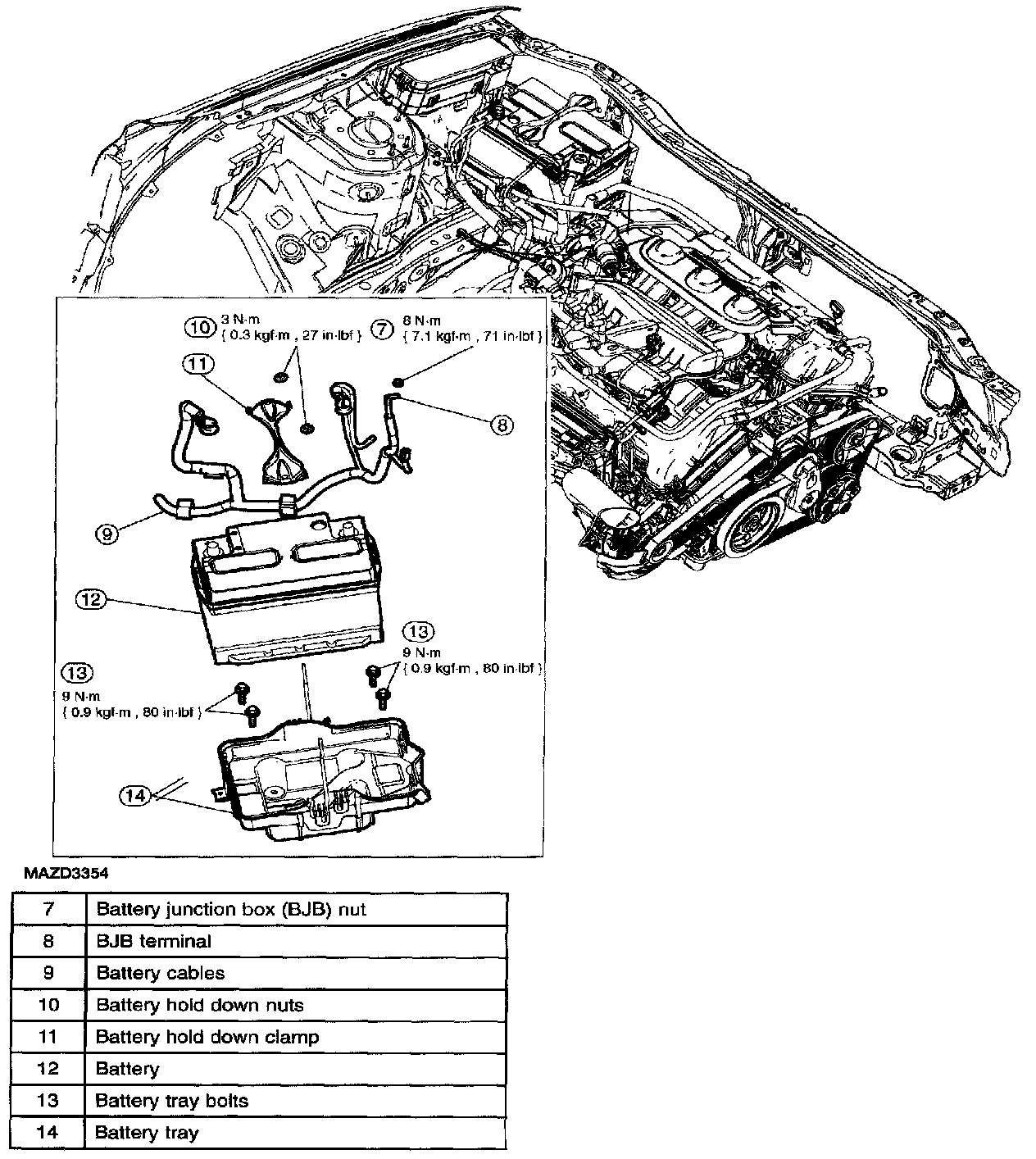

Battery Part 1:

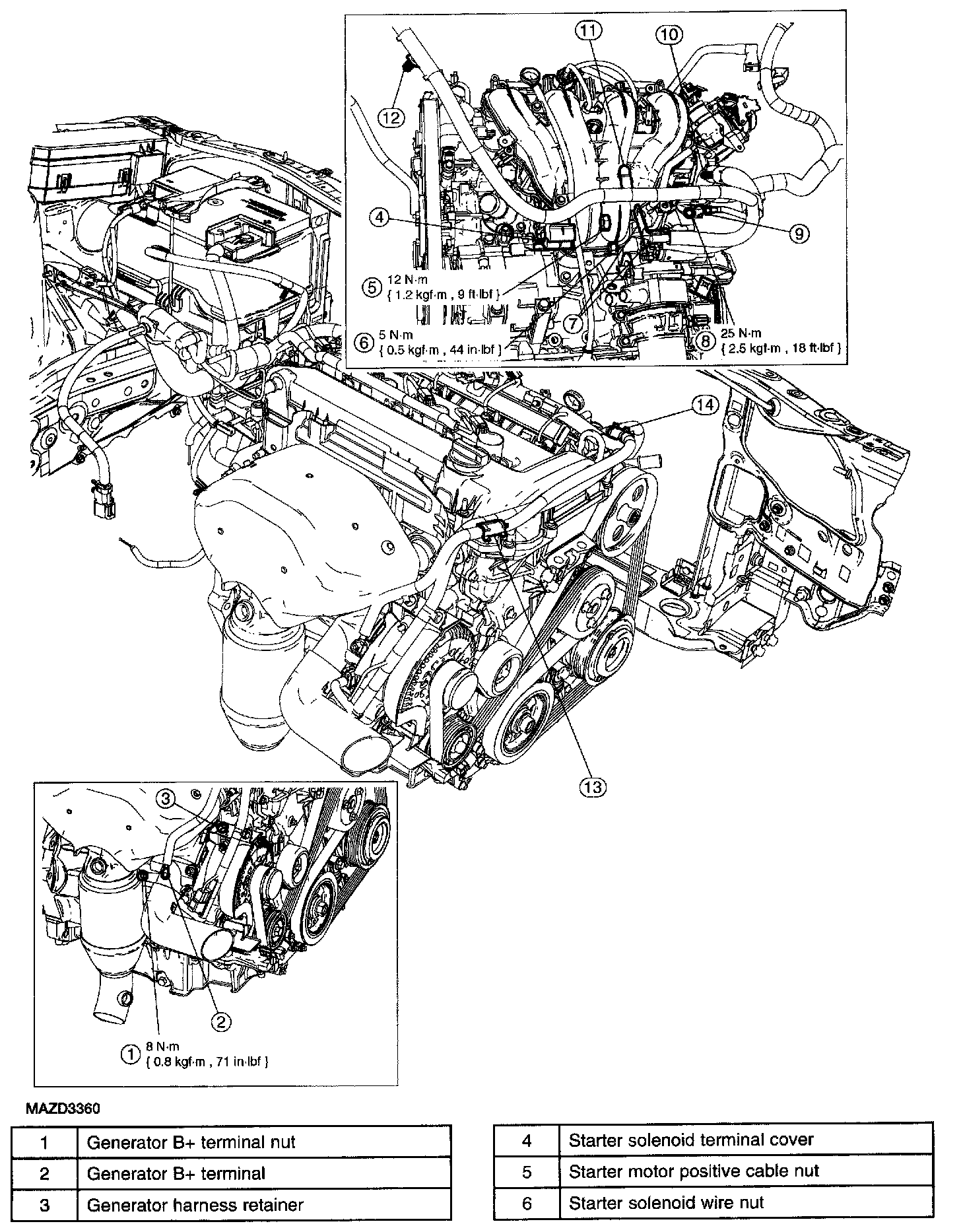

Battery Part 2:
