Battery Removal and Installation

Removal and Installation

1. Disconnect the battery cables.




2. Remove the battery cover.

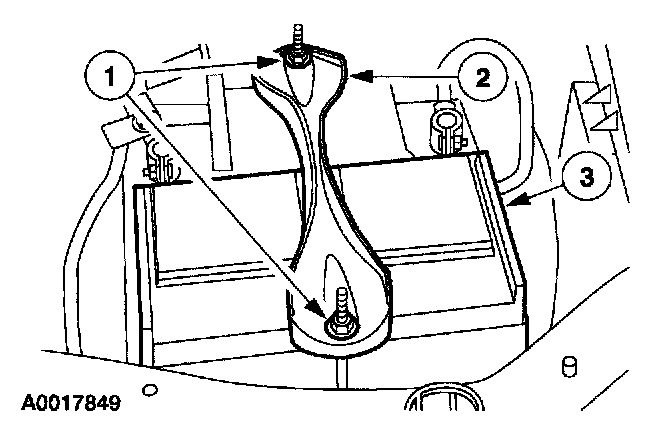

1. Remove the nuts.
2. Remove the hold down.
3. Remove the battery cover.

3. Remove the battery.
4. To install, reverse the removal procedure.
