Initial Inspection and Diagnostic Overview
BATTERYInspection and Verification
1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.

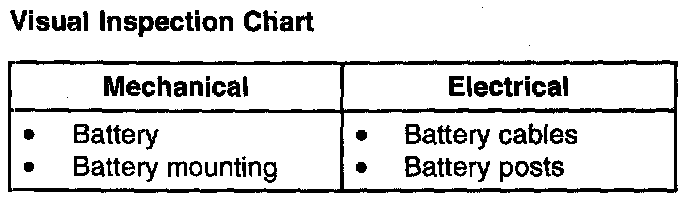

Visual Inspection Chart A:
Visual Inspection Chart
3. If an obvious cause for a concern is found, correct the cause before proceeding to the next step.
4. If the fault is not visually evident, proceed to the pinpoint test.
