Clutch Switch: Service and Repair

CLUTCH PEDAL POSITION (CPP) SWITCH

Removal and Installation

1. Disconnect the negative battery cable.

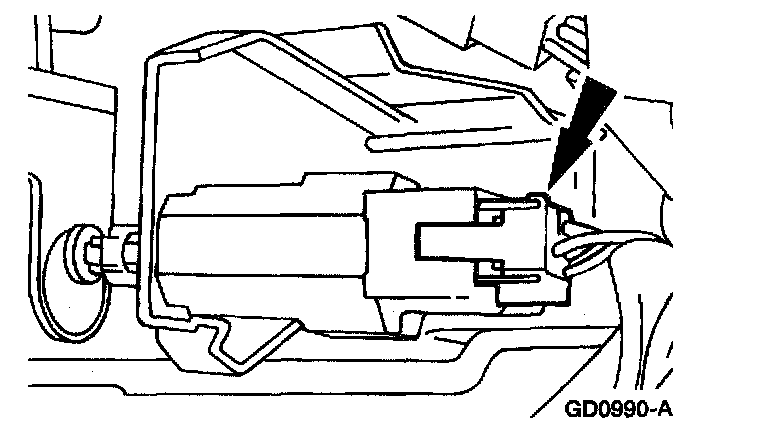

2. Disconnect the clutch pedal position (CPP) electrical connector.

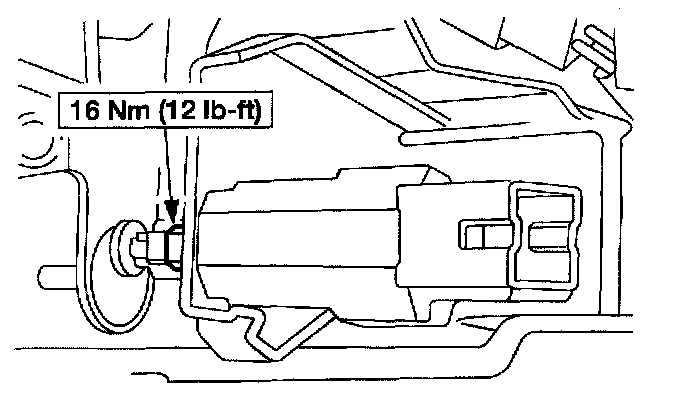

3. Remove the CPP locknut and the switch.
4. To install, reverse the removal procedure.
