Component Tests and General Diagnostics

IGNITION SWITCH COMPONENT TEST

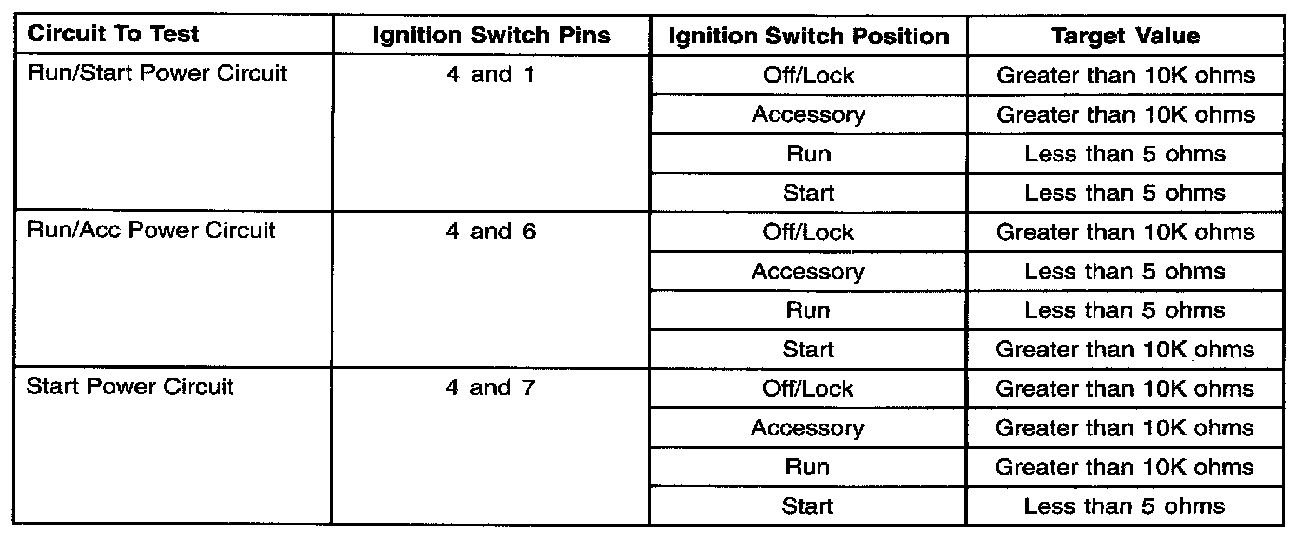

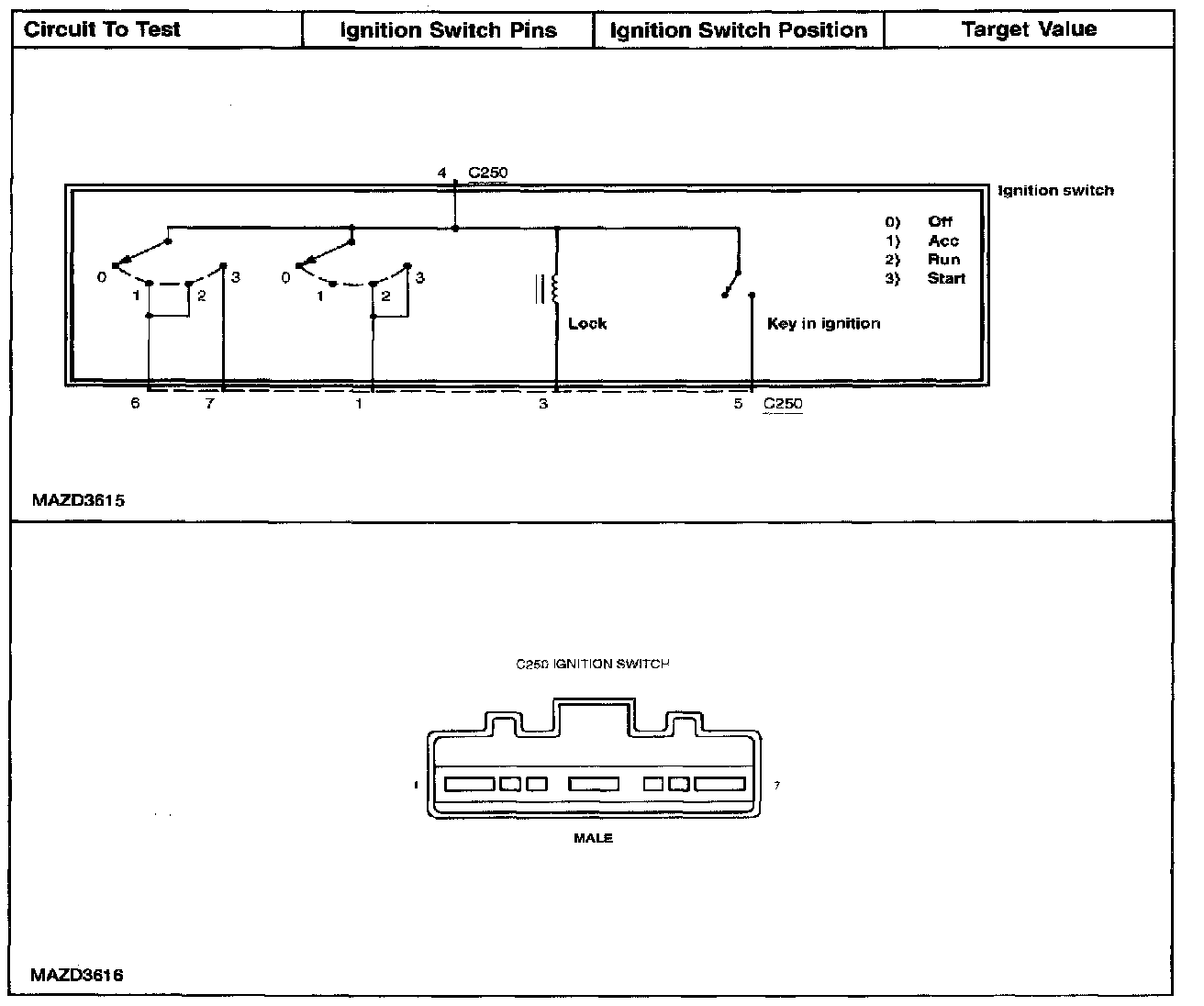

Use the table to test the ignition switch for continuity between the pins on the component side. Disconnect the ignition switch, set the ignition switch to the indicated position and measure the resistance between the indicated pins. If any of the ohm values do not match the target values, install a new ignition switch. See IGNITION SWITCH.
