Shift Cable: Adjustments

SELECTOR LEVER CABLE ADJUSTMENT

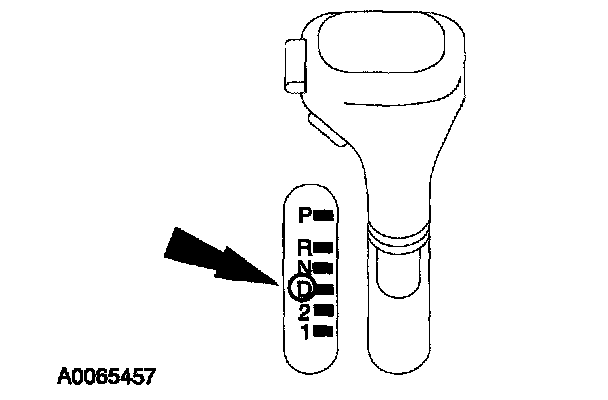

1. Place the floor shift selector lever in the DRIVE position.

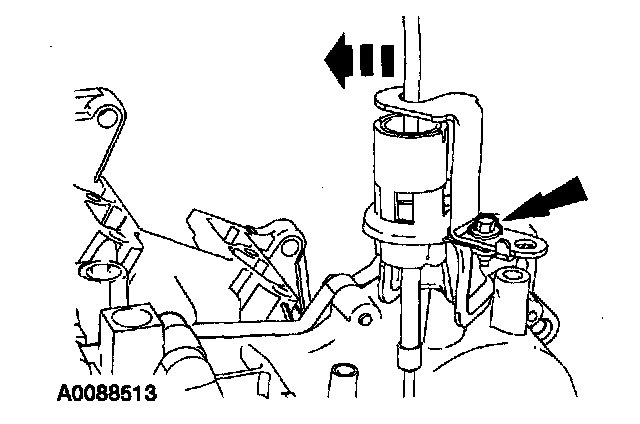

2. Loosen the fastener holding the Z-bracket to the transaxle shift bracket and rotate the Z-bracket counterclockwise to allow access to the shift cable/transaxle bracket interface.

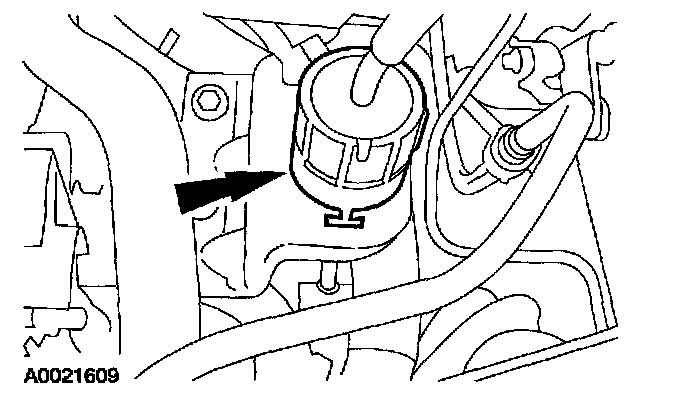

3. Loosen the gearshift cable adjuster to adjust the cable by turning it 1/4 turn counterclockwise.

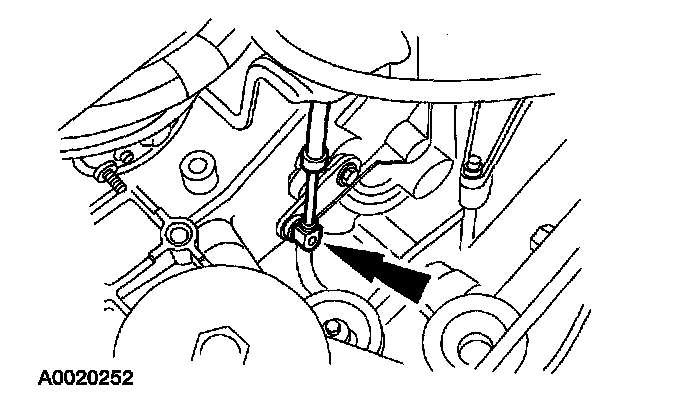

4. Place the transaxle manual control lever in the DRIVE position.
5. Tighten the cable adjustment ring by turning it clockwise 1/4 turn.
6. Rotate the Z-bracket clockwise over the shift cable end fitting and tighten the fastener.
