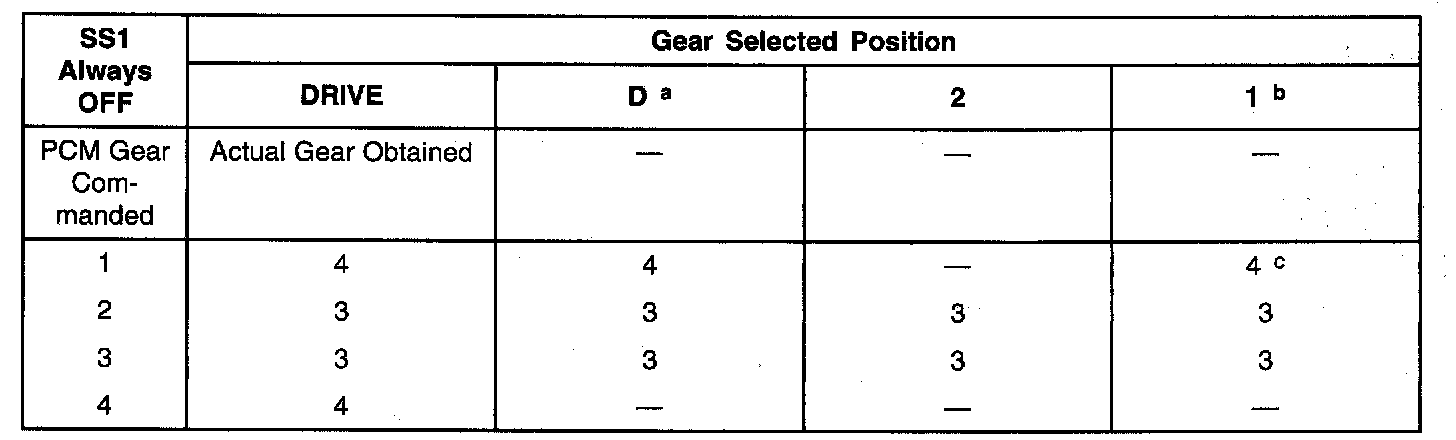

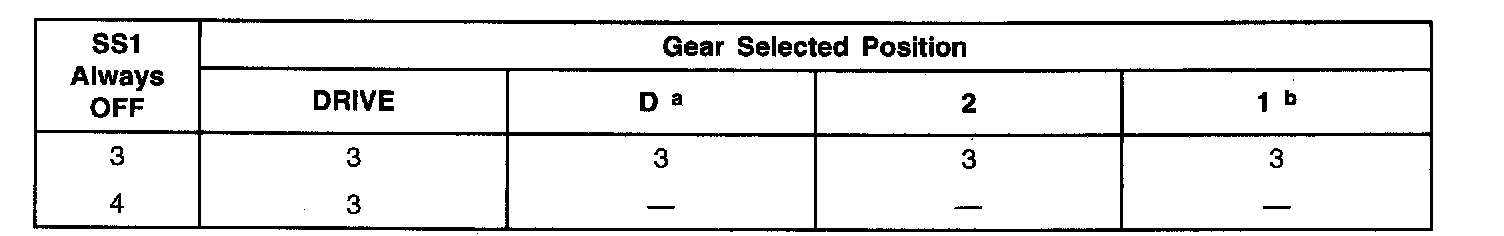

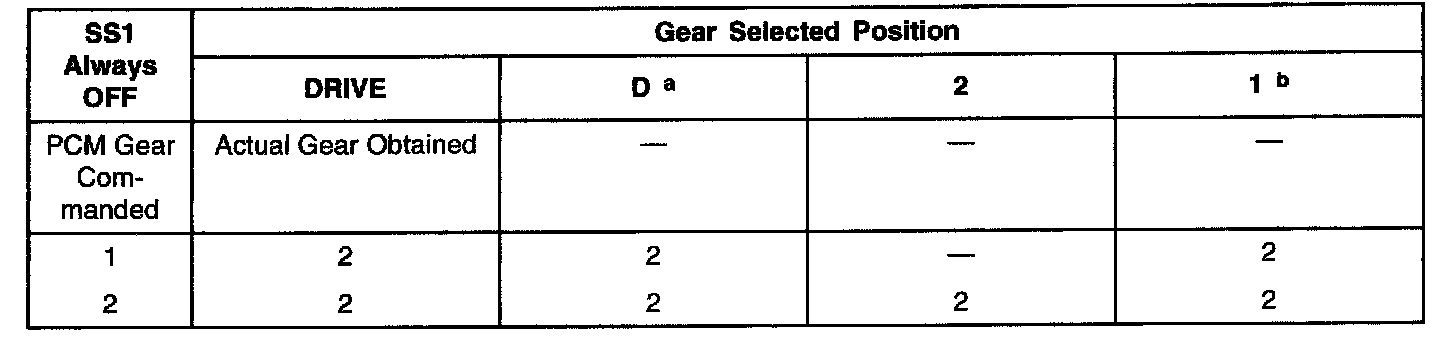

Shift Solenoid Failure Mode Chart Always Off

Shift Solenoid Failure Mode Chart Always OFF








Failed OFF due to PCM and/or vehicle wiring concerns, and/or solenoid electrically stuck off, and/or hydraulically or mechanically stuck off.

a. Overdrive canceled
b. When a manual pull-in occurs above a calibrated speed, the transaxle will not downshift from the higher gear until the vehicle speed drops below this calibrated speed.





a. Overdrive canceled
b. When a manual pull-in occurs above a calibrated speed, the transaxle will not downshift from the higher gear until the vehicle speed drops below this calibrated speed.
c. No forward movement
