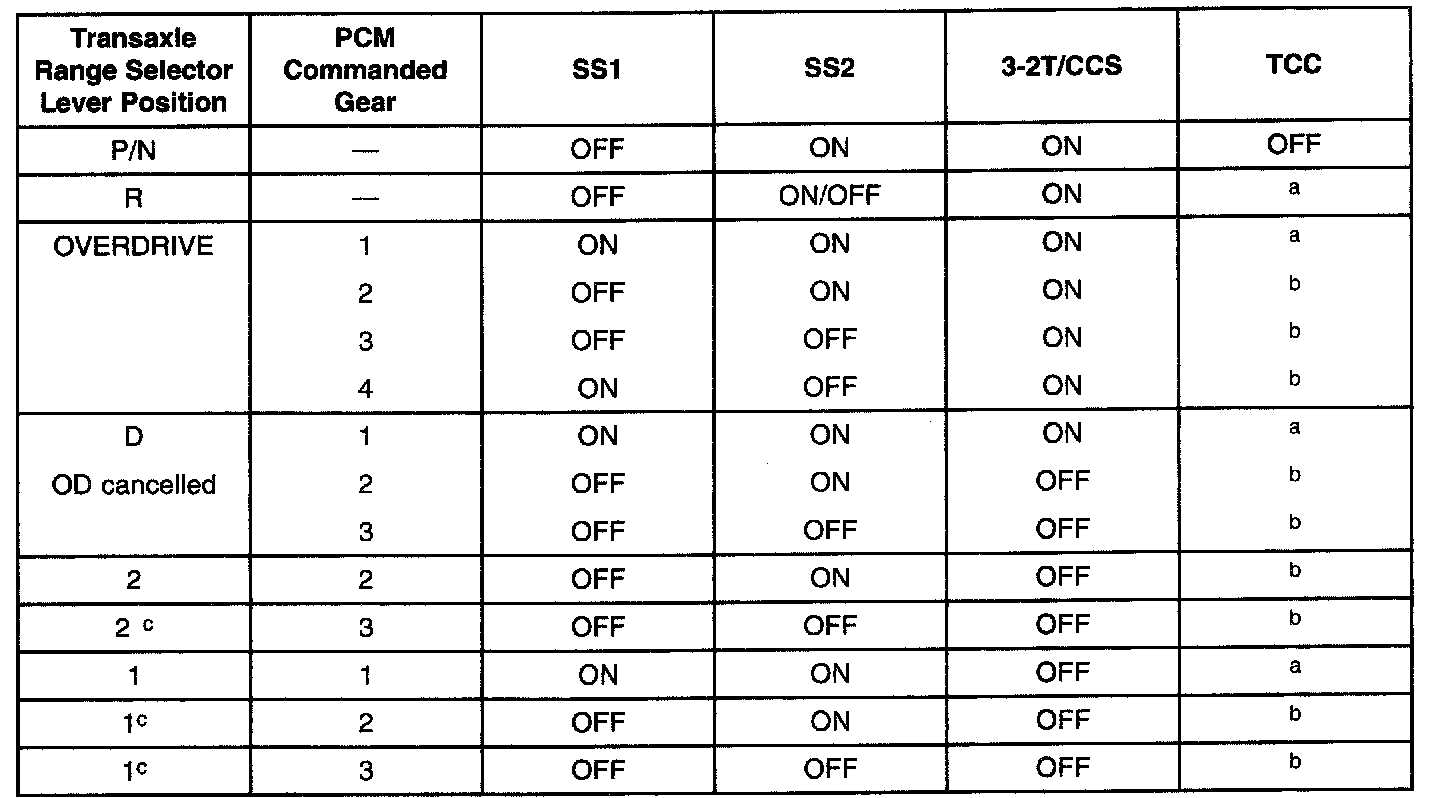

Solenoid Operation Chart
PINPOINT TESTS - NON-OSC EQUIPPED VEHICLESSolenoid Operation Chart
a. Not allowed by hydraulics.
b. Powertrain control module (PCM) commanded.
c. When a manual pull-in occurs above a calibrated speed, the transaxle will not downshift from the higher gear until the vehicle speed drops below this calibrated speed.
