Transaxle LH Support Insulator

TRANSAXLE LH SUPPORT INSULATOR





1. Remove the air cleaner.

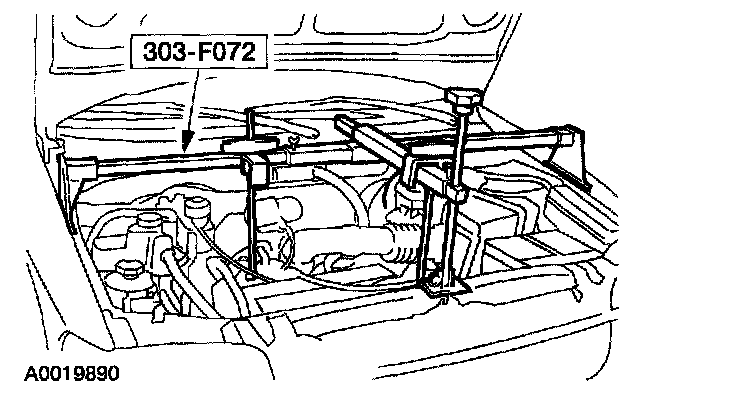

2. Using the special tool, support the engine.

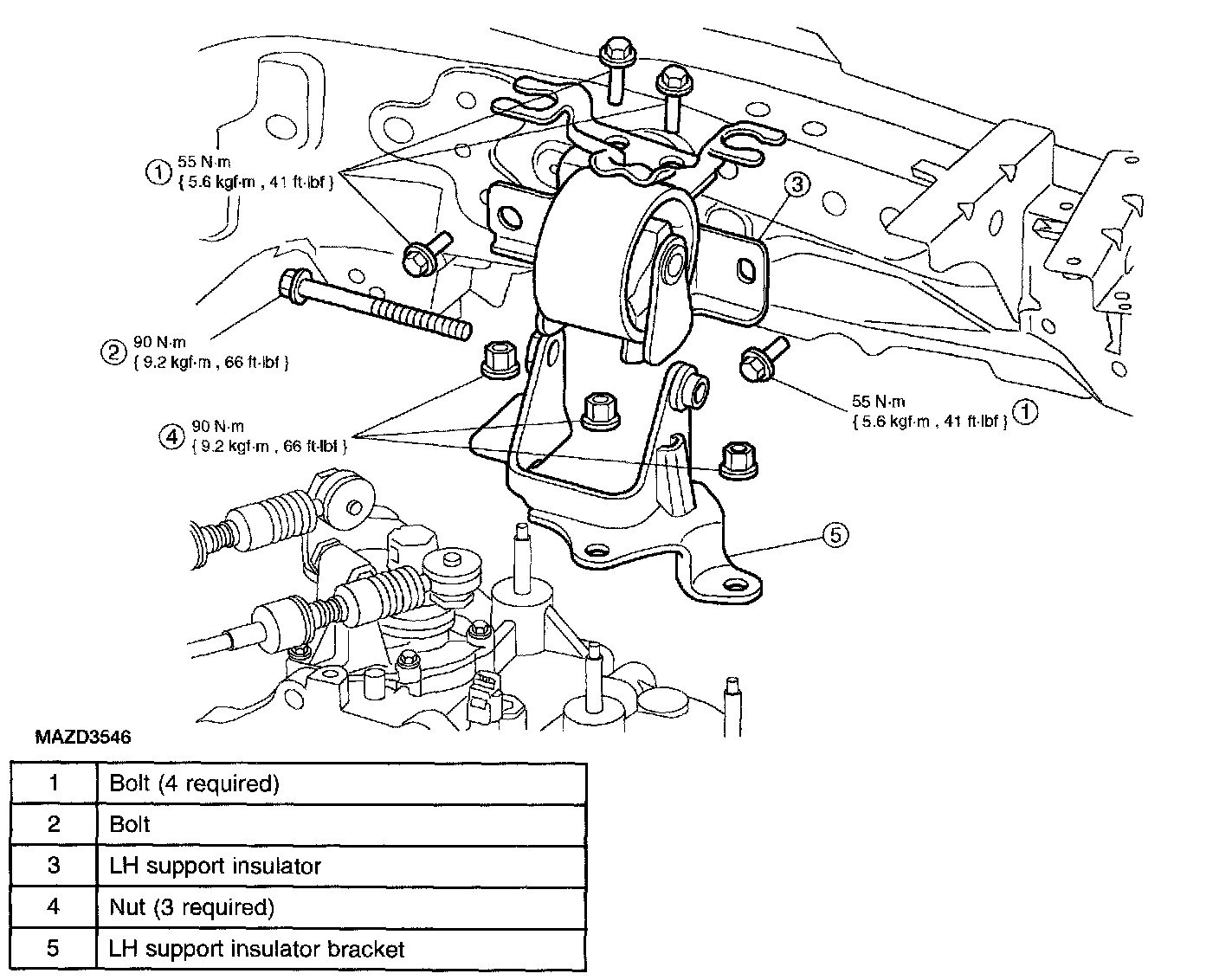

3. Remove the LH support insulator.
1. Remove the bolts.
2. Remove the insulator cross bolts.
3. Remove the LH support insulator.
4. Remove the nuts.
5. Remove the insulator bracket.
4. To install, reverse the removal procedure.
