Transaxle Rear Support Insulator

TRANSAXLE REAR SUPPORT INSULATOR

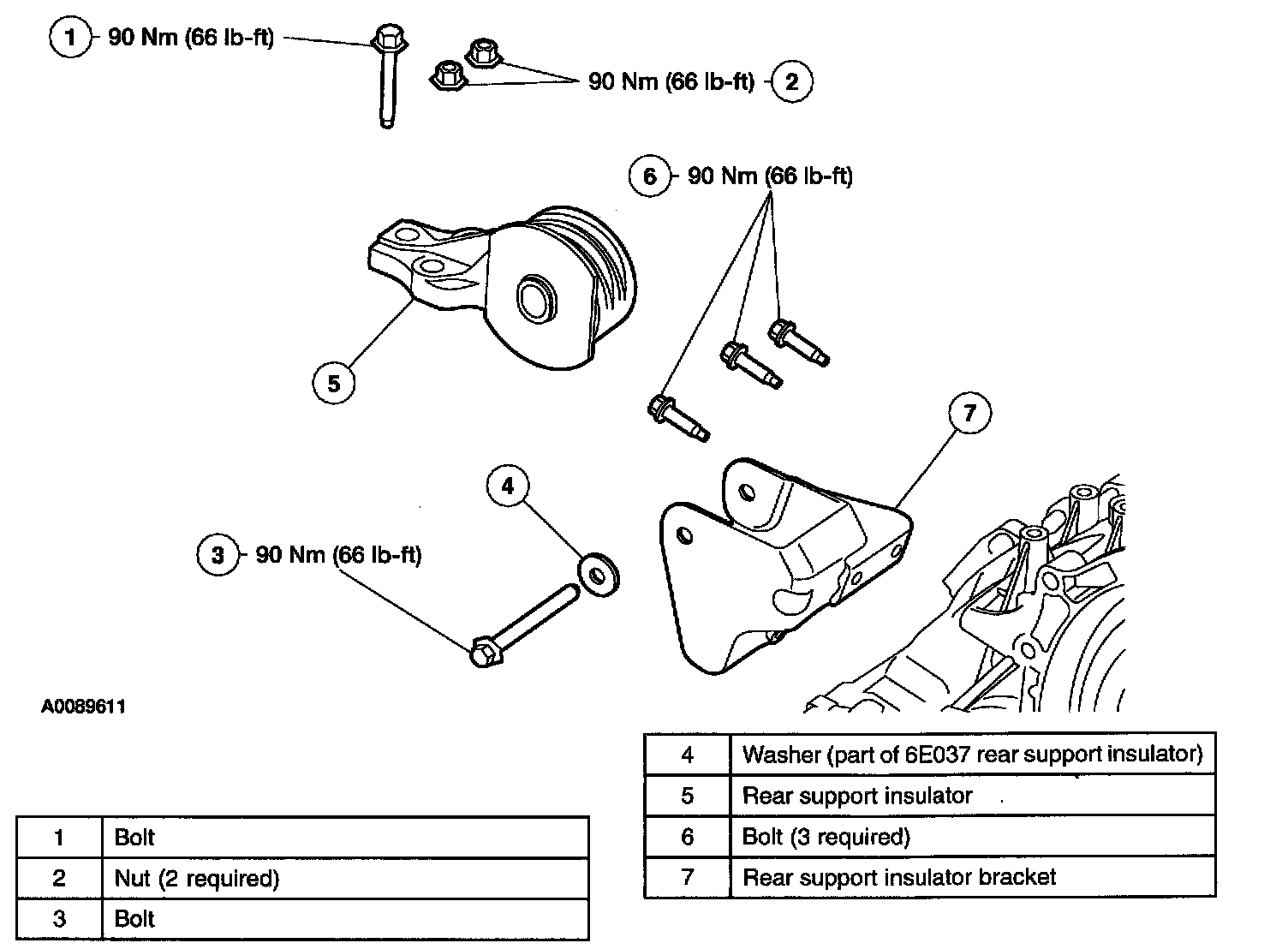

1. Remove the parts in the order indicated in the following illustration and table.
2. To install, reverse the removal procedure.
