Transaxle Support Insulator - Lower, Front

TRANSAXLE SUPPORT INSULATOR - LOWER, FRONT

Removal and Installation

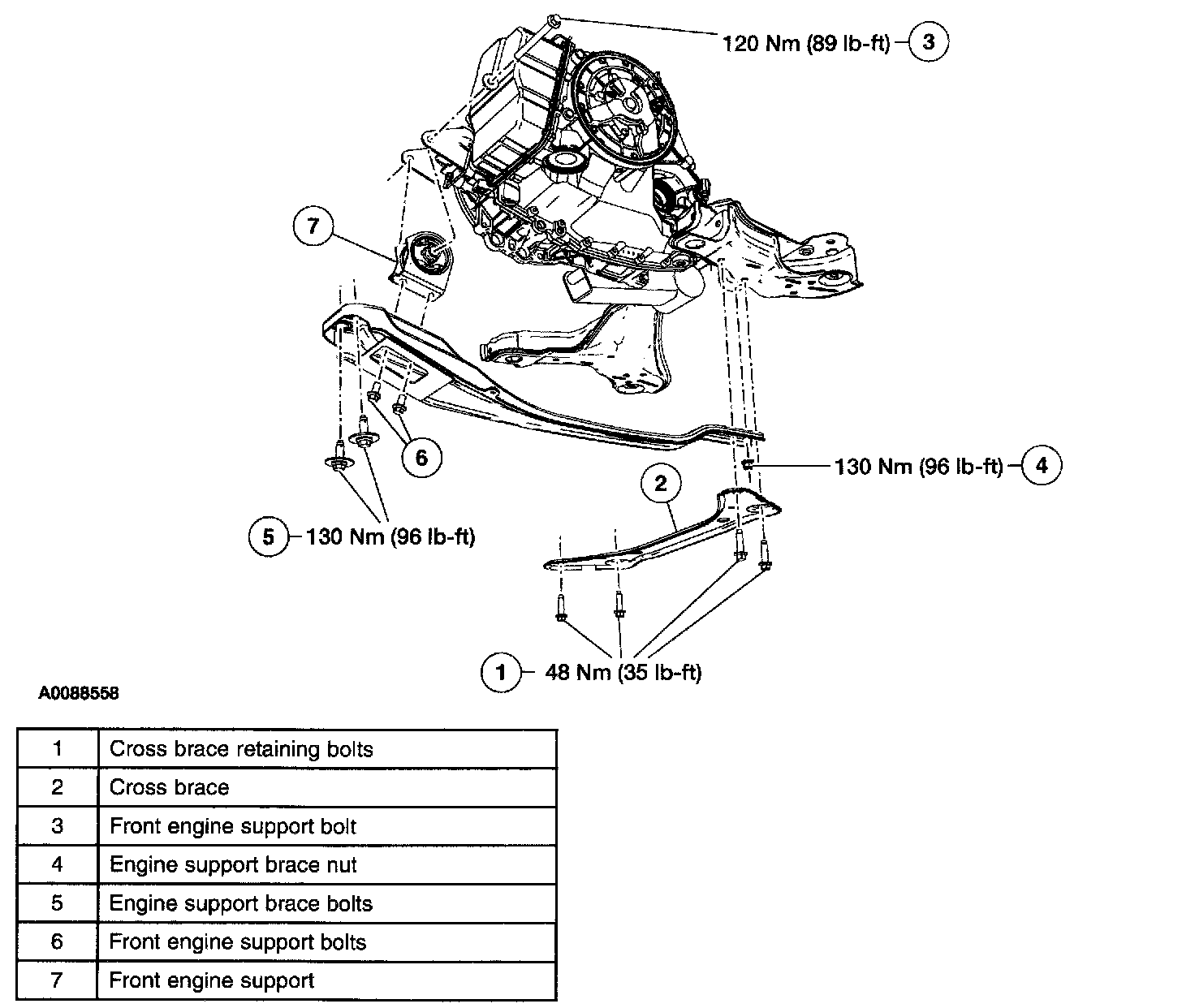

1. With the vehicle in NEUTRAL, position it on a hoist.

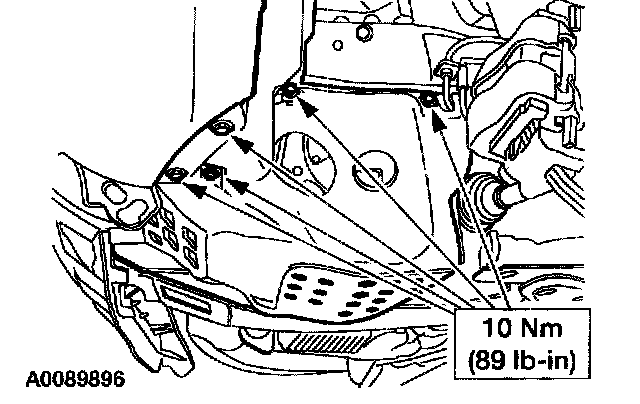

2. Remove the seven retainers and the LH splash shield.

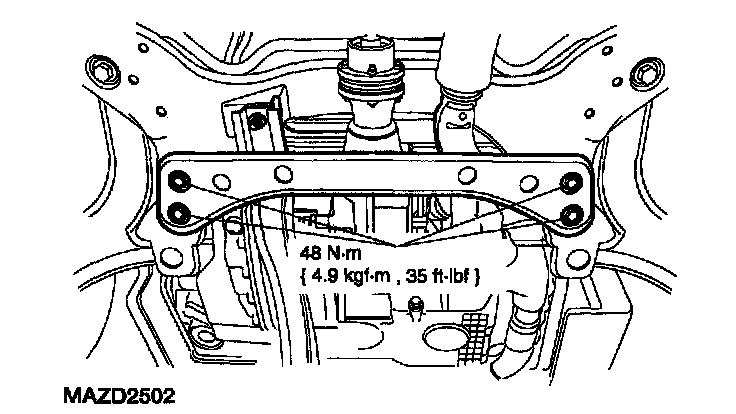

3. Remove the cross brace.
4. Remove the insulator cross bolt.

Note: The engine support brace will be -removed with the insulator attached.

5. Remove the engine support brace bolts and nut.
6. Remove the 2 bolts and the insulator.
7. To install, reverse the removal procedure.
