Pinpoint Test 1

PINPOINT TEST 1: ALL POWER WINDOWS ARE INOPERATIVE

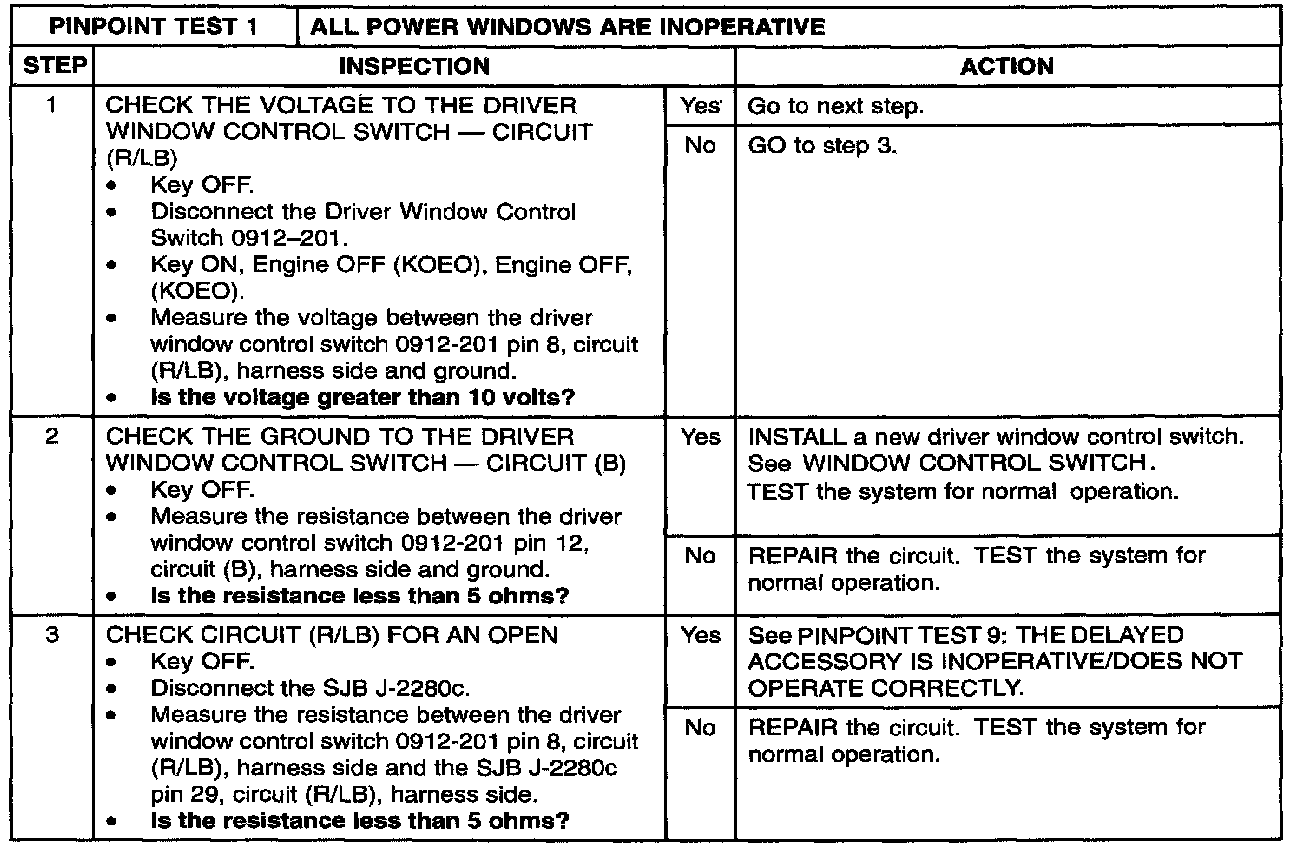

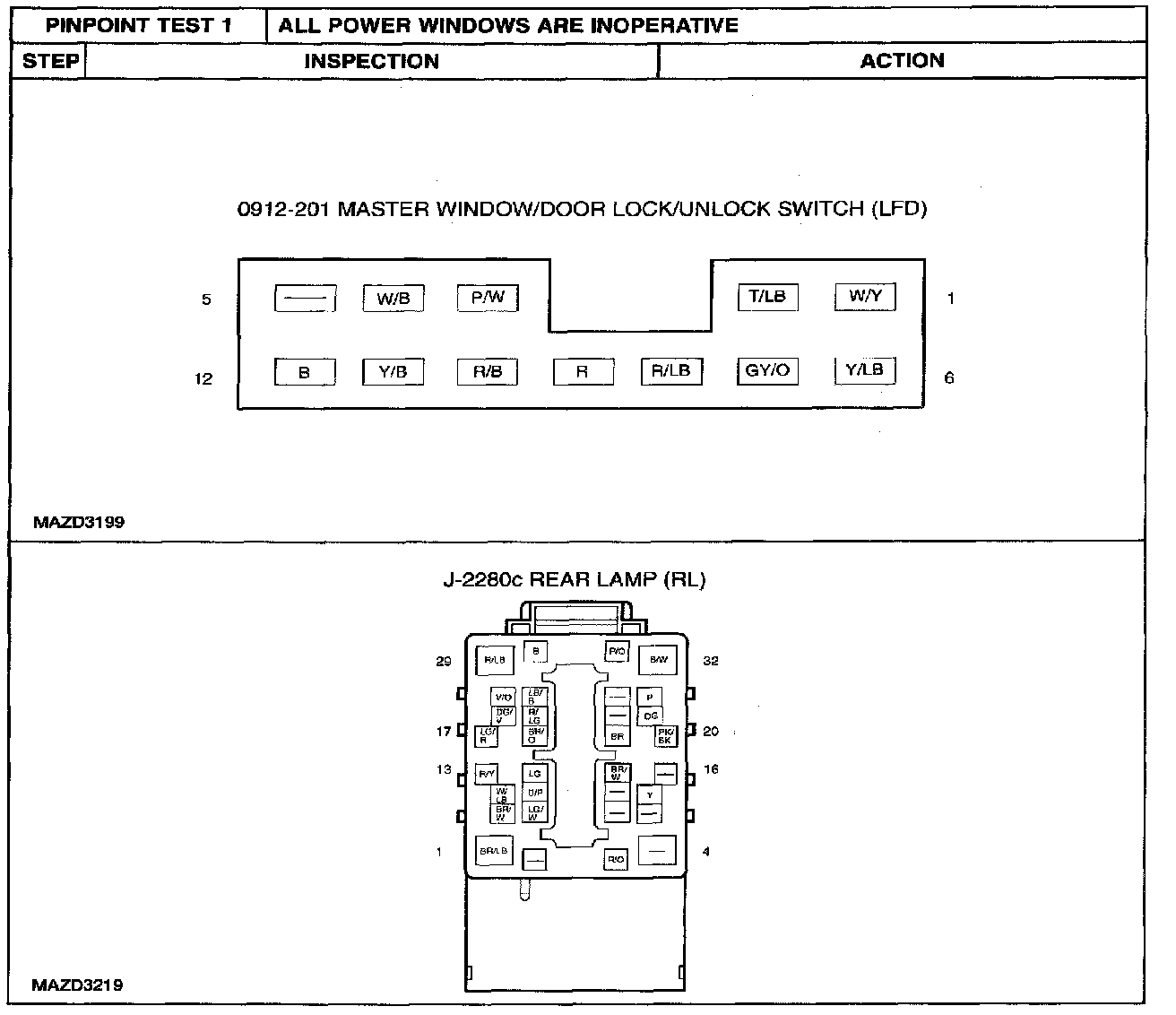

Step 1 - 3:

Normal Operation
The SJB activates the accessory delay relay by grounding the coil side of the relay. The accessory delay relay then provides voltage to all of the window control switches through circuit (R/LB). The driver window control switch is grounded through circuit (B).

Possible Causes
- circuit (R/LB) open
- circuit (B) open
- accessory delay relay
- driver window control switch
- SJB
