Pinpoint Test 5

PINPOINT TEST 5: A SINGLE POWER WINDOW IS INOPERATIVE - RIGHT REAR

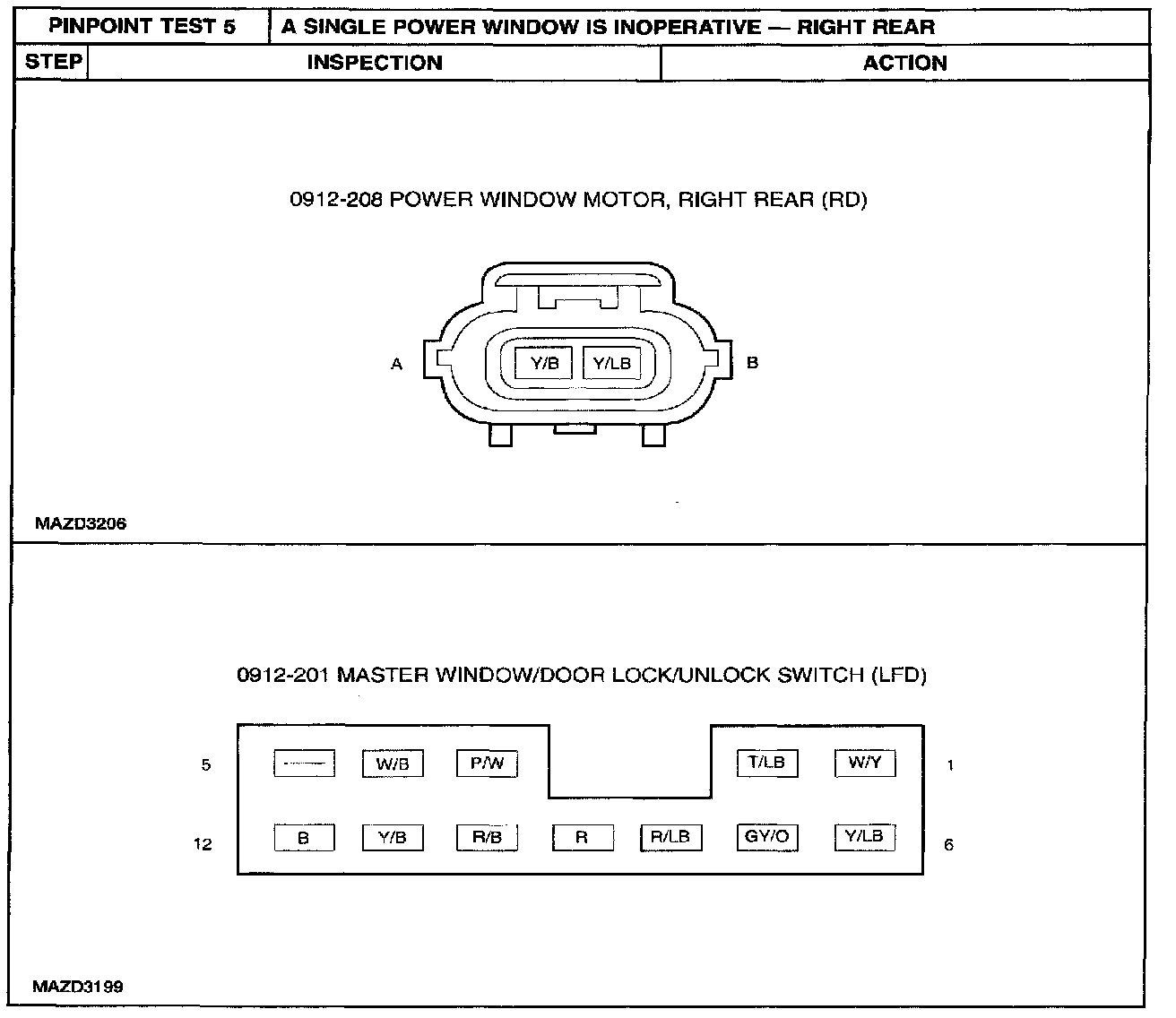

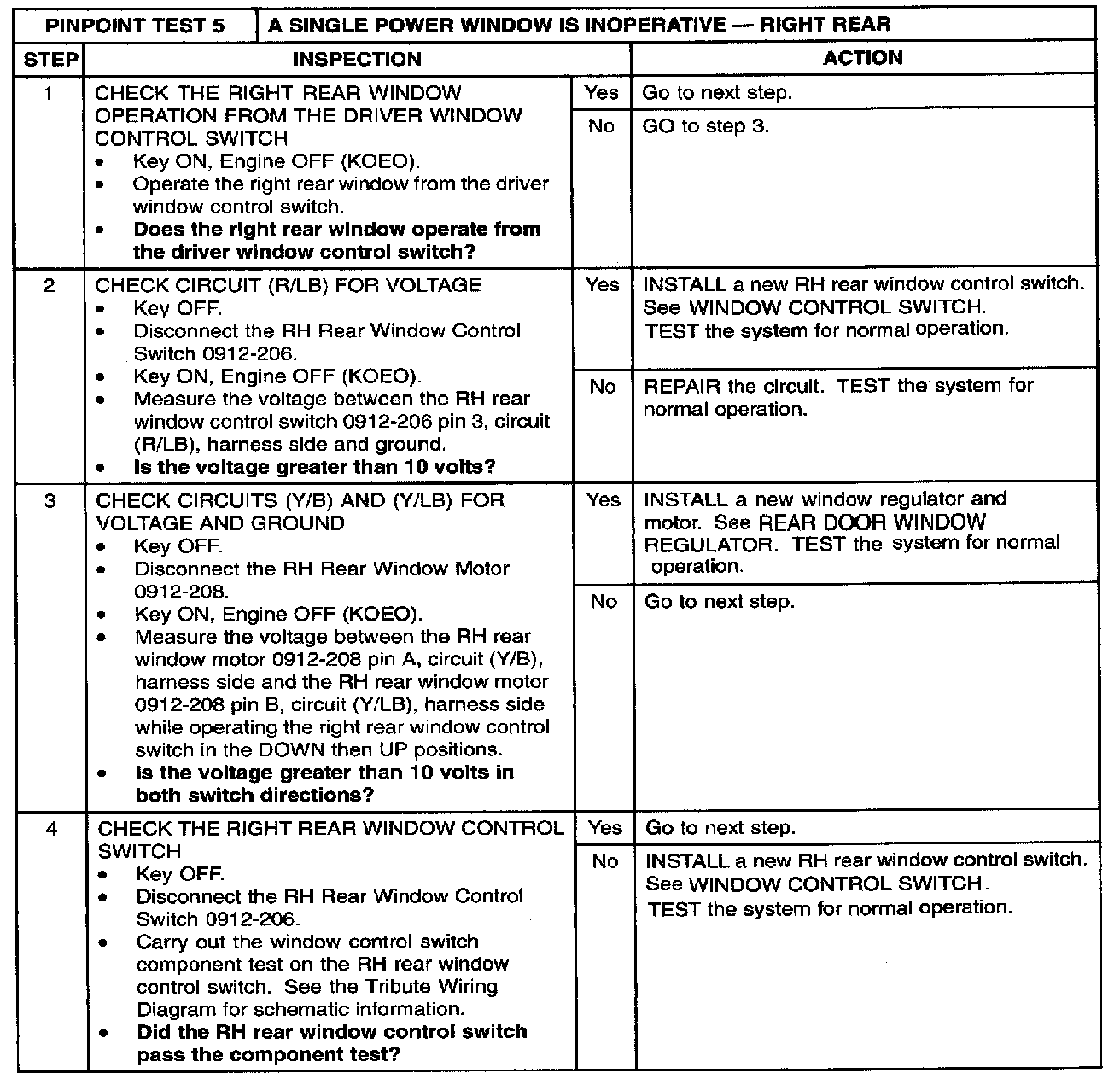

Step 1 - 4:

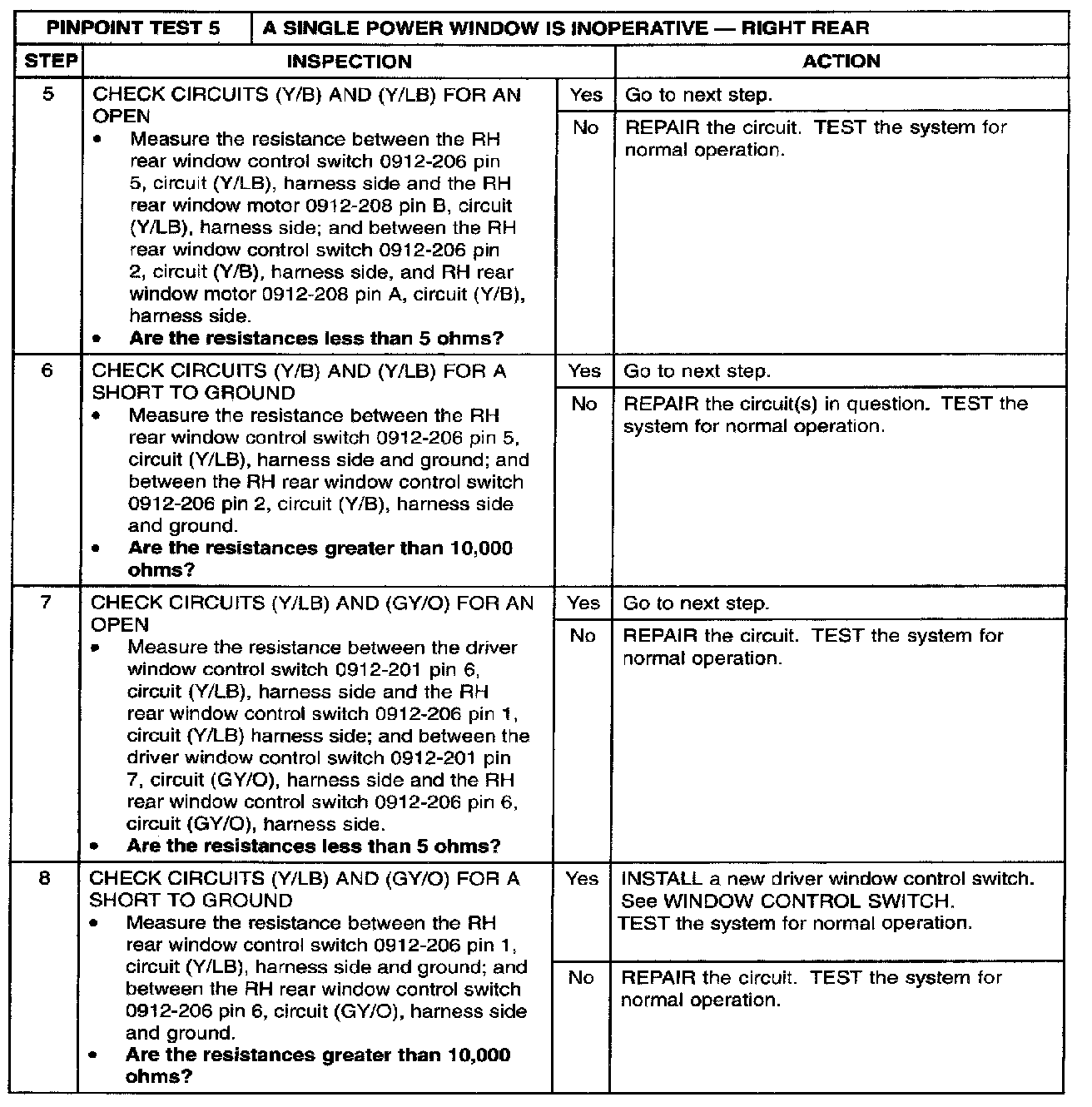

Step 5 - 8:

Normal Operation
The RH rear window control switch receives power from the accessory delay relay through circuit (R/LB). The RH rear window control switch provides power to the RH rear window motor through circuit (Y/B) and ground through circuit (Y/LB) to operate the RH rear window DOWN; and power through circuit (Y/LB) and ground through circuit (Y/B) to operate the RH rear window UP. When operating the RH rear window using the driver window control switch, power is sent to the RH rear window control switch through circuit (Y/LB) and ground through circuit (GY/O) to operate the RH rear window DOWN; and power through circuit (GY/O) and ground through circuit (Y/LB) to operate the RH rear window UP.

Possible Causes
- circuit (R/LB) open
- circuit (Y/LB) open or short to ground
- circuit (GY/O) open or short to ground
- circuit (Y/B) open or short to ground
- circuit (Y/LB) open or short to ground
- driver window control switch
- RH rear window control switch
- RH rear window motor
