Front Door Window Glass: Service and Repair

Front Door Window Glass






NOTE: RH side is shown. LH side is similar.

NOTE: If removing the door glass top run, remove the sail panel and disconnect the electrical connector.

NOTE: If removing the window regulator and motor, manually raise the front door window glass to the full up position in the front door window run and secure it in place.

1. Remove the front door trim panel.

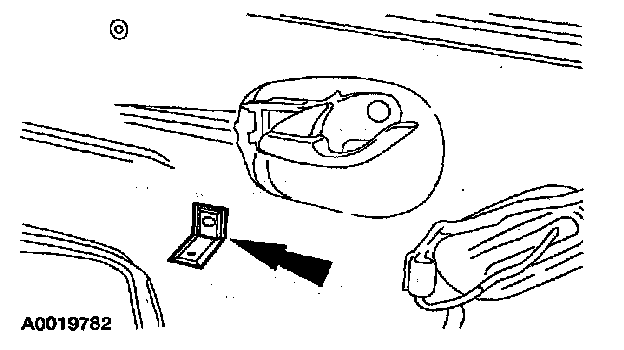

2. Remove the screw and the door trim panel bracket.

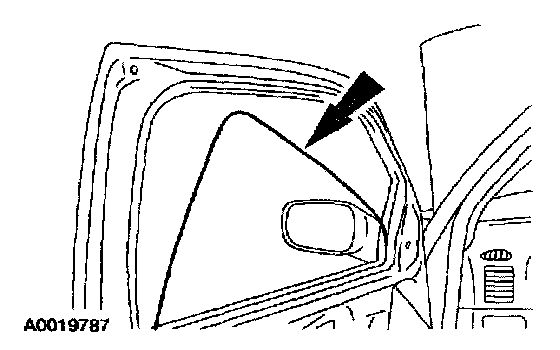

3. Position the watershield aside.

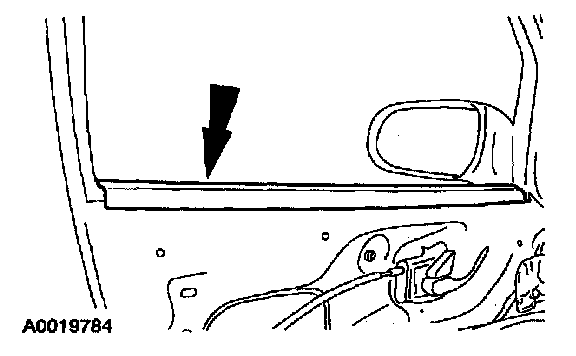

4. Remove the front door interior glass weatherstrip.

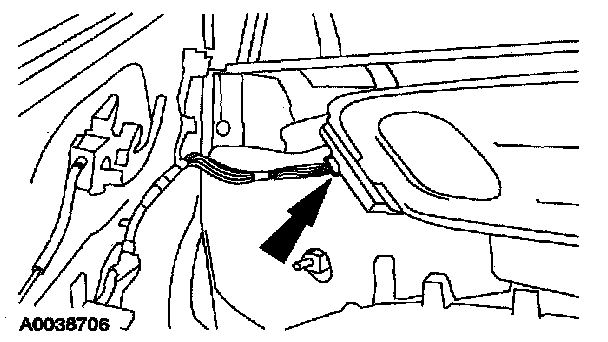

5. Connect the window control switch to the door harness.
6. Connect the battery.




7. Lower the front door window glass to gain access to the screws.
8. Disconnect the battery.
9. Disconnect the window control switch.

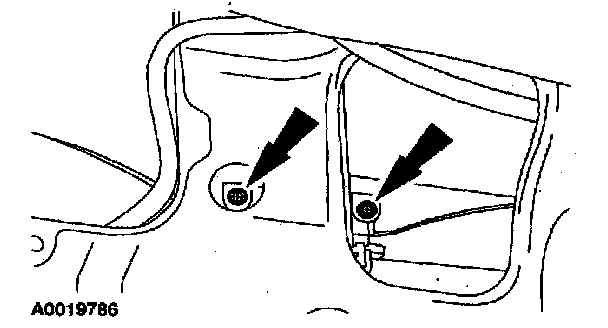

10. Remove the front door window glass screws.




11. Remove the front door window glass.

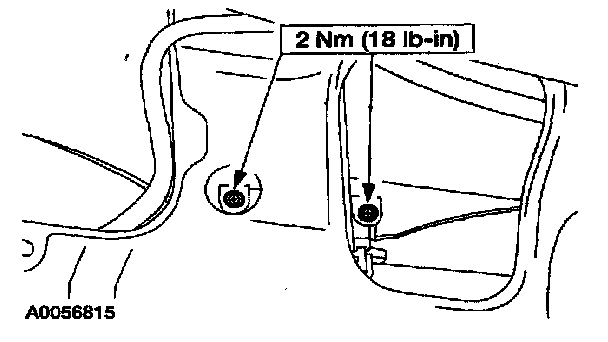

12. To install, reverse the removal procedure.
- Cycle the front door window glass to make sure of correct door window glass engagement.
